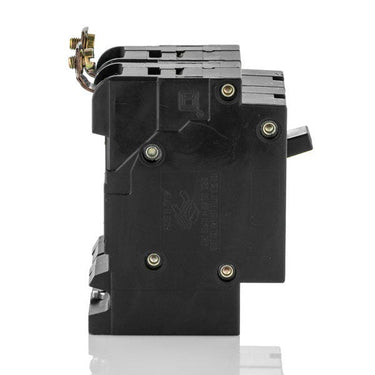

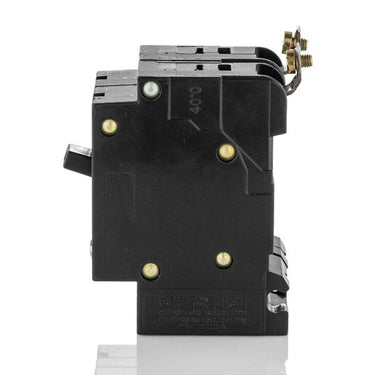

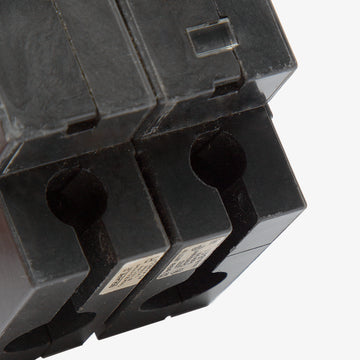

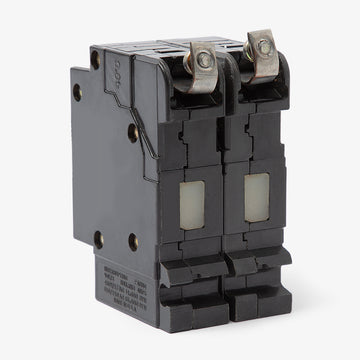

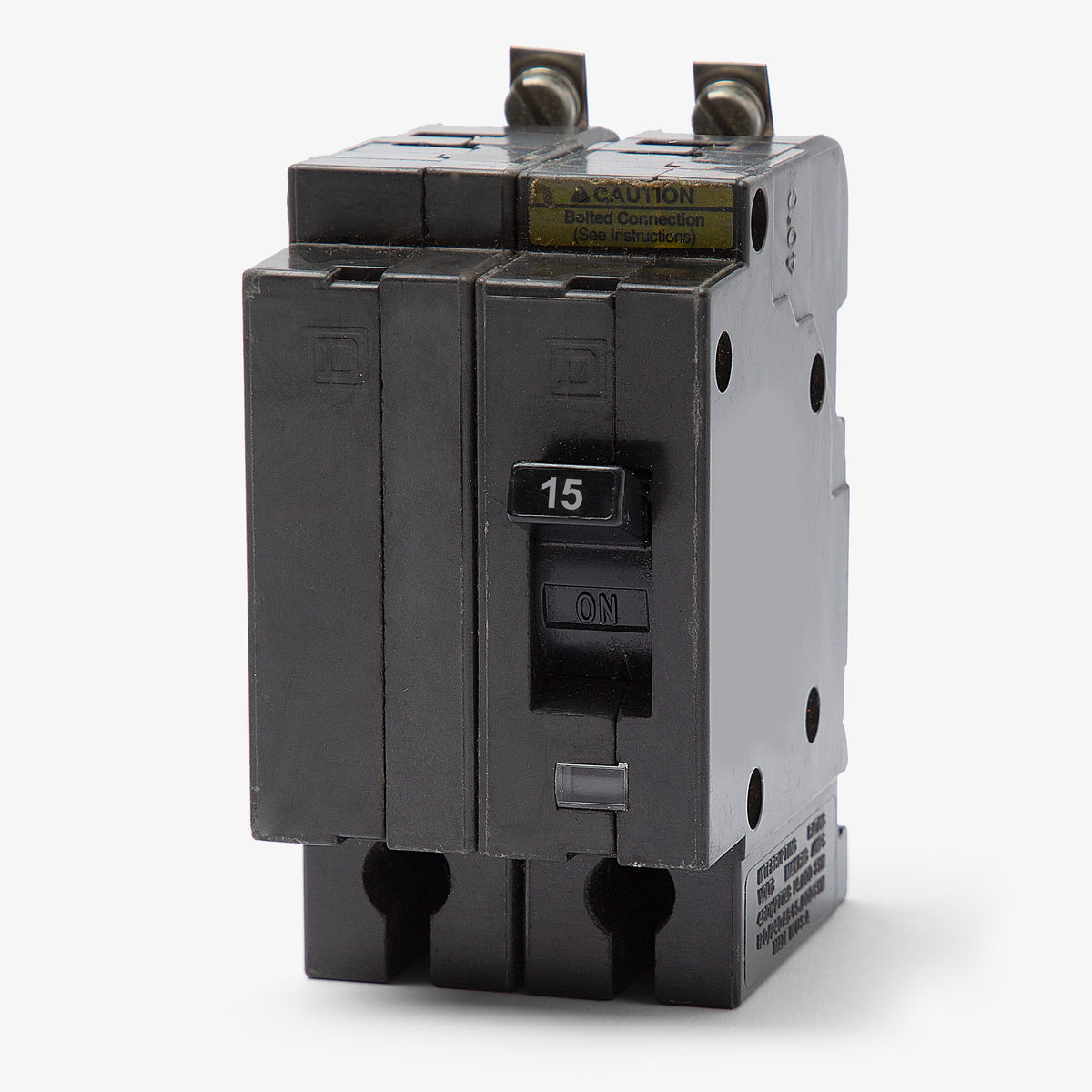

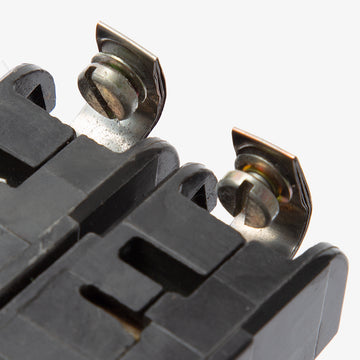

Square D EHB24015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Square D
EHB24015
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB24015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB24015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB24015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24015 |
| Series | EHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB24015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24015-R |
| Series | EHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for older commercial systems, this 15A two-pole molded case circuit breaker provides reliable long-time and instantaneous trip functions. It is built to restore power safely in aging industrial environments. This unit bolts into legacy Square D NEHB panelboards. Because modern EDB series equivalents require a complete changeout to an NF panelboard, this breaker is critical for maintaining existing NEHB enclosures. Rated 14kAIC at 480Y/277VAC, it includes Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24015 |
| Series | EHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the Square D EHB24015?
The EHB24015 is designed exclusively for use in legacy Square D NEHB panelboards. It features a bolt-on connection that secures directly to the panelboard bus.
Is the Square D EHB24015 circuit breaker obsolete?
Yes, the Square D EHB series is obsolete and no longer manufactured by Schneider Electric. However, it remains available through specialized distributors to maintain existing NEHB panelboard infrastructure.
Is the EHB24015 circuit breaker HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment branch circuits.
Can I install the EHB24015 in a Square D NF panelboard?
No, the EHB24015 is only compatible with legacy NEHB panelboards. Modern Square D NF panelboards require EDB, EGB, or EJB series circuit breakers and will not accept EHB frames.
What is the difference between the EHB24015 and EDB24015?
The EHB24015 is a legacy breaker designed specifically for NEHB panelboards. The EDB24015 is a current production breaker designed for NF panelboards. Because the bus connections differ, they are not interchangeable.
