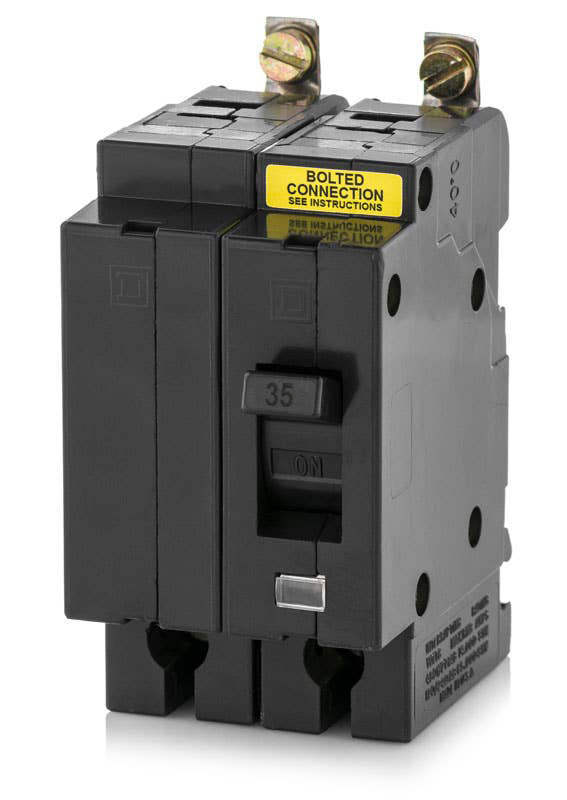

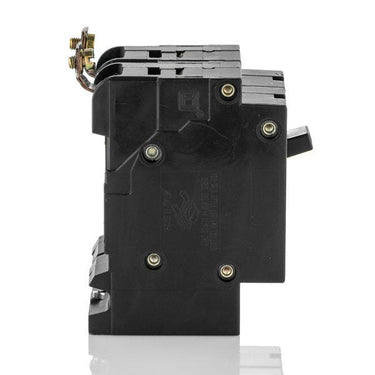

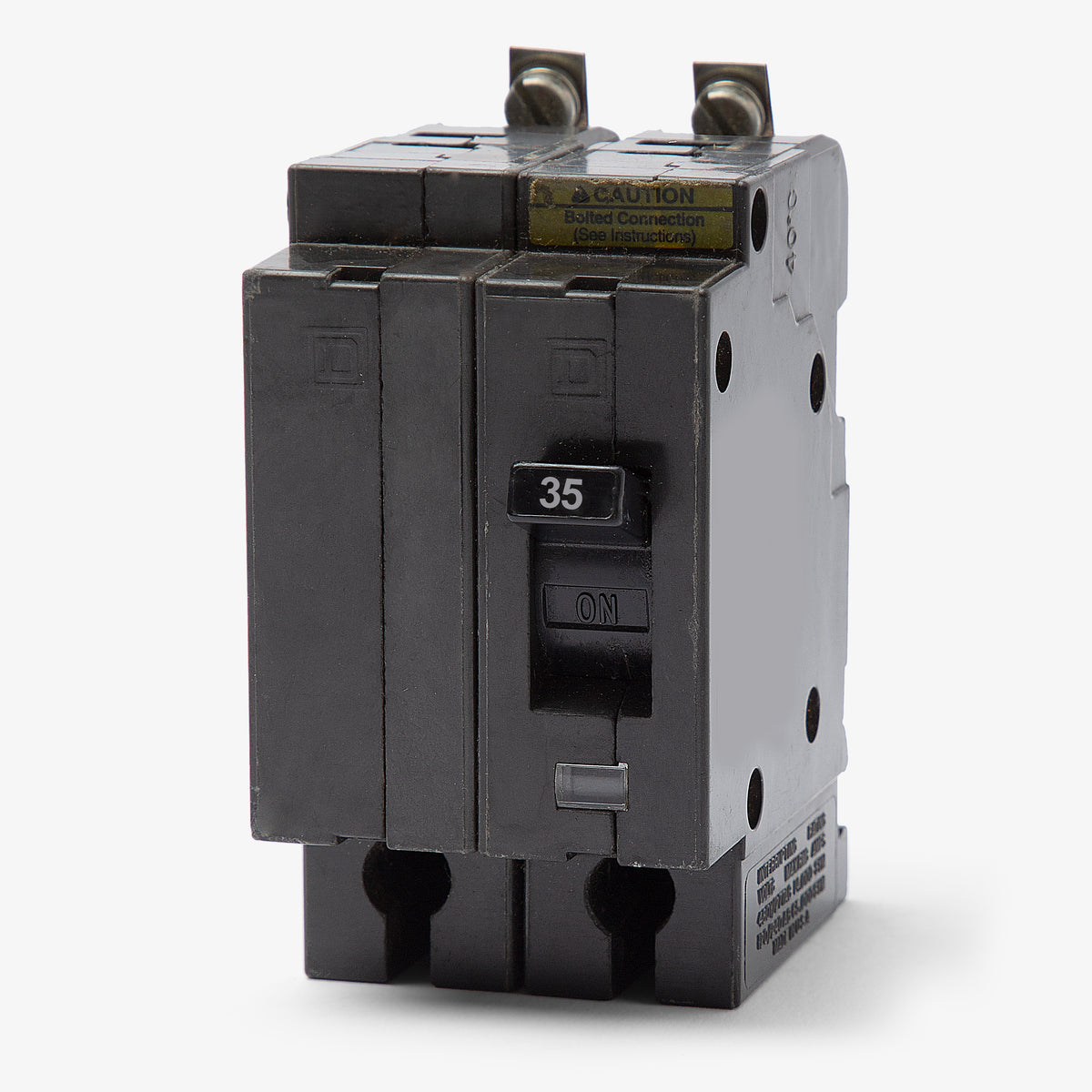

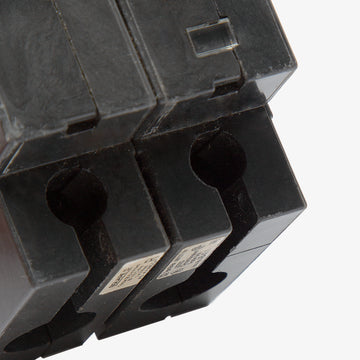

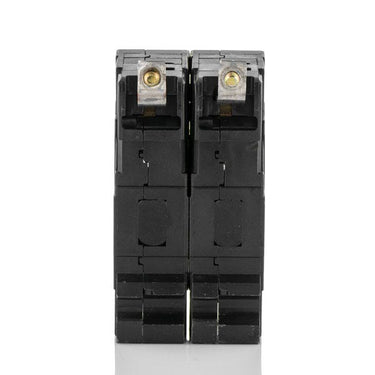

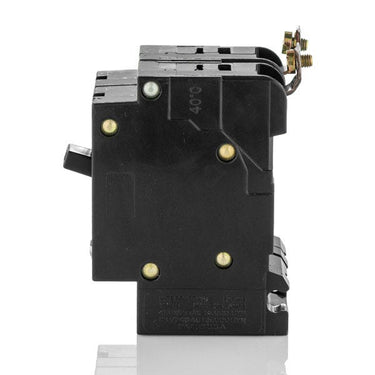

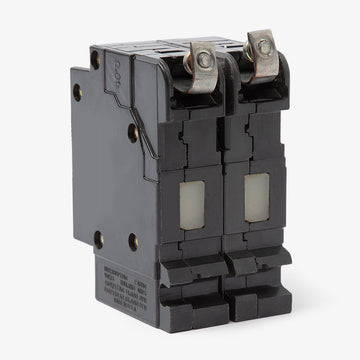

Square D EHB24035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Square D
EHB24035
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB24035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB24035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D EHB24035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D EHB24035 - 35A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Providing 35 amps of thermal-magnetic protection, the Square D EHB24035 is a 2-pole molded case circuit breaker. It is built to handle commercial and industrial electrical loads with a 14kAIC interrupting capacity at 480Y/277VAC. This bolt-on MCCB mounts into obsolete Square D NEHB panelboards. Because newer EDB breakers only fit NF panels, this E-frame unit is essential for maintaining existing NEHB infrastructure. It features a Visi-Trip indicator for fast troubleshooting and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the EHB24035 circuit breaker?
This breaker is designed exclusively for use in legacy Square D NEHB panelboards. It utilizes a bolt-on connection to mount directly to the NEHB bus.
Can I use a modern EDB breaker to replace the EHB24035 in an NEHB panelboard?
No, EDB breakers are not interchangeable with EHB breakers and cannot be installed in NEHB panelboards. You must use an EHB series breaker to maintain compatibility with existing NEHB equipment.

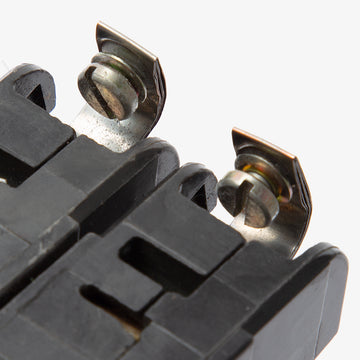

What wire sizes and materials are accepted by the lugs on this breaker?
The terminal lugs accept 14 to 2 AWG copper wire or 12 to 2 AWG aluminum wire.
What does the LI trip function code indicate on the EHB24035?
The LI code signifies that this thermal-magnetic breaker includes Long-Time and Instantaneous trip functions, providing standard overload and short-circuit protection.
Is the Square D EHB series still actively manufactured?
No, the EHB series and the corresponding NEHB panelboards are legacy products and are considered obsolete by Schneider Electric.
Is the trip unit on the EHB24035 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip settings cannot be adjusted in the field.
