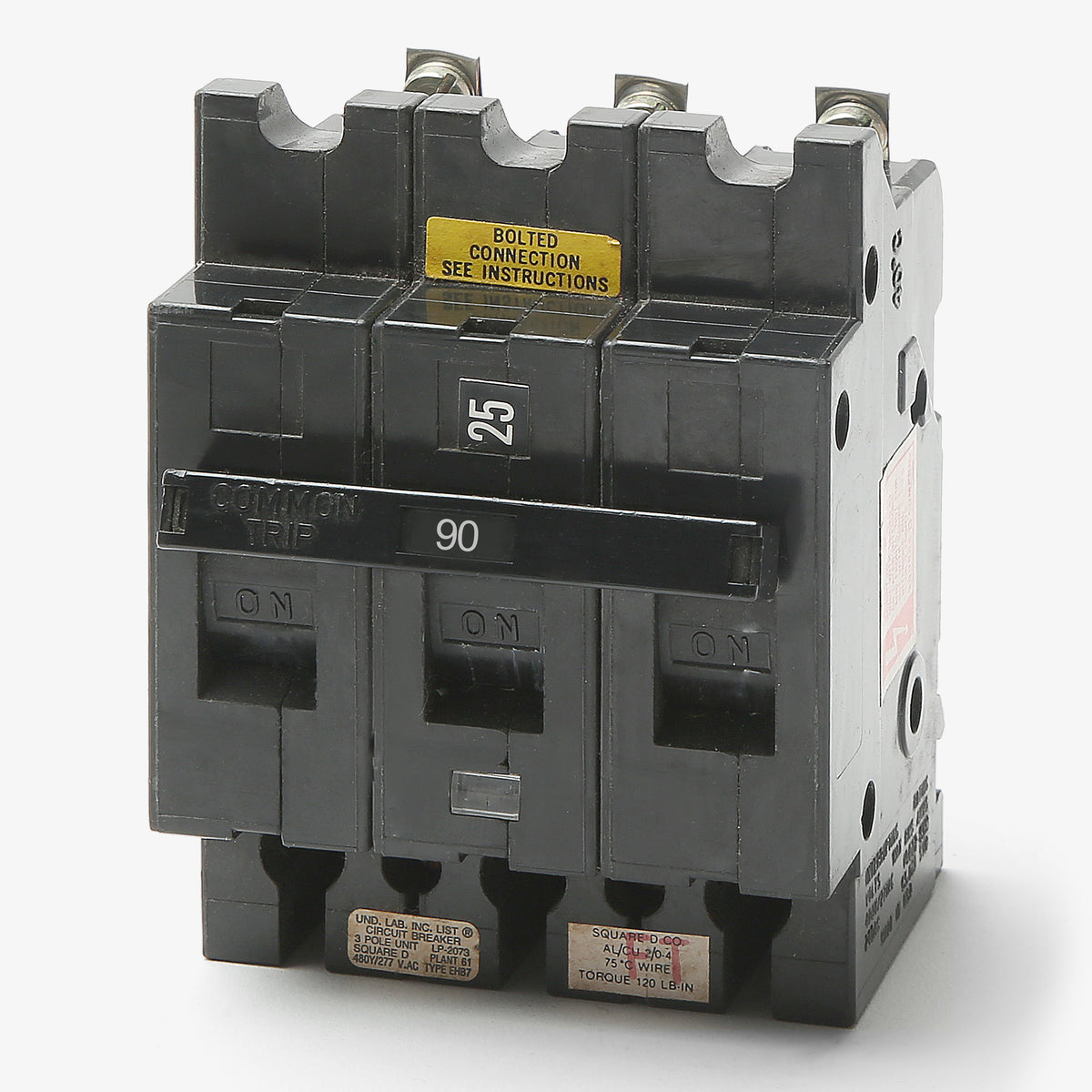

Square D EHB34090 Molded Case Circuit Breaker
- 90A
- 3 Pole

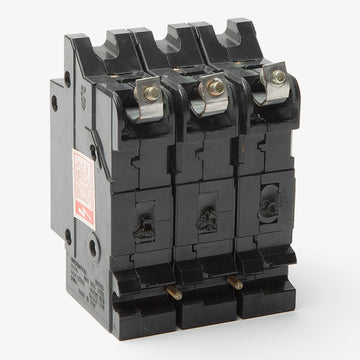

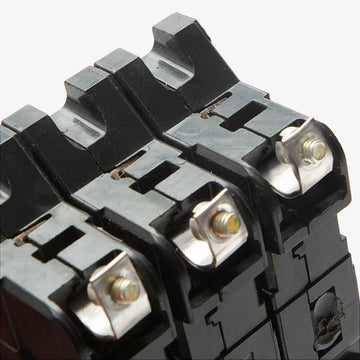

- Bolt-On
Square D
EHB34090
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB34090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34090-R |
| Series | EHB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |

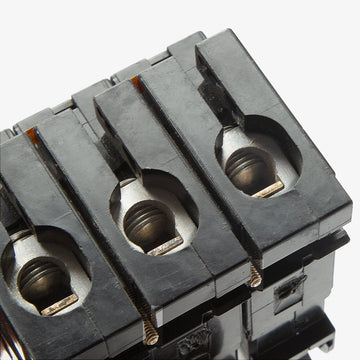

| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
Square D EHB34090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34090-R |
| Series | EHB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
The EHB34090 is a 3-pole, 90A molded case circuit breaker from Square D's legacy E-Frame lineup. Built for commercial and industrial power distribution, it features thermal-magnetic trip technology and the signature Visi-Trip indicator for quick fault identification. This bolt-on breaker mounts into Square D NEHB panelboards and is rated for 65kAIC at 240VAC or 14kAIC at 480Y/277VAC. It serves as an exact replacement for aging NEHB installations where upgrading to an NF panel is not feasible.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34090-R |
| Series | EHB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
5 answersWhat panelboards are compatible with the EHB34090 circuit breaker?
This bolt-on breaker is designed exclusively for legacy Square D NEHB panelboards. It will not fit modern NF panelboards.
Is the Square D EHB34090 obsolete?
Yes, the EHB series is a legacy product line that has been discontinued by Schneider Electric. It is typically purchased as an exact replacement to maintain existing NEHB panelboards without requiring a complete panel upgrade.
Can I use an EDB34090 to replace this breaker?
No. While the EDB series is the modern replacement for E-frame breakers, EDB breakers are designed for NF panelboards and will not mount into older NEHB panelboards. You must use an EHB breaker for NEHB panels.
Can the EHB34090 be used on a 480V ungrounded delta system?
No. This breaker carries a slash rating of 480Y/277V, meaning it is only suitable for solidly grounded wye systems where the voltage to ground does not exceed 277V.
Does this breaker feature a Visi-Trip indicator?
Yes, the EHB34090 includes the Square D Visi-Trip visual indicator. The handle will move to a center tripped position and display a highly visible red flag when a fault occurs, allowing for quick identification in the panel.
