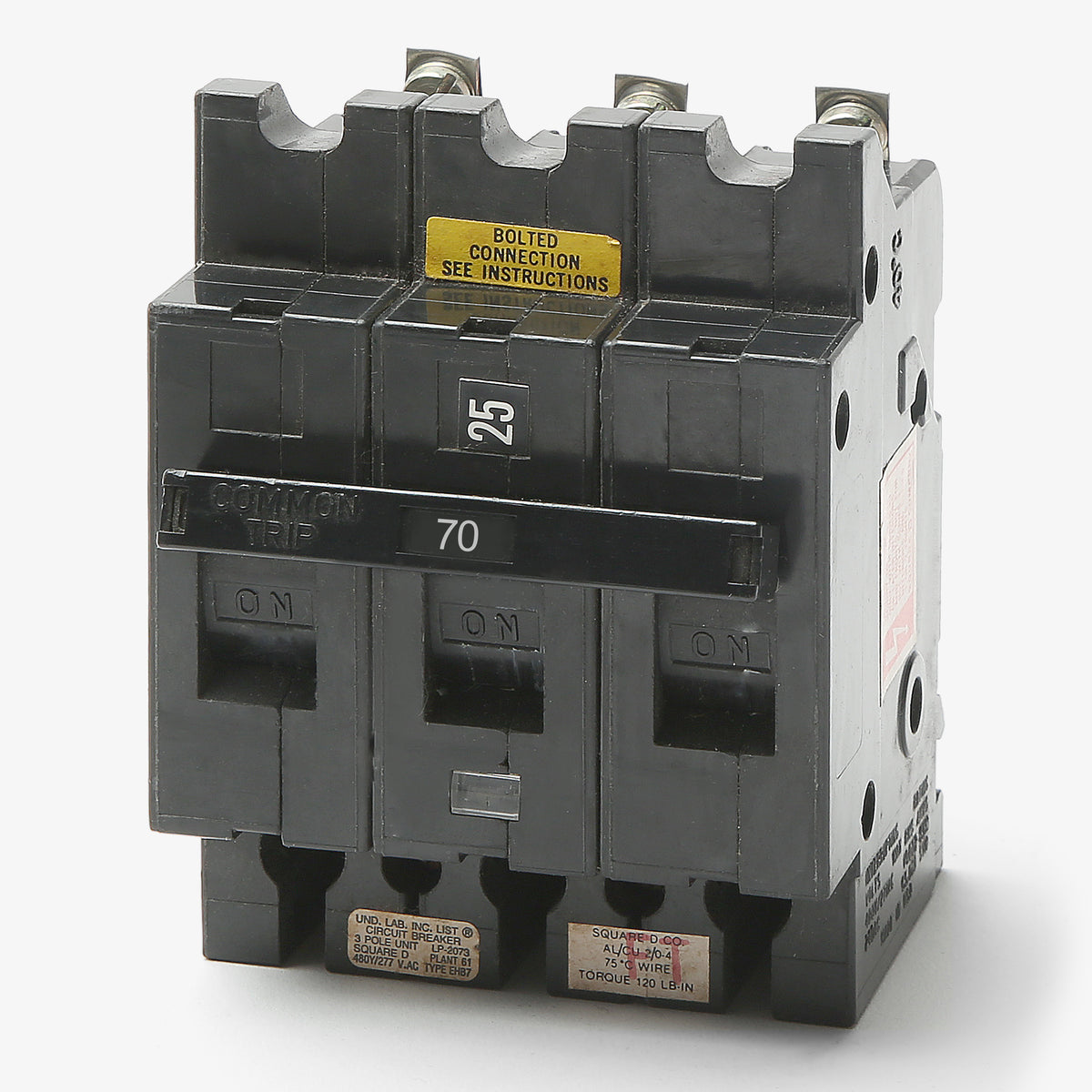

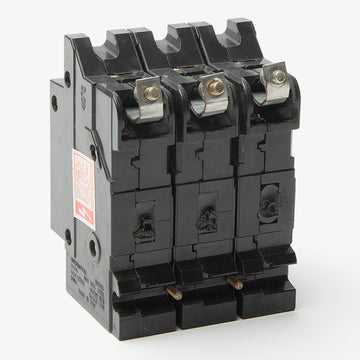

Square D EHB34070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Square D
EHB34070
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB34070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34070-R |
| Series | EHB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB34070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34070-R |
| Series | EHB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Serving as a reliable replacement, the EHB34070 is a 3-pole, 70A molded case circuit breaker from Square D's legacy E-Frame lineup. Built for commercial and industrial applications, it provides thermal-magnetic protection. This bolt-on breaker installs into older NEHB panelboards to keep existing infrastructure operational. If upgrading to an NF panelboard, the EDB34070 is the modern substitute. It features a 14kAIC rating at 480Y/277V and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34070-R |
| Series | EHB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards are compatible with the EHB34070 circuit breaker?
This breaker is specifically designed for use in legacy Square D NEHB lighting and appliance branch-circuit panelboards.
What is the modern replacement for the EHB34070?
The EHB series and NEHB panelboards are obsolete legacy products. If you are replacing the entire panelboard with a modern Square D NF series panel, the direct equivalent breaker is the EDB34070. However, modern EDB breakers will not physically fit into older NEHB panelboards.

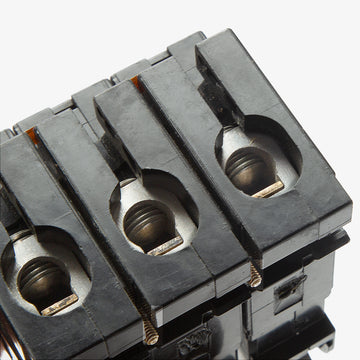

What wire size range is accepted by the EHB34070 lugs?
The factory lugs accept 14 AWG to 2/0 AWG for copper conductors, and 12 AWG to 2/0 AWG for aluminum conductors.
Can the EHB34070 be used on ungrounded 480V delta systems?
No. Because this breaker carries a 480Y/277VAC slash voltage rating, it is strictly intended for use on solidly grounded wye electrical systems. It cannot be safely applied on ungrounded or corner-grounded 480V delta systems.

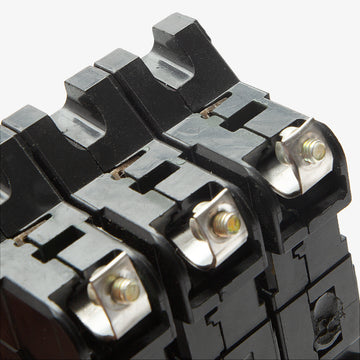

How does this breaker connect to the panelboard bus?
It is a bolt-on circuit breaker that secures directly to the bus bar of the NEHB panelboard using mounting screws, ensuring a stable and reliable physical connection.
