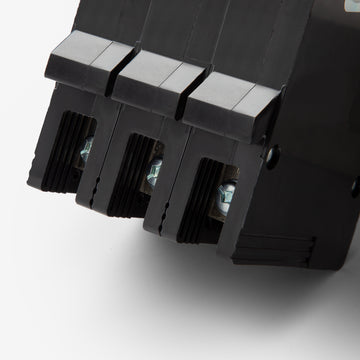

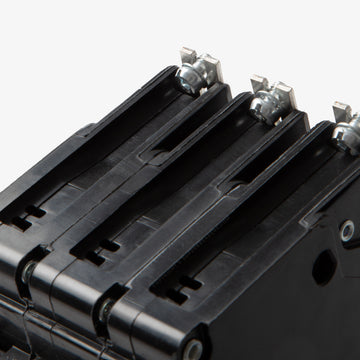

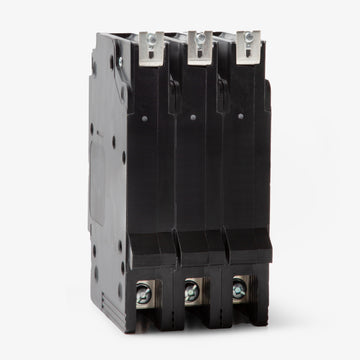

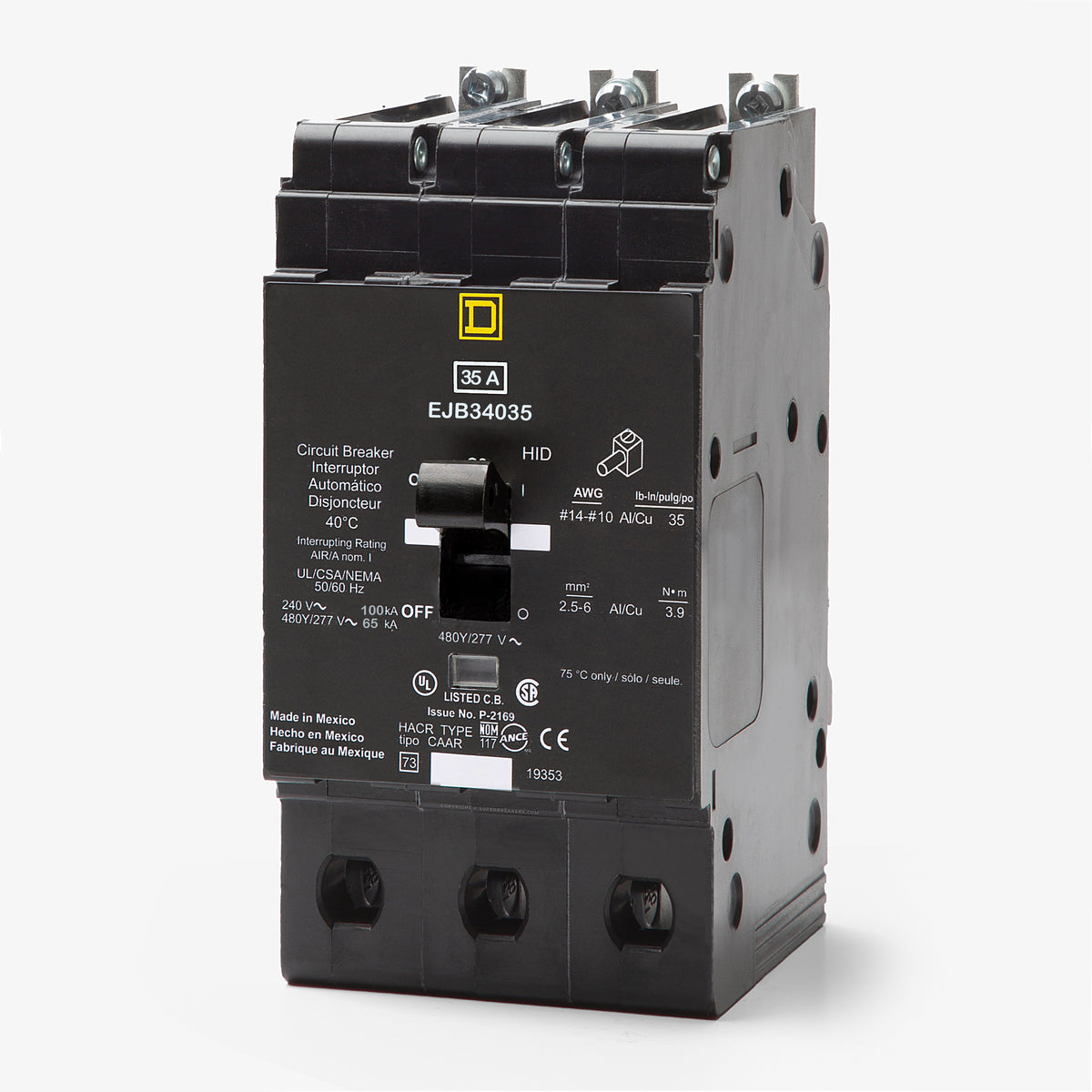

Square D EJB34035 Miniature Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Square D
EJB34035
Miniature Circuit Breaker
Brand
Square D
SKU
EJB34035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EJB34035 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EJB34035 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB34035 |
| Series | EJB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Quantity
Square D EJB34035 - 35A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB34035-R |
| Series | EJB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
30A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
Delivering reliable thermal-magnetic overcurrent protection, this 35-amp E-frame device is built for industrial facilities. It ensures consistent performance for branch circuit applications demanding high interrupting ratings. The breaker mounts into Square D NF panelboards utilizing a reliable bolt-on configuration. It accepts a wide range of wire sizes, accommodating 14-2/0 AWG copper or 12-2/0 AWG aluminum conductors.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB34035 |
| Series | EJB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
8 answersWhich panelboards are compatible with the EJB34035?
The EJB34035 is a bolt-on branch circuit breaker built exclusively for use in Square D NF series panelboards.
What is the difference between the EJB34035, EGB34035, and EDB34035 breakers?
All three are 35-amp, 3-pole E-Frame breakers designed for Square D NF panelboards, but they carry different interrupting ratings at 480Y/277V AC. The EDB34035 is rated for 18 kAIC, the EGB34035 for 35 kAIC, and the EJB34035 provides the highest tier of protection at 65 kAIC.

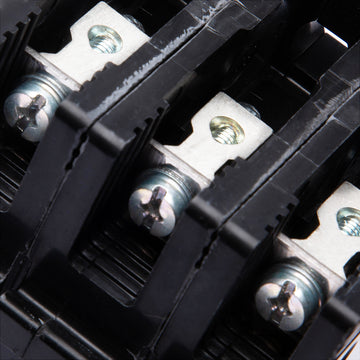

What wire sizes and conductor materials are accepted by the EJB34035 terminals?
The factory lugs on this breaker are rated for both copper and aluminum conductors. They accept 14 AWG to 2/0 AWG copper wire, or 12 AWG to 2/0 AWG aluminum wire.
Are the trip unit settings adjustable on the EJB34035?
No. This breaker utilizes a thermal-magnetic trip unit with fixed long-time and instantaneous settings, meaning the trip curve cannot be adjusted in the field.
Does the EJB34035 include a visual trip indicator?
Yes, this E-Frame breaker features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short-circuit event, a high-visibility red indicator appears, helping electricians quickly locate the tripped breaker in a crowded panel.
How is the EJB34035 secured to the panelboard?
It features a bolt-on mounting design. It is installed by directly bolting the breaker terminals to the panelboard bus bar, which creates a secure, vibration-resistant electrical connection.
Is the EJB34035 suitable for use on a 480V ungrounded delta system?
No. The EJB34035 has a slash voltage rating of 480Y/277V AC. Circuit breakers with a slash rating are only approved for use on solidly grounded wye systems where the line-to-ground voltage does not exceed 277V. They cannot be used on 480V ungrounded or corner-grounded delta systems.
Is the EJB34035 approved for use with commercial air conditioning equipment?
Yes, this E-Frame breaker is HACR rated. It is approved to provide overcurrent protection for heating, air conditioning, and refrigeration equipment requiring a HACR-type circuit breaker.
