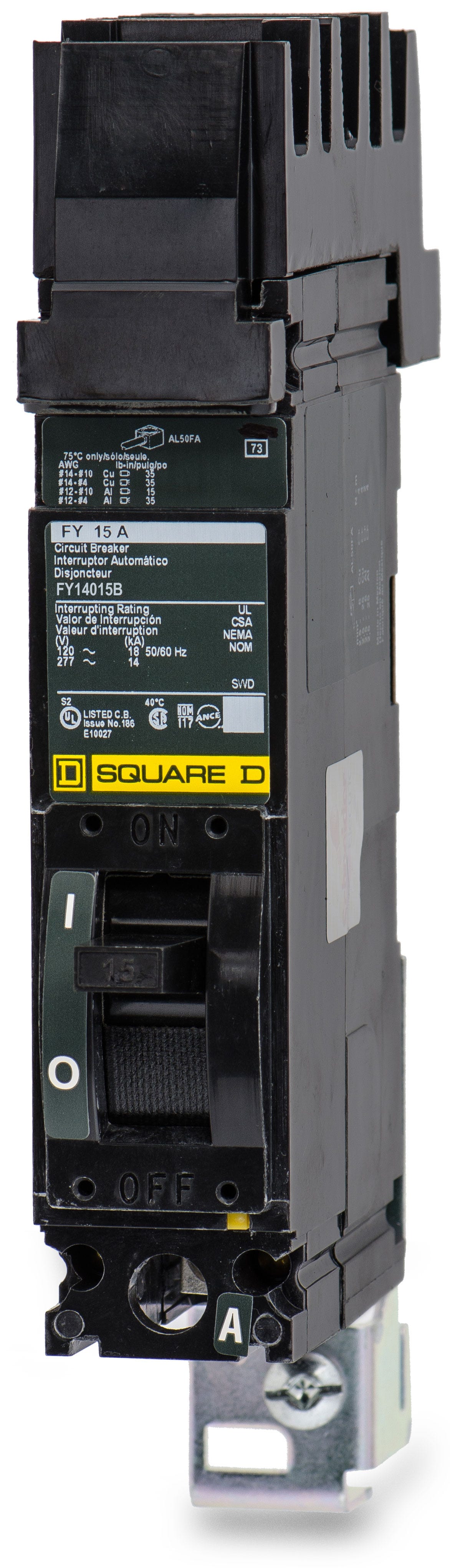

Square D FY14015B Molded Case Circuit Breaker
- 15A
- 1 Pole
- I-Line
Square D
FY14015B
Molded Case Circuit Breaker
Brand
Square D
SKU
FY14015B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FY14015B - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FY14015B - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14015B |
| Series | FY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase B Connection, Visual Trip Indicator |
Quantity
Square D FY14015B - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14015B-R |
| Series | FY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase B Connection, Visual Trip Indicator |
Similar Items
30A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D FY14015B is a 1-pole, 15A molded case circuit breaker. It provides reliable thermal-magnetic protection for 277VAC systems. This legacy F-Frame breaker features a phase B connection and installs into Square D I-Line panelboards. It is officially replaced by the modern PowerPact BDA140153. Rated for 18 kAIC, the unit includes a Visi-Trip indicator for quick fault identification. It is SWD and HACR rated for versatile applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | FY14015B |
| Series | FY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase B Connection, Visual Trip Indicator |
Product FAQs
4 answersWhat does the "B" suffix in the FY14015B catalog number indicate?
The "B" indicates that this 1-pole breaker is factory-configured specifically for a Phase B connection within Square D I-Line panelboards and switchboards.
What is the modern replacement for the Square D FY14015B?
The FY series is a legacy F-Frame circuit breaker. Schneider Electric has officially replaced these older F-Frame models with the modern PowerPact B-Frame series for new installations and panel upgrades.
How does the FY14015B mount into the panelboard?
It features an I-Line style plug-in connection. This allows the breaker to securely snap directly onto the busbar of compatible Square D I-Line equipment, providing both the electrical phase connection and mechanical mounting without requiring bolt-on hardware.
Is this circuit breaker suitable for switching lighting loads?
Yes, 15-amp FY-frame breakers are SWD (Switching Duty) rated. This means the breaker is approved to be used as a switch for controlling fluorescent lighting circuits on a regular basis without damaging the internal mechanism.
