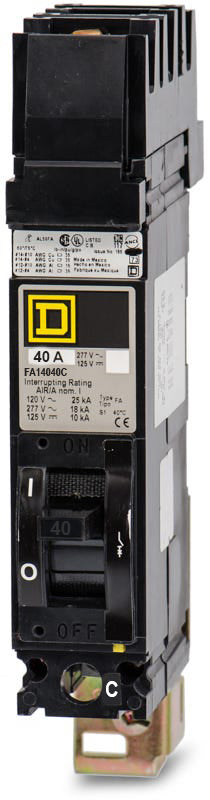

Square D FA14040C Molded Case Circuit Breaker
- 40A
- 1 Pole
- I-Line
Square D
FA14040C
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14040C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA14040C - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Built for industrial environments, the Square D FA14040C provides reliable overcurrent protection with a visual trip indicator. This 1-pole, 40A breaker belongs to the trusted F-Frame series. Designed for quick installation, it mounts into Square D I-Line panelboards using a Phase C connection. For modern upgrades, this unit crosses over to the PowerPacT B-Frame BDA140405. It delivers 18 kAIC interrupting capacity at 277VAC, featuring standard long-time and instantaneous (LI) protection.Specifications
| Brand | Square D |
|---|---|
| Series | FA |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection C |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection C |
Product FAQs
7 answersWhat panelboards is the FA14040C compatible with?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features a plug-on line connection and a mechanical lug load connection.
Is the FA frame still a current product line?
The FA frame is a legacy F-Frame series. While still widely used and supported in existing I-Line panelboards, Square D has introduced the PowerPacT B-Frame as the modern crossover replacement for new installations.
What does the C suffix in FA14040C indicate?
The C suffix indicates that this 1-pole breaker is factory-configured to connect specifically to the C-phase bus of an I-Line panelboard.
How does the I-Line mounting system work on this breaker?
The FA14040C uses a plug-on blow-on line connection that grips the panelboard bus tighter during high-fault currents. The load side utilizes standard mechanical lugs.
What is the difference between Square D FA and FH breakers?
FA breakers provide standard interrupting ratings, which is 18kAIC at 277VAC for this model. FH breakers are the high-interrupting equivalents, designed for systems with higher available fault currents.
What is the modern replacement for the FA14040C?
The direct modern crossover for this legacy F-Frame breaker is the Square D PowerPacT B-Frame series, specifically catalog number BDA140405 for a 40A, 1-pole, C-phase I-Line breaker.
Can the trip settings on the FA14040C be adjusted in the field?
No. This breaker features a fixed thermal magnetic trip unit with factory-calibrated long-time and instantaneous protection. The settings cannot be modified in the field.
