Square D FA14050A Molded Case Circuit Breaker
- 50A
- 1 Pole
- I-Line
Square D
FA14050A
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14050A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

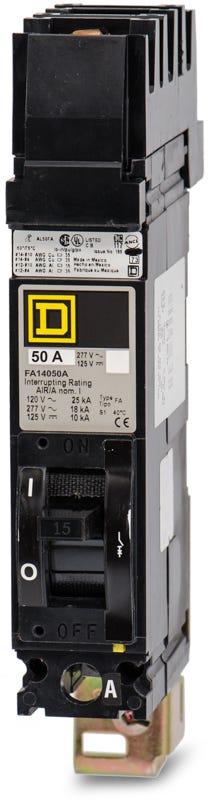

Square D FA14050A - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
A proven solution for commercial facilities, the Square D FA14050A delivers 50A of thermal-magnetic protection. It features a Visi-Trip window to easily identify tripped circuits in busy electrical rooms. This model installs into Square D I-Line panelboards via Phase A jaws. Facilities looking to modernize can replace this legacy component with the PowerPacT BDA140501. The breaker is rated 18 kAIC at 277VAC and 25 kAIC at 120VAC, providing fixed LI protection and HACR certification.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14050A |
| Series | FA |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase A Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat type of panelboard is required for the FA14050A circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It cannot be installed in standard load centers or NQ/NF panelboards.
What does the 'A' at the end of the FA14050A catalog number signify?
In the Square D I-Line naming convention, the 'A' suffix indicates that this single-pole breaker is factory-configured to connect specifically to Phase A on the panelboard bus.
Is the FA14050A still in active production?
No, the legacy F-frame series is obsolete. Schneider Electric has replaced it with the modern PowerPact B-frame series. The direct cross-reference for this specific 50A, Phase A breaker is catalog number BDA140501.
How is the FA14050A installed in the panel?
It features an I-Line style plug-in connection. The line side of the breaker snaps directly onto the panelboard busbar using a jaw-like connector, while the load side uses a traditional mechanical lug for the outgoing wire.
Can the FA14050A I-Line breaker be reverse fed?
No. Because this breaker features a plug-on jaw connection specifically designed for the line-side busbar and a mechanical lug for the load side, it cannot be reverse fed.
