Square D FA14060B Molded Case Circuit Breaker
- 60A
- 1 Pole
- I-Line
Square D
FA14060B
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

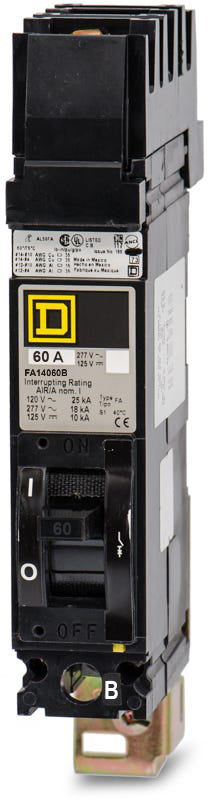

Square D FA14060B - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the FA14060B delivers reliable thermal-magnetic protection. This 60A, single-pole device is part of the legacy F-frame family. It installs into Square D I-Line panelboards utilizing a factory-configured B-phase connection. For modern upgrades, this model is replaced by the PowerPacT BDA140603. Rated for 18kAIC at 277VAC, it features an integrated Visi-Trip indicator for clear visual confirmation of fault events.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14060B |
| Series | FA |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection B |
Product FAQs
6 answersWhat type of panelboards accept the FA14060B circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a specialized plug-on line connection that mounts directly to the I-Line bus.
Is the Square D FA frame obsolete?
Yes, the FA frame is a legacy product. For modern upgrades, Square D replaced this model with the PowerPacT B-frame series. However, the FA14060B remains fully compatible as a direct replacement in existing I-Line systems.
Can the FA14060B be used in direct current (DC) systems?
Yes, this thermal magnetic breaker is rated for DC applications. It can safely interrupt up to 10,000 amps at 125VDC.
What type of wire can be used with the FA14060B lugs?
The factory-installed mechanical lugs are dual-rated for both copper and aluminum conductors, accepting wire sizes from 14 AWG up to 1/0 AWG.
Is this circuit breaker suitable for HVAC applications?
Yes, the FA14060B is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment. It also features a Visi-Trip indicator for clear visual confirmation if the breaker trips.
How does the I-Line mounting system improve safety during a fault?
The I-Line plug-on connection utilizes a blow-on design. During a short circuit, the magnetic forces cause the connector jaws to grip the busbar even tighter, which helps reduce the risk of arcing.
