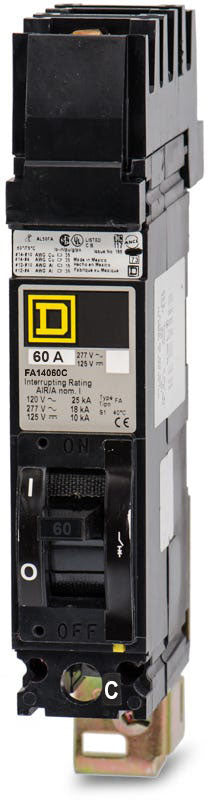

Square D FA14060C Molded Case Circuit Breaker
- 60A
- 1 Pole
- I-Line
Square D
FA14060C
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14060C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA14060C - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty distribution, the FA14060C supplies robust thermal-magnetic protection. This 60A, single-pole breaker provides essential LI trip functions. It installs into Square D I-Line panelboards utilizing a factory-configured C-phase connection. Facilities upgrading can transition to the PowerPacT BDA140605. With an 18kAIC rating at 277VAC, it safely interrupts faults. The Visi-Trip indicator allows quick identification of tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14060C |
| Series | FA |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase C Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection C |
Product FAQs
4 answersWhat does the "C" in the FA14060C catalog number indicate?
The "C" signifies that this 1-pole breaker is factory-configured specifically for a C-phase connection on the bus of Square D I-Line panelboards and switchboards.
How does the I-Line mounting system connect the FA14060C to the panel?
The I-Line design features a plug-on line-side jaw that pushes directly onto the panelboard bus assembly. The load side utilizes a standard mechanical lug for wire termination.
Is the Square D FA frame series still in active production?
No, the FA (F-frame) series is a legacy product line that Schneider Electric has discontinued and transitioned to the newer PowerPact series. However, FA breakers remain available to support and maintain existing I-Line infrastructure.
What is the standard replacement lug kit for this breaker?
The FA14060C uses the AL100FA mechanical lug kit, which is the standard replacement lug for 15A to 100A Square D F-frame circuit breakers.
