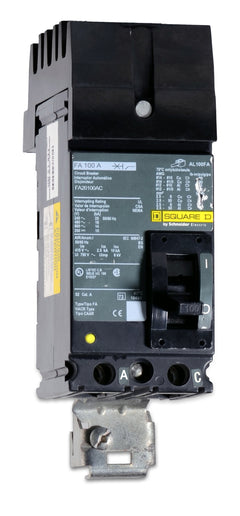

Square D FA24100AB Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
FA24100AB
Molded Case Circuit Breaker
Brand
Square D
SKU
FA24100AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA24100AB - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FA24100AB - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24100AB |
| Series | FA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AB |
Quantity
Square D FA24100AB - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24100AB-R |
| Series | FA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AB |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-frame series, this 100-amp molded case circuit breaker provides robust thermal-magnetic protection for commercial and industrial electrical systems. It features an AB phase connection configuration. Designed to mount into Square D I-Line panelboards and switchgear, this unit utilizes a plug-on bus connection for efficient installation. It is commonly replaced by the newer HDA261001 model in modern upgrades. Delivering an 18kAIC rating at 480VAC, it includes Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA24100AB-R |
| Series | FA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AB |
Product FAQs
4 answersWhat does the "AB" suffix indicate on the FA24100AB catalog number?
The "AB" suffix specifies the breaker's phase connection. This 2-pole unit is configured to connect to the A and B phases on a Square D I-Line panelboard bus.
What is the modern replacement for the FA24100AB?
The FA24100AB is a legacy F-frame circuit breaker. For new installations or panel upgrades, it is replaced by the Square D PowerPact H-frame series, specifically catalog number HDA261001.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the FA24100AB features a fixed thermal-magnetic trip unit. The long-time (overload) and instantaneous (short-circuit) protection settings are factory-calibrated and cannot be adjusted in the field.
Can the FA24100AB be installed in standard Square D QO or NQ load centers?
No, this breaker features an I-Line plug-on mounting configuration. It is designed exclusively for Square D I-Line panelboards and switchboards, and will not fit in standard residential or commercial load centers.
