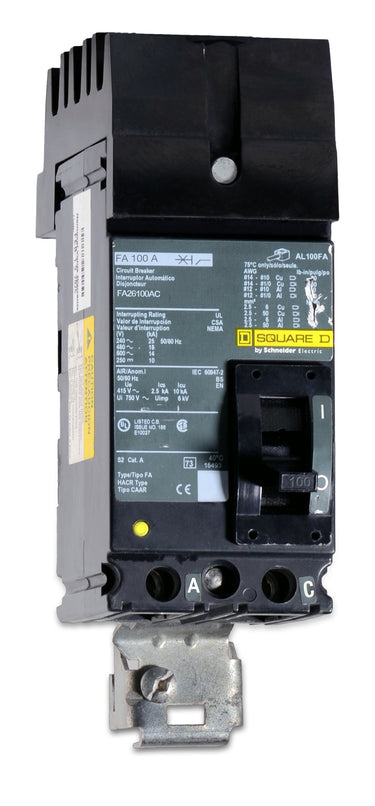

Square D FA26100AC Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
FA26100AC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA26100AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA26100AC - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA26100AC - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26100AC |
| Series | FA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Quantity
Square D FA26100AC - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26100AC-R |
| Series | FA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, this 100-amp F-frame breaker provides thermal-magnetic protection with an AC phase configuration. The unit delivers standard long-time and instantaneous (LI) trip functions to handle demanding electrical loads. This component mounts into standard Square D I-Line panelboards and switchboards.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA26100AC |
| Series | FA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Product FAQs
7 answersWhat does the "AC" suffix mean in the FA26100AC catalog number?
The "AC" suffix specifies the physical phase arrangement of the I-Line plug-on jaws. It indicates that this two-pole breaker is factory-configured to connect exclusively to the A and C phases of the panelboard busbar system.
Which panelboards accept the FA26100AC breaker?
This breaker features a proprietary plug-on bracket designed strictly for Square D I-Line panelboards and switchboards. It is not compatible with NQ, NF, QMB, or standard residential load centers.
Is there a modern replacement for the legacy FA series I-Line breakers?
Yes. Schneider Electric has transitioned the legacy F-Frame series to the newer PowerPact B-Frame. A comparable B-Frame breaker with I-Line mounting (such as the BDA or BGA series) is the direct manufacturer-recommended alternative for F-Frame replacements.
Can the FA26100AC be reverse-fed?
Yes. Standard Square D thermal-magnetic F-Frame breakers do not feature "Line" and "Load" directional markings, meaning they can be safely reverse-fed. If used as a back-fed main in a panelboard, ensure it is properly secured and labeled per NEC guidelines.
Is the FA26100AC suitable for HVAC applications?
Yes, this breaker is HACR rated. It is certified for use with heating, air conditioning, and refrigeration equipment that requires HACR-type overcurrent protection.
Can I field-install a shunt trip or auxiliary switch in this breaker?
No. Internal electrical accessories like shunt trips, auxiliary switches, and undervoltage releases are not field-installable on legacy F-Frame circuit breakers. They must be ordered pre-installed from the factory, which is designated by an accessory suffix in the catalog number.
Does the FA26100AC require a specific mounting orientation?
No. Square D molded case circuit breakers can be mounted vertically or horizontally. The operating position does not affect the performance or calibration of the thermal-magnetic trip unit.
