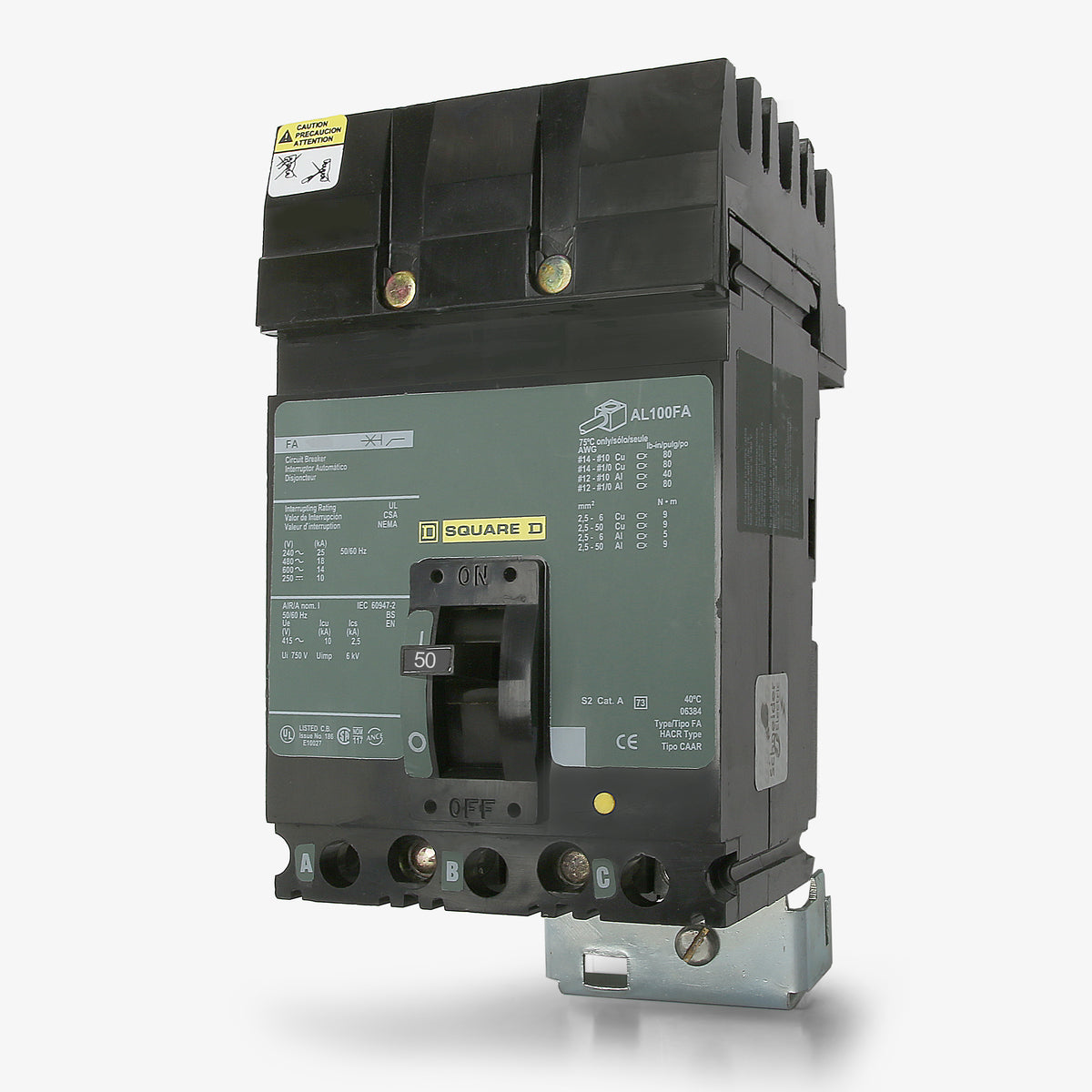

Square D FA34050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- I-Line
Square D
FA34050
Molded Case Circuit Breaker
Brand
Square D
SKU
FA34050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA34050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA34050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA34050 |
| Series | FA |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D FA34050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA34050-R |
| Series | FA |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical loads, the Square D FA34050 provides 50A of thermal-magnetic overcurrent protection. This 3-pole molded case circuit breaker features fixed trip settings for reliable long-time and instantaneous (LI) defense. Designed for Square D I-Line panelboards, the plug-on mounting ensures secure phase connections. For facility upgrades, this legacy F-Frame model crosses over to the modern PowerPact B-Frame BDA34050.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA34050 |
| Series | FA |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWhat type of electrical distribution panels accept the FA34050 breaker?
The FA34050 is a legacy F-Frame molded case circuit breaker designed specifically for Square D I-Line panelboards and switchboards. It uses an I-Line style plug-on connection on the line side.
Is the FA34050 a legacy circuit breaker, and what is its modern equivalent?
Yes, the FA34050 is part of Square D's legacy F-Frame series. The direct modern replacement in the PowerPact series is the HDA36050, which shares the same 50A rating, 3-pole configuration, and I-Line mounting style.
How are connections made on the line and load sides of this breaker?

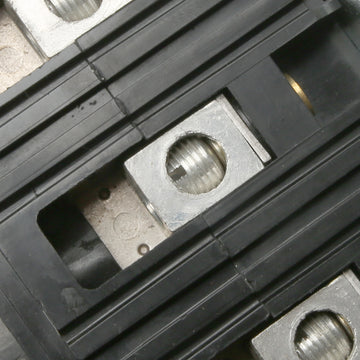

The line side features I-Line plug-on jaws that snap directly onto the panelboard bus. The load side comes equipped with mechanical lugs that accept 14 to 1/0 AWG copper or aluminum (Cu/Al) wire.
Can this 480V-rated breaker be used on lower voltage electrical systems?
Yes, it is fully rated for use on 277V, 240V, and 208V AC systems. Its interrupting capacity increases on lower voltage systems, providing up to 25kAIC at 240VAC. It is also rated for up to 10kAIC at 250VDC.
Does the FA34050 feature adjustable trip settings?
No, this is a standard thermal magnetic breaker with fixed long-time and instantaneous trip functions. The trip curve parameters cannot be adjusted in the field.
What safety precautions are required when installing an I-Line breaker?
Installation must be performed by a qualified electrician. The panel must be completely de-energized before mounting to the bus, and the load side wire connections must be tightened to the specific torque values listed on the breaker to ensure a secure, code-compliant connection.
