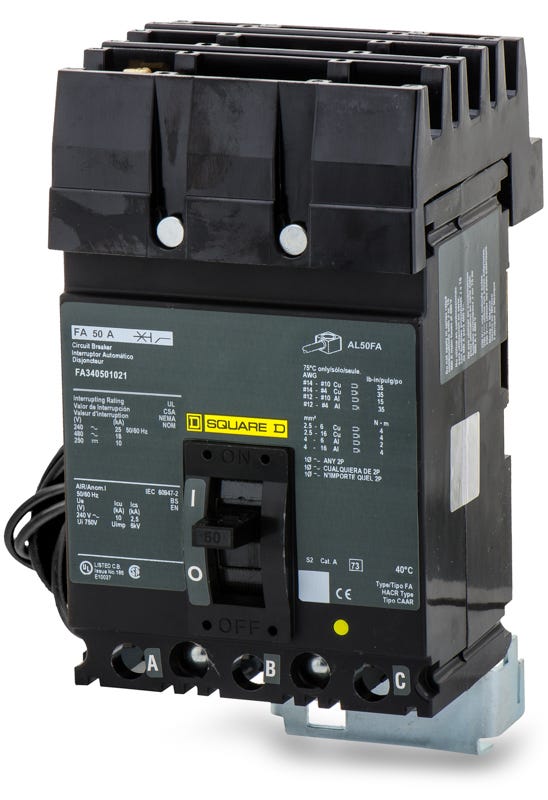

Square D FA340501021 Molded Case Circuit Breaker
- 50A
- 3 Pole
- I-Line
Square D
FA340501021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA340501021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA340501021 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-frame series, this 50-amp thermal-magnetic breaker delivers reliable long-time and instantaneous (LI) protection for commercial distribution systems. It installs into Square D I-Line panelboards and switchboards, utilizing a plug-on phase connection for rapid deployment. Featuring a factory-installed 120VAC shunt trip mechanism, the unit allows for remote tripping capabilities. It provides 18kAIC at 480VAC and is currently replaced by the PowerPact HDA34050SA.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA340501021 |
| Series | FA |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards are compatible with the FA340501021 circuit breaker?
This F-frame breaker is specifically designed for Square D I-Line panelboards and switchboards. It features a plug-on phase connection that mounts directly to the I-Line bus assembly.
What does the 1021 suffix indicate on the FA340501021 catalog number?
The 1021 suffix signifies that this breaker includes a factory-installed 120VAC shunt trip mechanism. This allows the breaker to be tripped remotely via an external control circuit, which is often required for emergency shutdown systems.
Is the Square D FA340501021 still in active production?
No, the legacy FA series has been discontinued by Schneider Electric. For new installations, it is typically replaced by the modern PowerPact H-frame series, such as the HDA34050SA, which also includes a shunt trip accessory.
How is the FA340501021 installed in an electrical system?
The line side utilizes an I-Line plug-in connection that snaps directly onto the panelboard bus. The load side is equipped with mechanical lugs that accept 14 AWG to 1/0 AWG copper or aluminum conductors.
What type of trip mechanism does the FA340501021 use?
It utilizes a fixed thermal-magnetic trip unit providing long-time and instantaneous (LI) protection. The thermal element responds to sustained overloads, while the magnetic element provides immediate tripping during short-circuit faults.
