Square D FA36090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- I-Line
Square D
FA36090
Molded Case Circuit Breaker
Brand
Square D
SKU
FA36090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

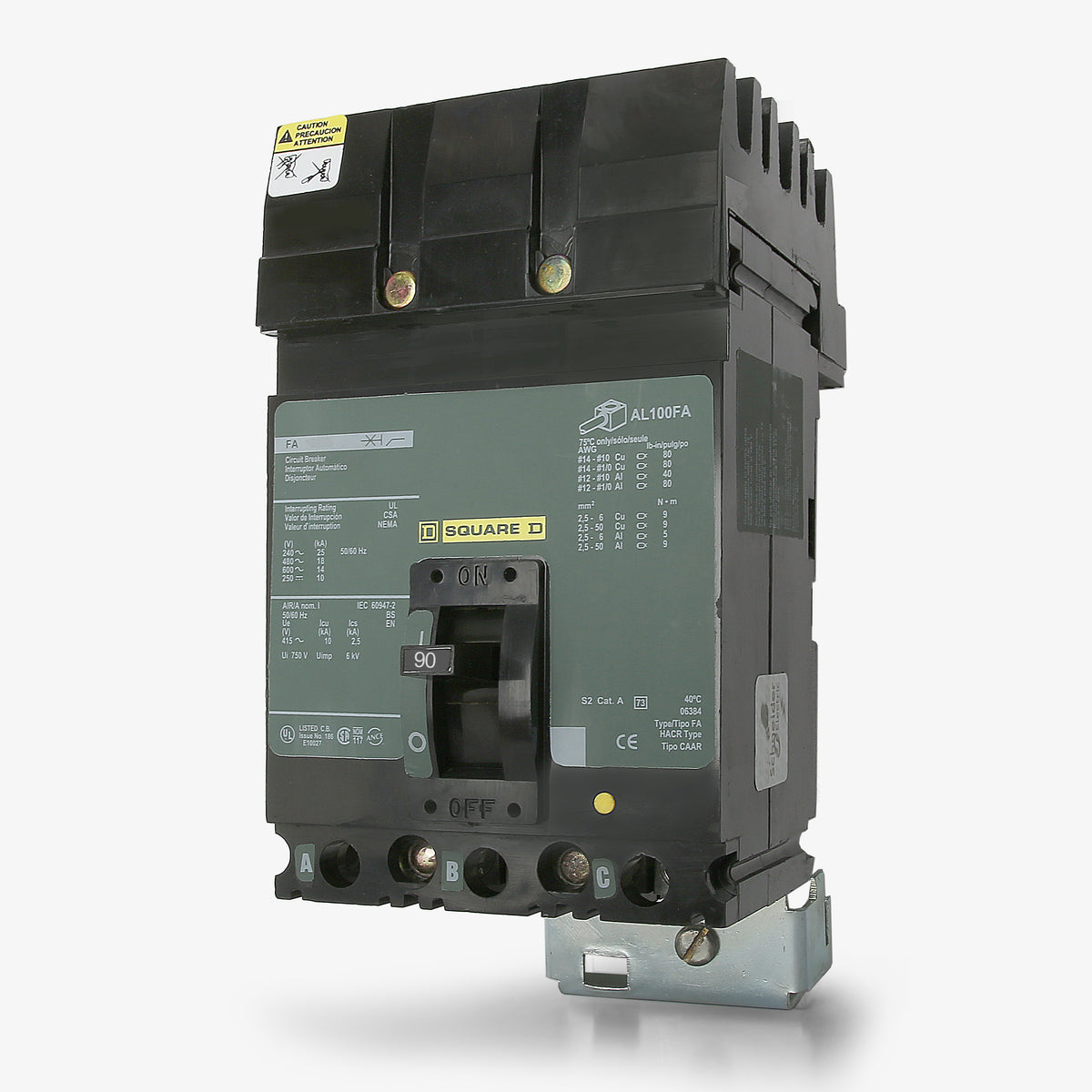

Square D FA36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA36090 |
| Series | FA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FA36090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA36090-R |
| Series | FA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Built for robust industrial applications, the Square D FA36090 is a 90A, 3-pole molded case circuit breaker. It utilizes thermal-magnetic trip technology to deliver reliable long-time and instantaneous (LI) circuit protection. Designed with an I-Line plug-on mounting style, this F-Frame unit integrates into compatible Square D panelboards and switchboards. It serves as a legacy replacement part and is superseded by the PowerPact HGA36090. It features a 25kAIC rating at 240V and Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA36090 |
| Series | FA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat is the modern replacement for the discontinued FA36090?
The FA36090 is a legacy F-Frame circuit breaker [1.1.2]. Schneider Electric recommends the PowerPact B-Frame BDA36090 as the direct replacement. The PowerPact H-Frame HDA36090 is also frequently used as a 90A, 3-pole I-Line upgrade since it offers the same 18kAIC at 480V interrupting capacity.
What are the magnetic trip settings for this circuit breaker?
The FA36090 features fixed thermal and magnetic trip elements. The magnetic hold current is factory set at 900A, and the magnetic trip current is set at 1700A.
Can the FA36090 be installed in DC systems?
Yes, this breaker is rated for direct current applications. It can be applied on ungrounded systems up to 250VDC with a maximum interrupting capacity of 10kA.
What type of panelboard accepts the FA36090?
This breaker features an I-Line style plug-in line connection. It is designed exclusively for mounting in Square D I-Line panelboards and switchboards, and will not fit in QO, NQ, or NF series load centers.
Which wire sizes are compatible with the load lugs?
The standard AL100FA mechanical lugs on the load side accept 14 to 1/0 AWG copper conductors, or 12 to 1/0 AWG aluminum conductors.
How is the line connection made on this breaker?
As an I-Line unit, the line side features plug-on jaws that clamp securely onto the busbars of an I-Line panelboard. The load side utilizes standard mechanical lugs for outgoing field wiring.
What does the LI trip function indicate for safety protection?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) protection against sustained thermal overloads and Instantaneous (I) protection against high-level short circuits. Both the thermal and magnetic pickup points are fixed.
Is the FA36090 suitable for heating and cooling equipment?
Yes. It is HACR rated, which means it is safety certified for use with heating, air conditioning, and refrigeration equipment that requires multi-motor or combination-load circuit protection.
