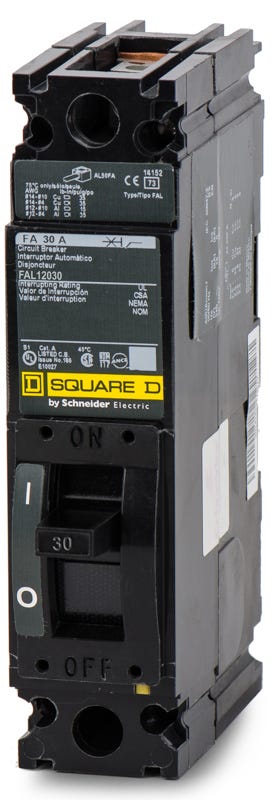

Square D FAL12030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Unit Mount
Square D
FAL12030
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL12030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL12030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL12030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL12030 |
| Series | FAL |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL12030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL12030-R |
| Series | FAL |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Engineered for industrial switchboards, the Square D FAL12030 is a 1-pole, 30A molded case circuit breaker. It utilizes a fixed thermal-magnetic trip unit to deliver precise long-time and instantaneous (LI) fault protection. This legacy F-Frame device is designed for unit mounting in compatible Square D enclosures and control panels. While now replaced by the PowerPact B-Frame (BDL16030), it remains a vital component for maintaining existing 120VAC systems with a 10kAIC rating.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL12030 |
| Series | FAL |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersIs the Square D FAL12030 obsolete, and what is its replacement?
Yes, Schneider Electric has discontinued the legacy F-frame series. The FAL12030 has been superseded by the PowerPacT B-frame series, specifically catalog number BDL16030, which serves as the modern equivalent for 30A, 1-pole applications.
What are the physical dimensions of the FAL12030 breaker?
This 1-pole F-frame circuit breaker measures approximately 6.4 inches high, 1.5 inches wide, and 4.13 inches deep.
What wire gauge is compatible with the terminals on this 30A breaker?
The factory-installed line and load lugs accept copper or aluminum conductors ranging from 14 AWG to 4 AWG. Ensure proper torque specifications are followed during installation.
Where can the FAL12030 be installed?
This unit-mount breaker is engineered for use in compatible Square D industrial enclosures, switchboards, and control panels designed to accommodate legacy F-frame molded case circuit breakers.
How does the FAL12030 mount into an electrical system?
This is a unit-mount, feed-thru circuit breaker. It does not plug onto a busbar, but instead mounts directly to the enclosure backpan and utilizes lugs for both the line and load wire connections.
What type of fault protection does the FAL12030 provide?
It utilizes a fixed thermal-magnetic trip unit to deliver long-time (thermal) protection against sustained overloads and instantaneous (magnetic) protection against short circuits.
