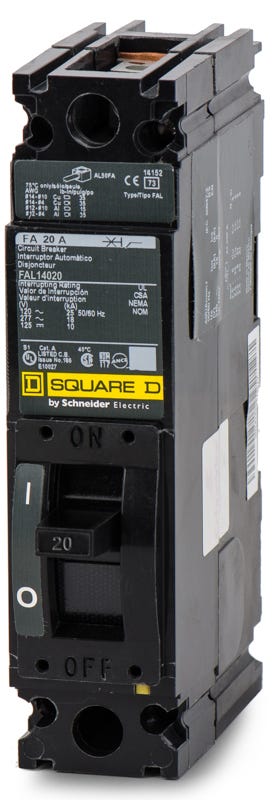

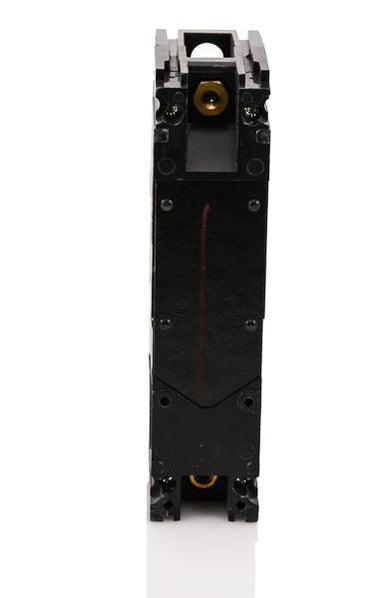

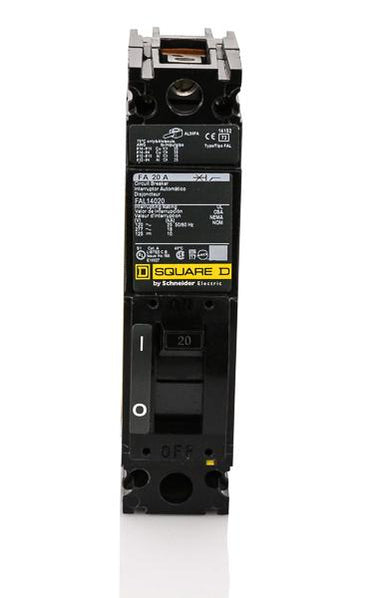

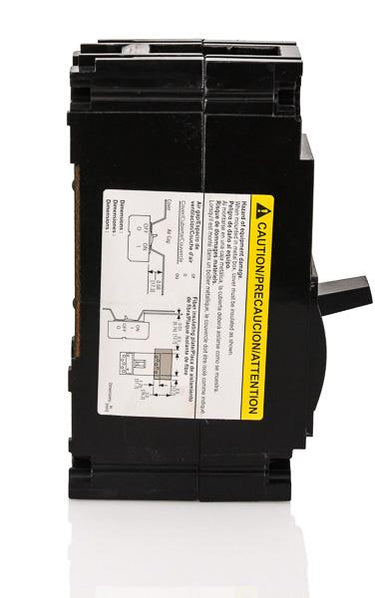

Square D FAL14020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Unit Mount
Square D
FAL14020
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL14020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL14020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL14020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL14020 |
| Series | FAL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D FAL14020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL14020-R |
| Series | FAL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-Frame series, the Square D FAL14020 is a 1-pole, 20A molded case circuit breaker. It delivers essential long-time and instantaneous (LI) protection for commercial and industrial applications. Featuring a unit mount design, this breaker installs into Square D switchboards and control panels via standard lug terminals. For modern upgrades, this specific model is officially replaced by the PowerPacT B-Frame BDL16020. The device provides an 18kAIC rating at 277VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL14020 |
| Series | FAL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersIs the Square D FAL14020 circuit breaker still manufactured?
No, the FAL14020 is an obsolete legacy F-Frame breaker. For modern panel upgrades, it has been officially replaced by the Square D PowerPacT B-Frame series, specifically the BDL16020.
What does the 480Y/277VAC voltage rating indicate for this breaker?
This slash voltage rating means the breaker is approved for use on solidly grounded wye systems where the line-to-neutral voltage does not exceed 277V. It is not rated for use on 480V ungrounded or delta electrical systems.
How does the FAL14020 mount inside an enclosure?
This is a unit-mount, feed-thru circuit breaker. It secures directly to a backpan or mounting plate using screws and connects to the circuit using the provided line and load lugs, rather than plugging onto a busbar.
Can I install the FAL14020 in a Square D I-Line panelboard?
No. The FAL14020 is a unit-mount breaker designed to be fastened to a backpan. It lacks the plug-on jaw connections required to mount onto I-Line busbars.
Does the FAL14020 provide GFCI or AFCI protection?
No. This is a standard thermal magnetic circuit breaker that provides only long-time overload and instantaneous short-circuit protection. It does not include ground-fault or arc-fault circuitry.
