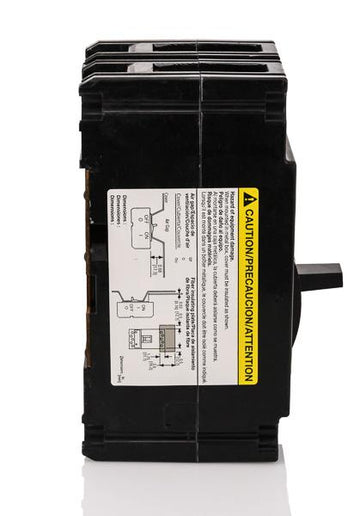

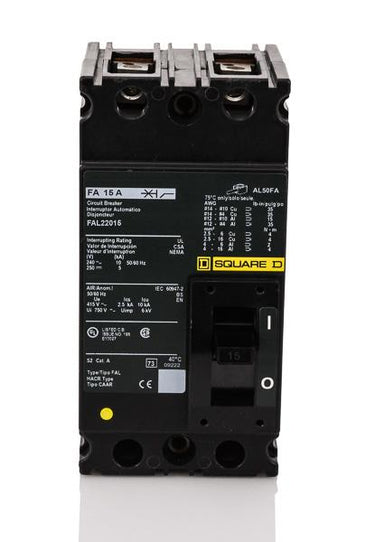

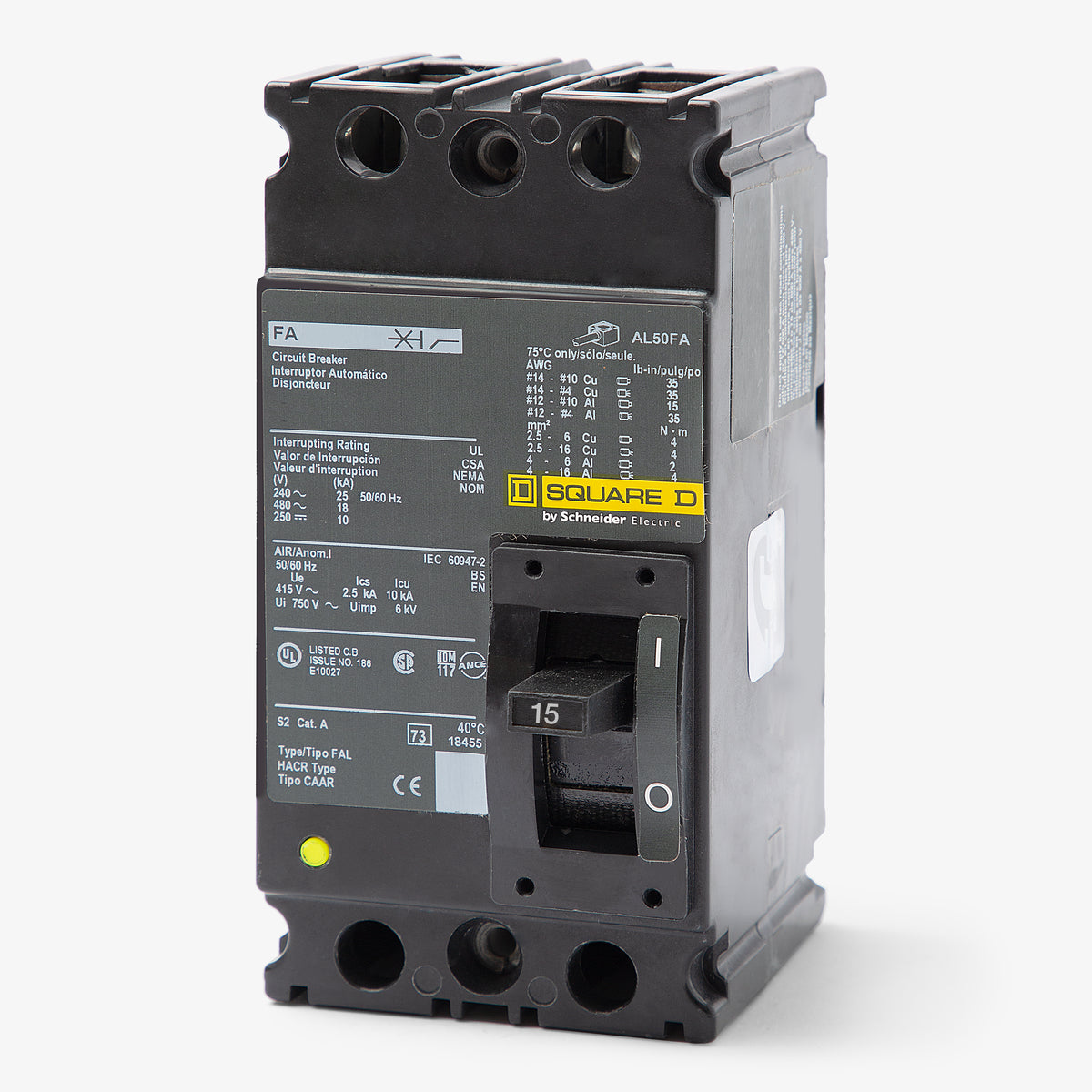

Square D FAL22015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Square D
FAL22015
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL22015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL22015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL22015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL22015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL50FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL22015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL22015-R |
| Series | FAL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL50FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Providing 15A of thermal-magnetic protection, the FAL22015 is a 2-pole unit mount MCCB from Square D. It is designed for commercial environments requiring standard long-time and instantaneous (LI) trip functions. This breaker installs into Square D enclosures and control panels. As a legacy F-Frame unit, it replaces older installations, though officially superseded by the PowerPacT BDL26015 in new construction. Rated 10kAIC at 240VAC, it is HACR rated and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL22015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL50FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersIs the FAL22015 still manufactured or is there a direct replacement?
The FAL22015 is a legacy F-Frame circuit breaker. For new installations or direct replacements, Schneider Electric recommends the PowerPacT B-Frame series, such as the BDL26015, which meets or exceeds the original specifications.
What type of enclosures or panels is this breaker compatible with?
This unit-mount breaker is designed for use in standard Square D enclosures, switchboards, and control panels. It is a feed-thru breaker with line and load lugs, meaning it is not compatible with I-Line panelboards that require plug-on jaw connections.

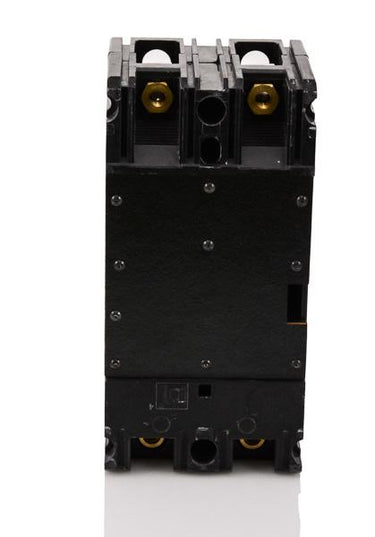

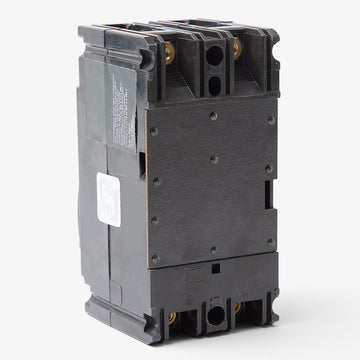

How does a unit-mount breaker like the FAL22015 install into a panel?
Unit-mount breakers bolt or screw directly to the backpan of the enclosure or control panel. They use line and load lugs for wire connections rather than plugging directly onto a busbar.
Can the FAL22015 be used in DC power applications?
Yes, in addition to its 240VAC rating, this breaker is rated for 250VDC with an interrupting capacity of 5kAIC. This makes it suitable for specific direct current control circuits and industrial applications.
What does the LI trip function code mean on this breaker?
The LI code indicates a thermal-magnetic trip unit with Long-Time and Instantaneous protection. The thermal element protects against sustained overloads, while the magnetic element trips instantly during a short circuit. Both settings are fixed on this model.

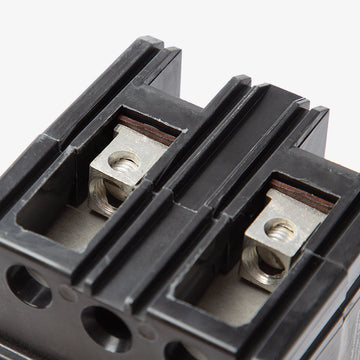

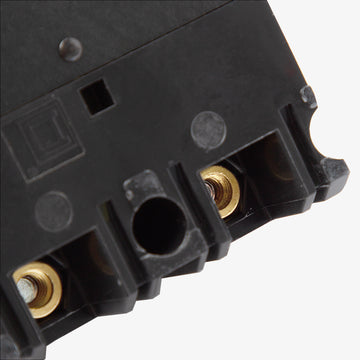

What wire sizes and materials are accepted by the lugs on this breaker?
The factory lugs accept 14 to 4 AWG copper wire or 12 to 4 AWG aluminum wire. Always ensure connections are torqued to the manufacturer specifications printed directly on the breaker label.
Is this breaker HACR rated for HVAC equipment?
Yes, the FAL series is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
