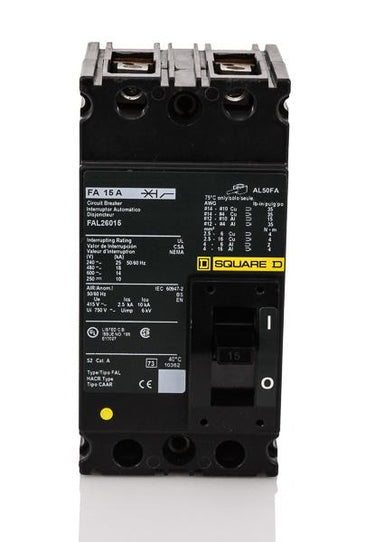

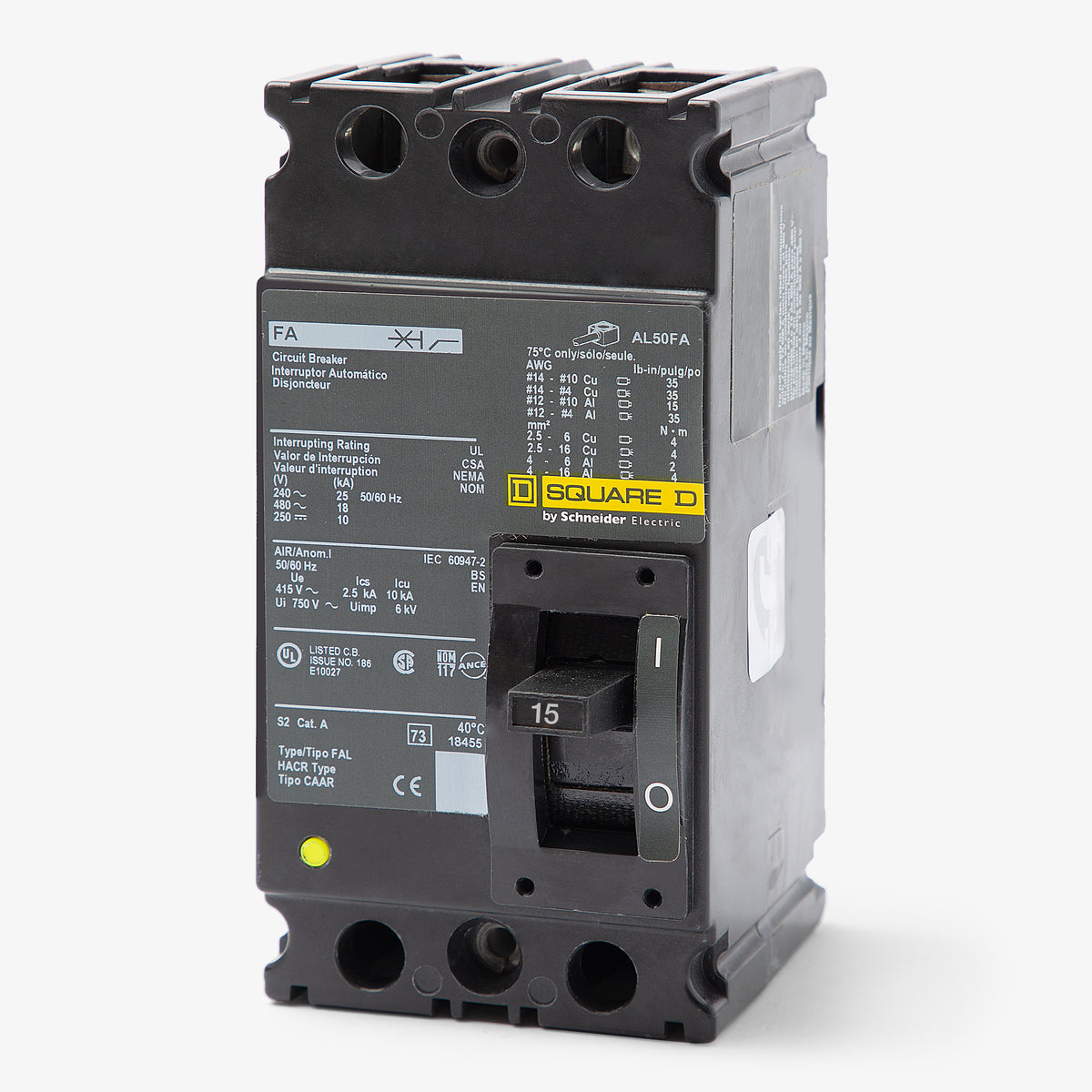

Square D FAL26015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Square D
FAL26015
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL26015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL26015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL26015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL26015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D FAL26015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL26015-R |
| Series | FAL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-Frame series, the Square D FAL26015 provides thermal-magnetic protection for commercial systems. This 15A, two-pole breaker handles up to 600VAC. It installs into standard Square D enclosures and switchboards using a unit-mount configuration. As a discontinued model, it is replaced by the PowerPacT H-Frame (HGL26015). Featuring a 25kAIC rating at 240V, it includes Visi-Trip technology for quick fault identification and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL26015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersIs the Square D FAL26015 still manufactured, or is there a direct replacement?
The FAL26015 is a legacy F-frame circuit breaker that has been discontinued by Schneider Electric. It is superseded by the modern PowerPact H-frame series, which is the designated replacement for F-frame applications.
Can the FAL26015 circuit breaker be reverse fed?
Yes. Because this is a standard thermal-magnetic breaker without specific Line and Load markings, it can be safely reverse fed for supply-side applications.
Is the FAL26015 rated for DC voltage applications?
Yes, this breaker is rated for up to 250VDC with a 10kA interrupting capacity. This makes it suitable for specific battery, solar, or industrial DC control circuits.
What type of equipment accepts the FAL26015 breaker?
This unit-mount breaker is designed for installation in standard Square D enclosures, switchboards, and older QED panelboards that accept legacy F-frame breakers.

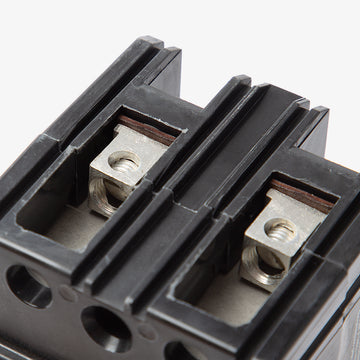

What wire sizes are accepted by the lugs on the FAL26015?
The factory lugs accept 14 AWG to 4 AWG copper or aluminum wire. Always ensure connections are torqued to the manufacturer specifications printed directly on the breaker faceplate.
