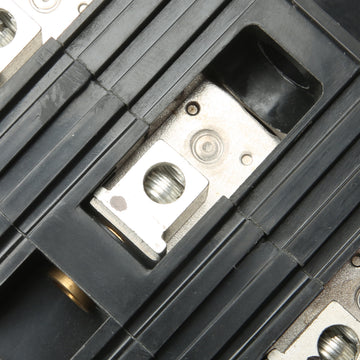

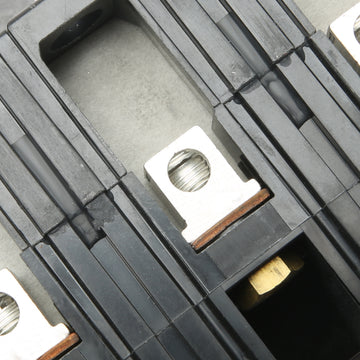

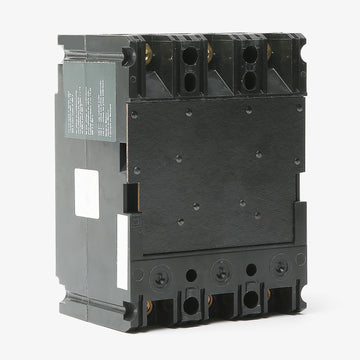

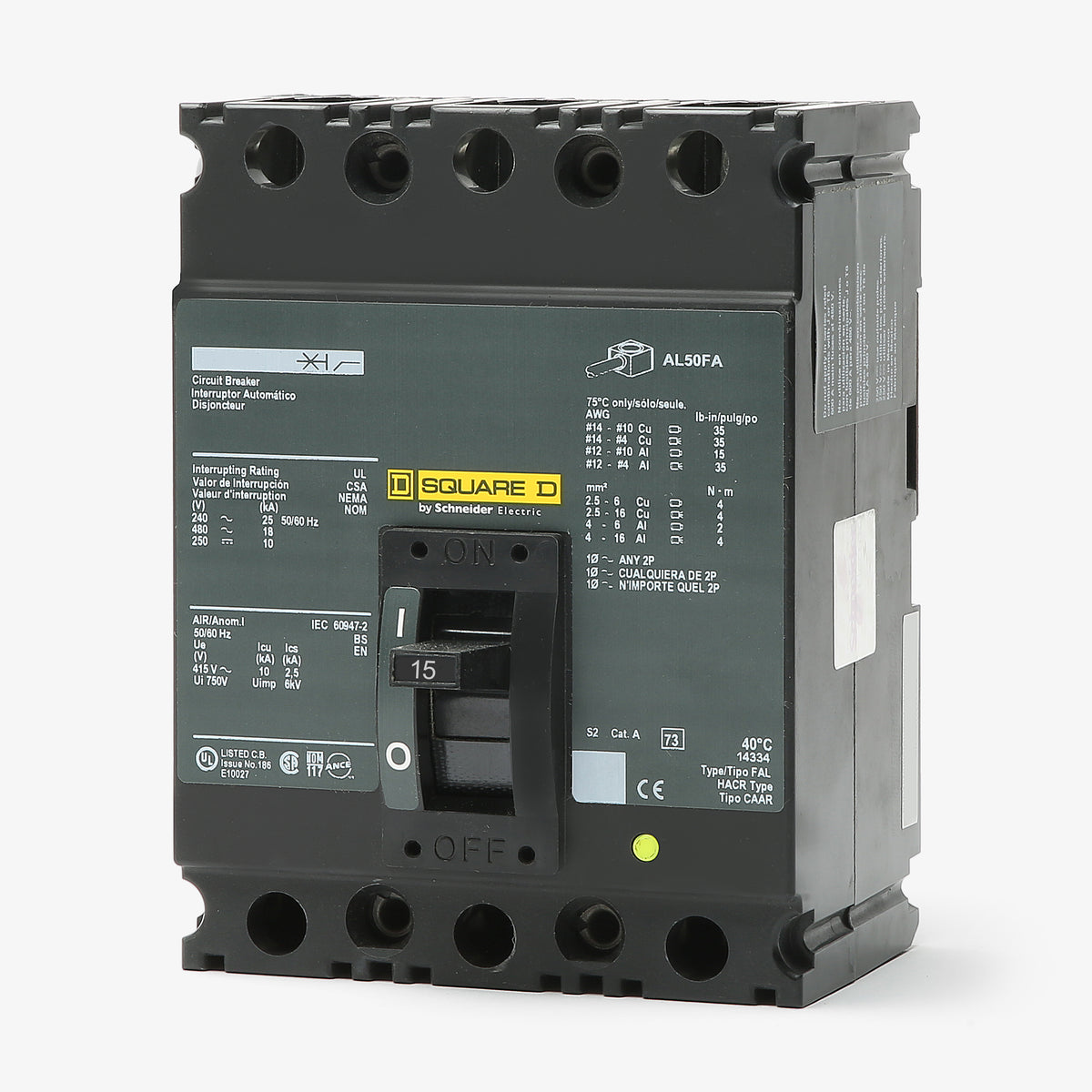

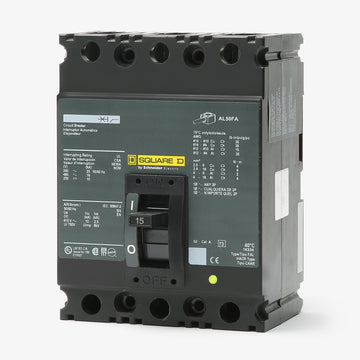

Square D FAL32015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Square D
FAL32015
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL32015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL32015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL32015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism |
Quantity
Square D FAL32015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32015-R |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Serving as a dependable component in commercial systems, the FAL32015 is a 3-pole, 15-amp molded case circuit breaker from Square D's legacy F-Frame lineup. It delivers long-time and instantaneous (LI) protection for electrical networks. This unit mount breaker installs via line and load lugs into compatible Square D enclosures and panelboards. Rated for 10kAIC at 240VAC, it features a Visi-Trip indicator for quick fault identification. This legacy model is replaced by the PowerPact BDL36015.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL32015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism |
Product FAQs
5 answersIs the FAL32015 still in active production?
The FAL32015 is part of Square D's legacy F-frame lineup. For new installations, it is typically replaced by the PowerPact B-frame series, specifically the BDL36015.
Which panelboards accept the FAL32015 breaker?
This breaker is compatible with Square D unit-mount panelboards, switchboards, and standalone enclosures. It is not compatible with I-Line panelboards, which require a different mounting style.
Is this breaker suitable for direct current systems?
Yes, the FAL32015 can be used in direct current applications up to 250VDC. When used in DC systems, it provides a 5kA interrupting capacity, which is lower than its 10kA rating for AC systems.
How is the FAL32015 installed in a panel?
It features a unit-mount design, meaning it is bolted into place and wired using the provided line and load lugs. It does not plug directly onto a busbar.
What type of protection does the fixed thermal-magnetic trip unit provide?
The fixed LI (Long-Time and Instantaneous) trip unit uses a bimetallic strip to protect against sustained overloads and a magnetic mechanism to instantly clear severe short circuits.
