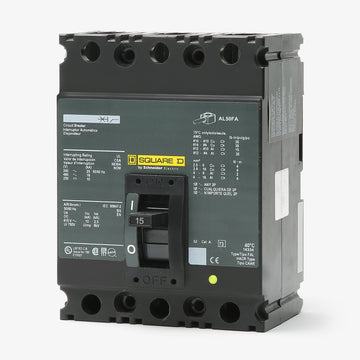

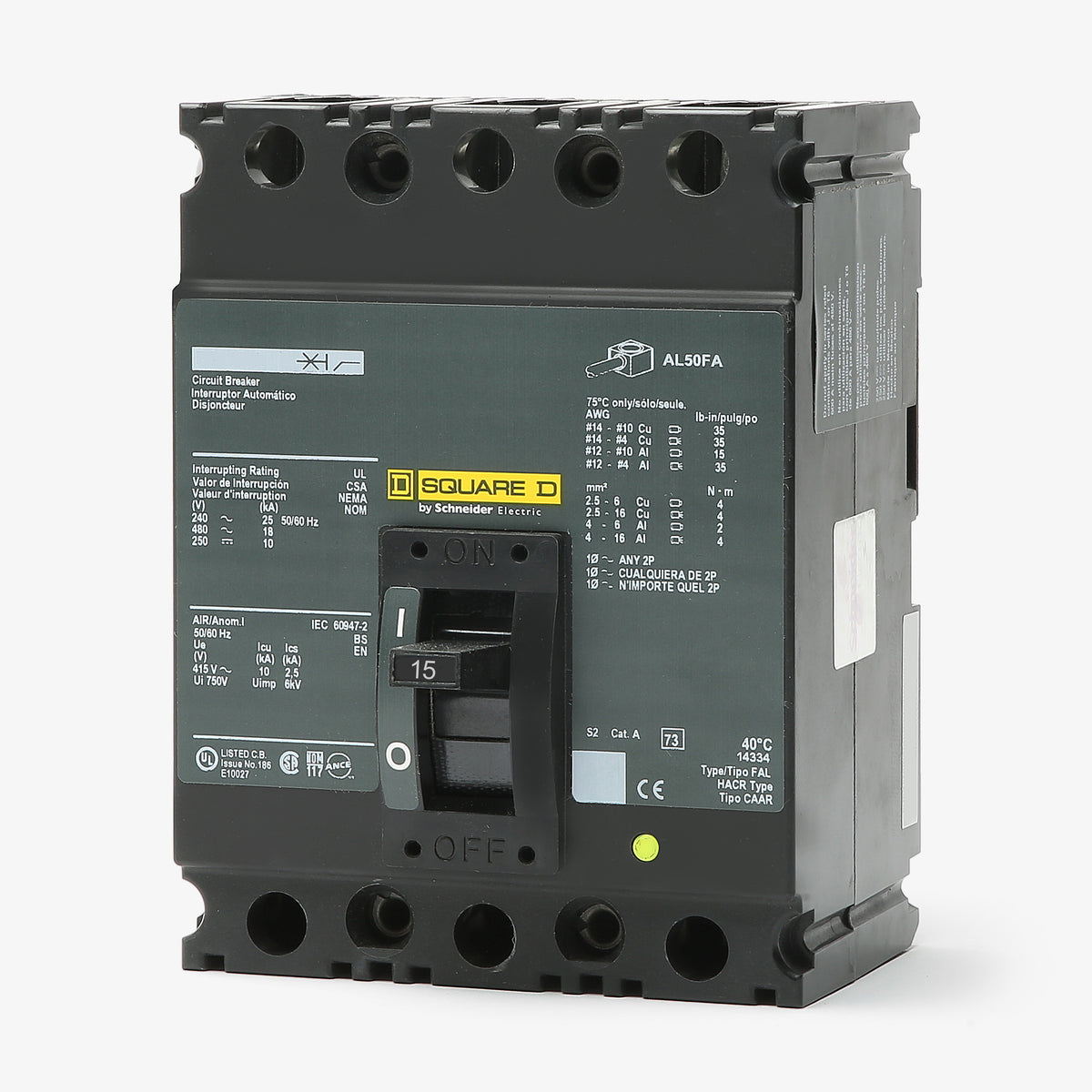

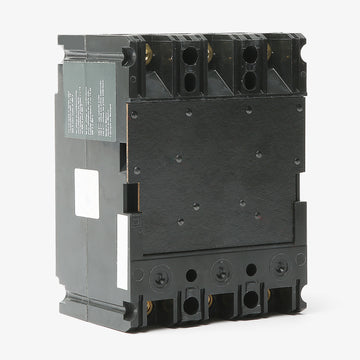

Square D FAL36015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Square D
FAL36015
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL36015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL36015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL36015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL36015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs (AL50FA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL36015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL36015-R |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs (AL50FA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial facilities, the Square D FAL36015 is a 3-pole, 15A molded case circuit breaker with thermal-magnetic LI protection. It delivers reliable performance for electrical distribution networks. This unit-mount breaker installs into Square D enclosures, control panels, and switchboards. As a legacy F-Frame device, it is frequently replaced by the HGL36015 during system upgrades. Rated for 18 kAIC at 480VAC, it features a Visi-Trip indicator to easily spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL36015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs (AL50FA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersIs the Square D FAL36015 still manufactured, or has it been replaced?
The legacy F-Frame series, including the FAL36015, has been obsoleted by Schneider Electric. The designated modern replacement is the PowerPact B-Frame series, specifically catalog number BDL36015. The new B-Frame units maintain a similar footprint to ease retrofitting in existing control panels and switchboards.
Can I install this breaker in an I-Line panelboard?
No. The L in the FAL prefix indicates that the breaker has mechanical lugs on both the line and load ends for unit mounting, also known as a feed-thru connection. For I-Line plug-on panelboards, you must use an FA prefix breaker or a compatible PowerPact I-Line breaker that features a plug-on jaw connection on the line side.
Can the FAL36015 circuit breaker be reverse fed?
Yes. Because it relies on a standard thermal-magnetic trip unit without directional solid-state electronics, the base FAL36015 can be reverse fed. Note that if you are using an add-on Micrologic ground fault module (GFM) with this breaker, the overall assembly cannot be reverse fed.

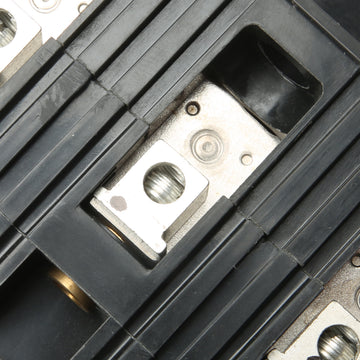

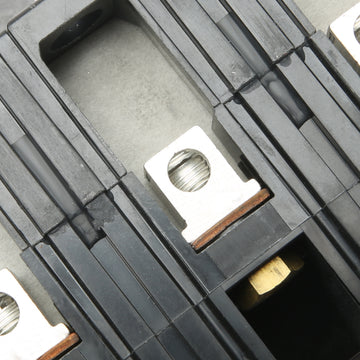

What replacement lugs are used on the FAL36015, and what wire sizes do they accept?
The standard factory-installed lugs for this 15A breaker are part number AL50FA. These mechanical lugs accept a wire range of 14 AWG to 4 AWG for copper conductors and 12 AWG to 4 AWG for aluminum conductors.
Does the FAL36015 offer adjustable trip settings?
No. This breaker is equipped with a fixed thermal-magnetic trip unit, denoted by the LI trip function code. Both the long-time thermal overload and instantaneous magnetic short-circuit protection thresholds are factory-calibrated and non-adjustable.
Is the FAL36015 suitable for use in direct current (DC) circuits?
Yes. In addition to its standard AC voltage ratings up to 600VAC, this breaker is certified for direct current applications. It carries a maximum rating of 250VDC with a 10kA interrupting capacity.
