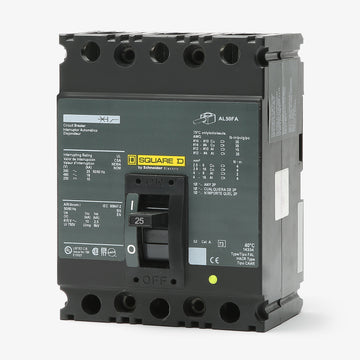

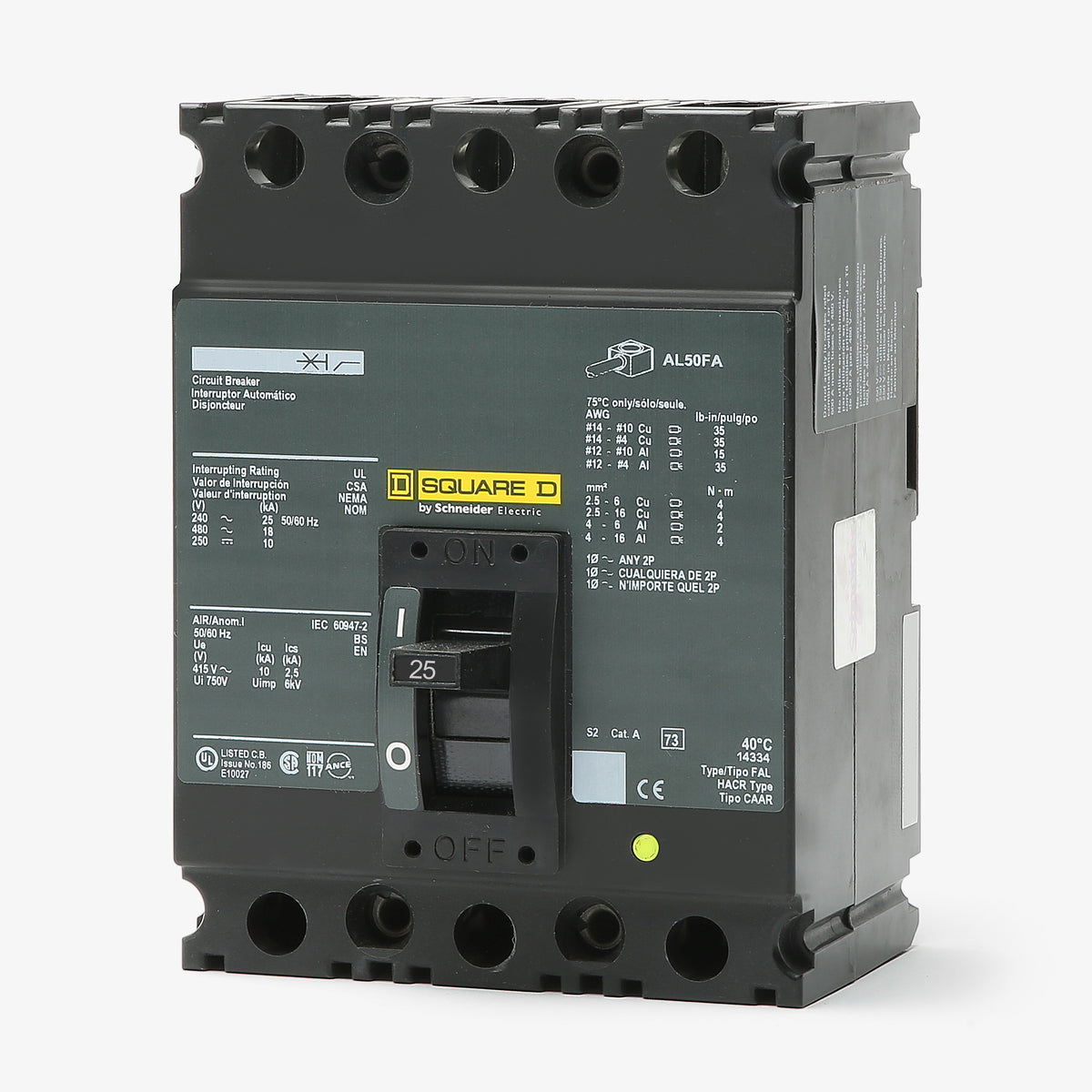

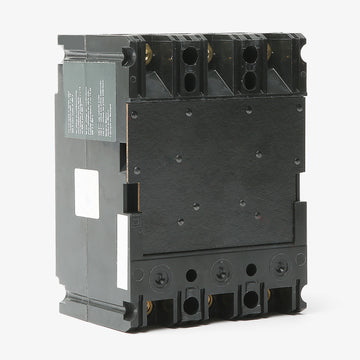

Square D FAL32025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Unit Mount
Square D
FAL32025
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL32025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL32025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL32025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32025 |
| Series | FAL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL50FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Quantity
Square D FAL32025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32025-R |
| Series | FAL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL50FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built to support robust commercial infrastructure, this 25A F-Frame breaker delivers fixed thermal and magnetic trip responses for consistent performance. The unit mounts into traditional Square D panelboards and supports reverse feed configurations for versatile wiring layouts. Featuring a 10kAIC interrupting capacity at 240VAC and a visual trip indicator, it simplifies maintenance routines. Facilities updating their infrastructure often replace this model with the newer PowerPact BDL36025.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL32025 |
| Series | FAL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL50FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersIs the Square D FAL32025 circuit breaker obsolete?
Yes, the legacy FAL frame has reached its end of commercialization. Schneider Electric designates the PowerPact B-Frame molded case circuit breakers as the modern replacement for F-frame applications.
What is the lug torque specification for the FAL32025?

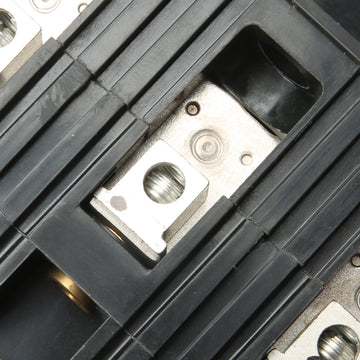

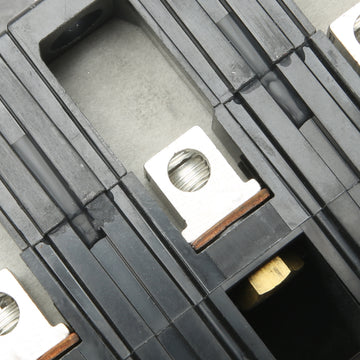

The standard AL50FA lugs require 35 lb-in of torque for 14 to 4 AWG copper or stranded aluminum wire, and 15 lb-in for 12 to 10 AWG solid aluminum wire.
Can the FAL32025 be reverse fed?
Yes. Standard thermal magnetic F-frame breakers are not marked with Line and Load designations, making them suitable for reverse feeding in backfeed applications.
Is the FAL32025 rated for DC voltage applications?
Yes, this breaker carries a DC rating of 250VDC with an interrupting capacity of 5kAIC, allowing it to be used in compatible ungrounded DC systems.
Will the FAL32025 fit in an I-Line panelboard?
No. The FAL32025 is a unit mount, feed-thru circuit breaker designed for standard enclosures and unit mount panelboards. It lacks the plug-on jaw connections required for I-Line panelboards.
