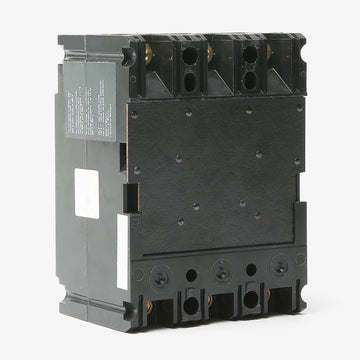

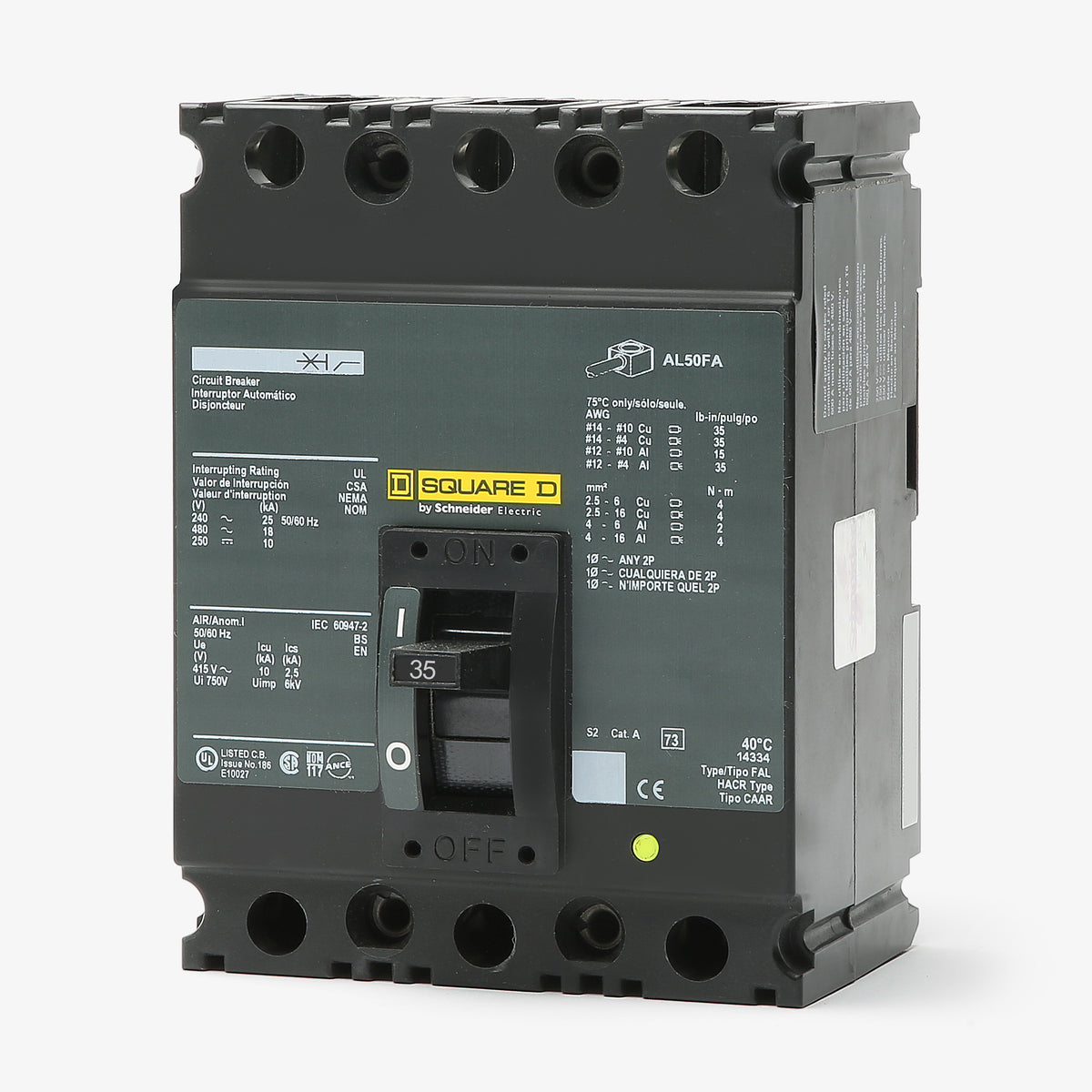

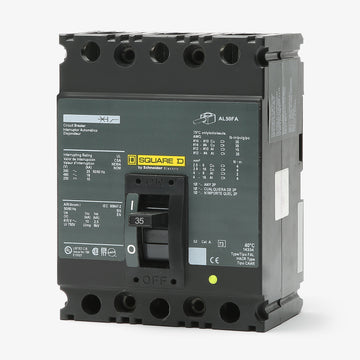

Square D FAL32035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Square D
FAL32035
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL32035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL32035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FAL32035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32035 |
| Series | FAL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Quantity
Square D FAL32035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | FAL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D FAL32035 is a 3-pole, 35A molded case circuit breaker. It provides dependable long-time and instantaneous (LI) trip functions for robust electrical system defense. This unit mount breaker features standard lug terminals for secure installation in Square D enclosures, control panels, and switchboards. As an older F-Frame model, it is replaced by the modern PowerPacT B-Frame BDL36035.Specifications
| Brand | Square D |
|---|---|
| Series | FAL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersIs the Square D FAL32035 circuit breaker still manufactured, or has it been replaced?
The FAL32035 is a legacy F-frame circuit breaker that has reached its end of commercialization. For new installations, Schneider Electric recommends the modern PowerPacT B-frame series, specifically the BDL36035, as the direct replacement.
Can the FAL32035 be used in direct current (DC) electrical systems?
Yes, this thermal magnetic circuit breaker is rated for DC applications. It supports up to 250VDC with an interrupting capacity of 5kA, which is useful for industrial DC control circuits and battery systems.
Is the FAL32035 circuit breaker suitable for reverse feeding?
Yes. Because the FAL32035 utilizes a standard thermal magnetic trip unit without directional electronic protection, it can be safely reverse fed. You must ensure proper backfeed labeling is applied per National Electrical Code (NEC) requirements.
What types of equipment are compatible with the FAL32035 breaker?
This unit mount circuit breaker is designed for installation in standard Square D enclosures, industrial control panels, and switchboards that are configured to accept legacy F-frame breakers.

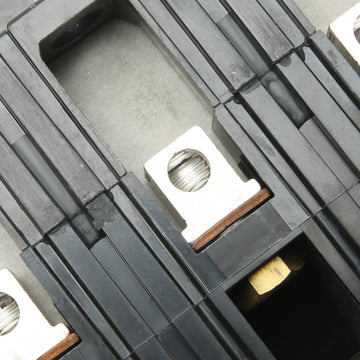

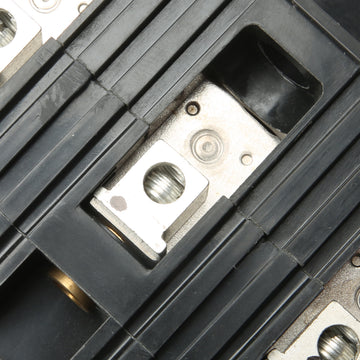

What wire sizes and materials are accepted by the lugs on the FAL32035?
The factory lugs on the FAL32035 are dual rated for both copper and aluminum conductors. They accept copper wire sizes from 14 AWG up to 1/0 AWG, and aluminum wire from 12 AWG up to 1/0 AWG.
How is the FAL32035 mounted within an electrical panel?
The FAL32035 is a unit mount, feed-thru circuit breaker. It does not plug onto a busbar or use I-Line connections. Instead, it bolts directly to the panel backplate and requires wire connections at both the line and load side lugs.
