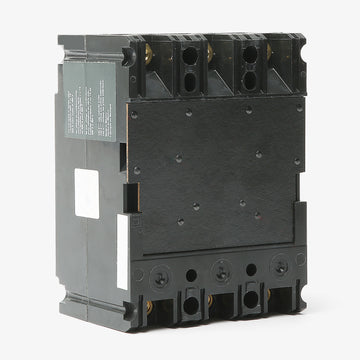

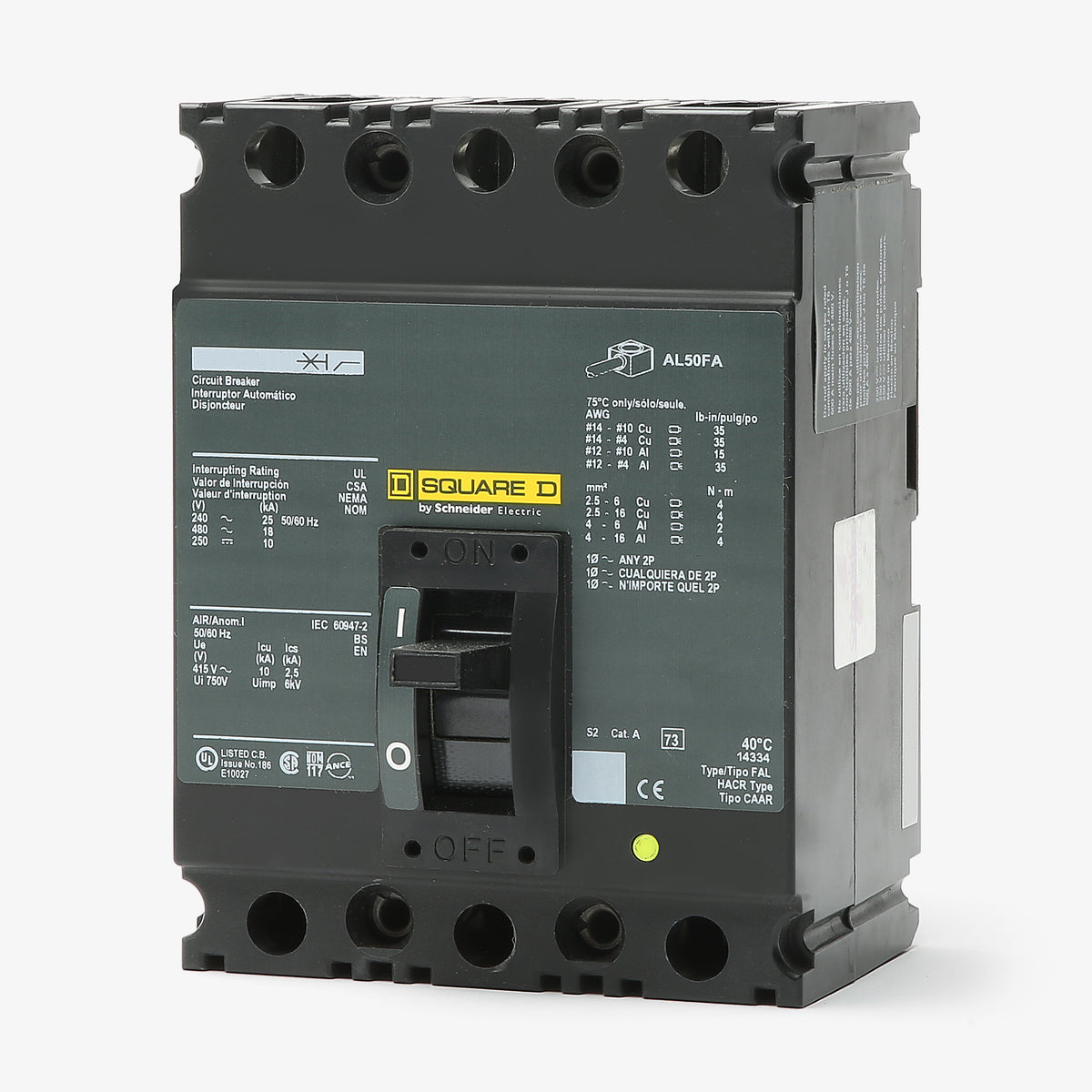

Square D FAL34015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Square D
FAL34015
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL34015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL34015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D FAL34015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL34015-R |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the FAL34015 is a 15A, 3-pole molded case circuit breaker from Square D's legacy F-Frame series. It provides dependable thermal-magnetic protection with fixed long-time and instantaneous trip functions. This unit-mount breaker fits into Square D enclosures, switchboards, and panelboards. For modern upgrades, it is replaced by the PowerPacT H-Frame (HGL36015). Rated at 18kAIC at 480VAC, it features Visi-Trip indication and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
4 answersHas the Square D FAL34015 been discontinued?
Yes, Schneider Electric has discontinued the legacy F-Frame series, officially superseding it with the PowerPact B-Frame. Sourcing an original FAL34015 for maintenance allows for a direct drop-in replacement, avoiding the need for retrofit adapter brackets or bus modifications.
What are the magnetic hold and trip ratings for the FAL34015?
This 15A thermal-magnetic breaker features a fixed AC magnetic hold current of 275A and a fixed magnetic trip threshold of 600A.
Will the FAL34015 fit into standard residential load centers?
No. The FAL frame is a commercial and industrial molded case circuit breaker engineered for heavy-duty Square D panelboards, switchboards, and industrial enclosures. It is not compatible with QO or Homeline residential load centers.
Which lug kit is factory-installed on the FAL34015?

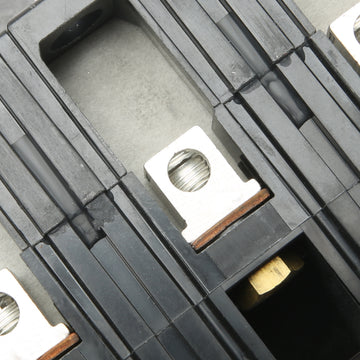

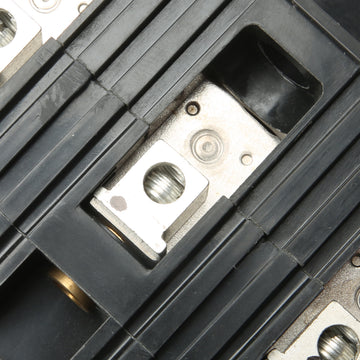

This breaker is equipped standard with AL50FA mechanical lugs on the line and load terminals. The standard lugs are dual-rated for appropriate copper or aluminum conductors.
