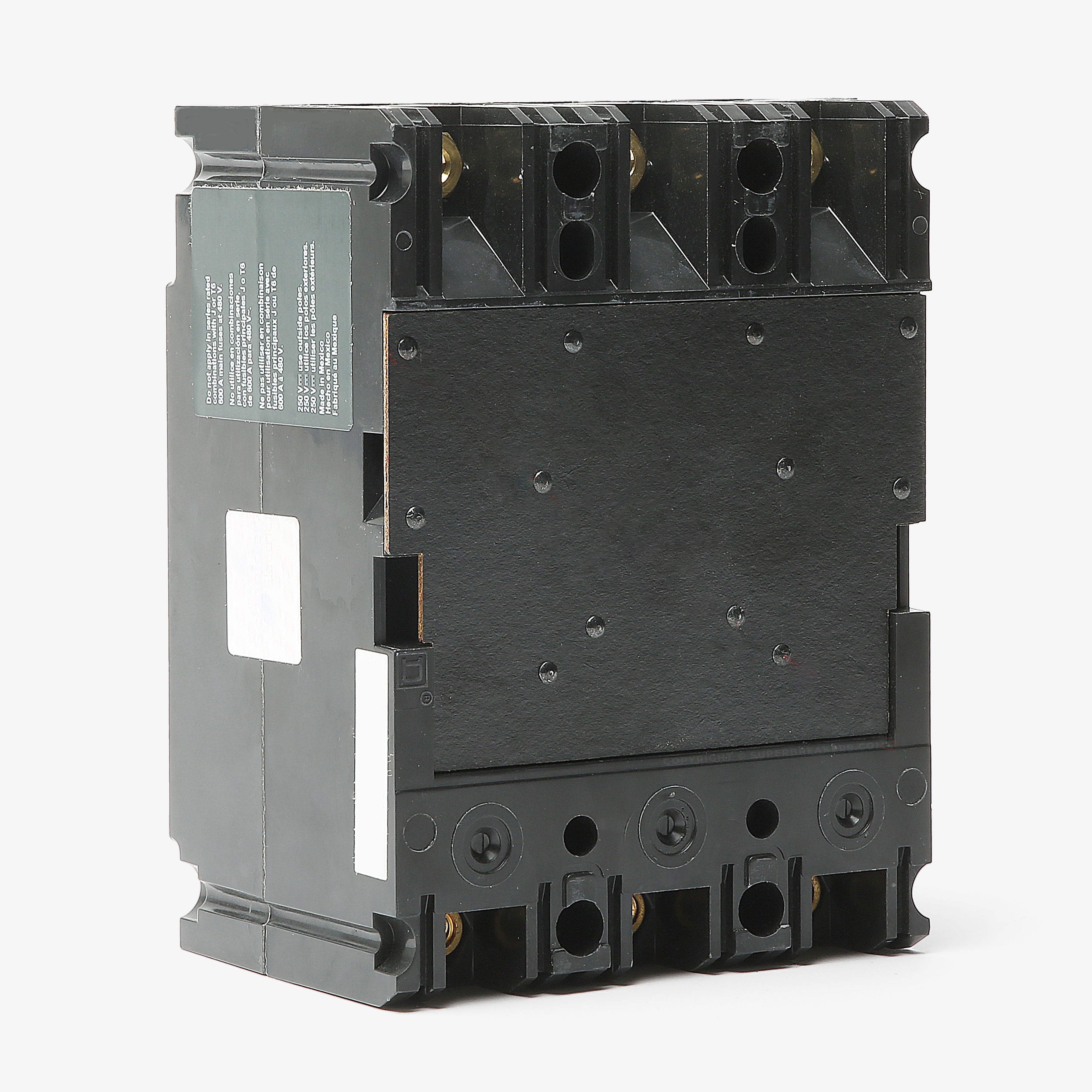

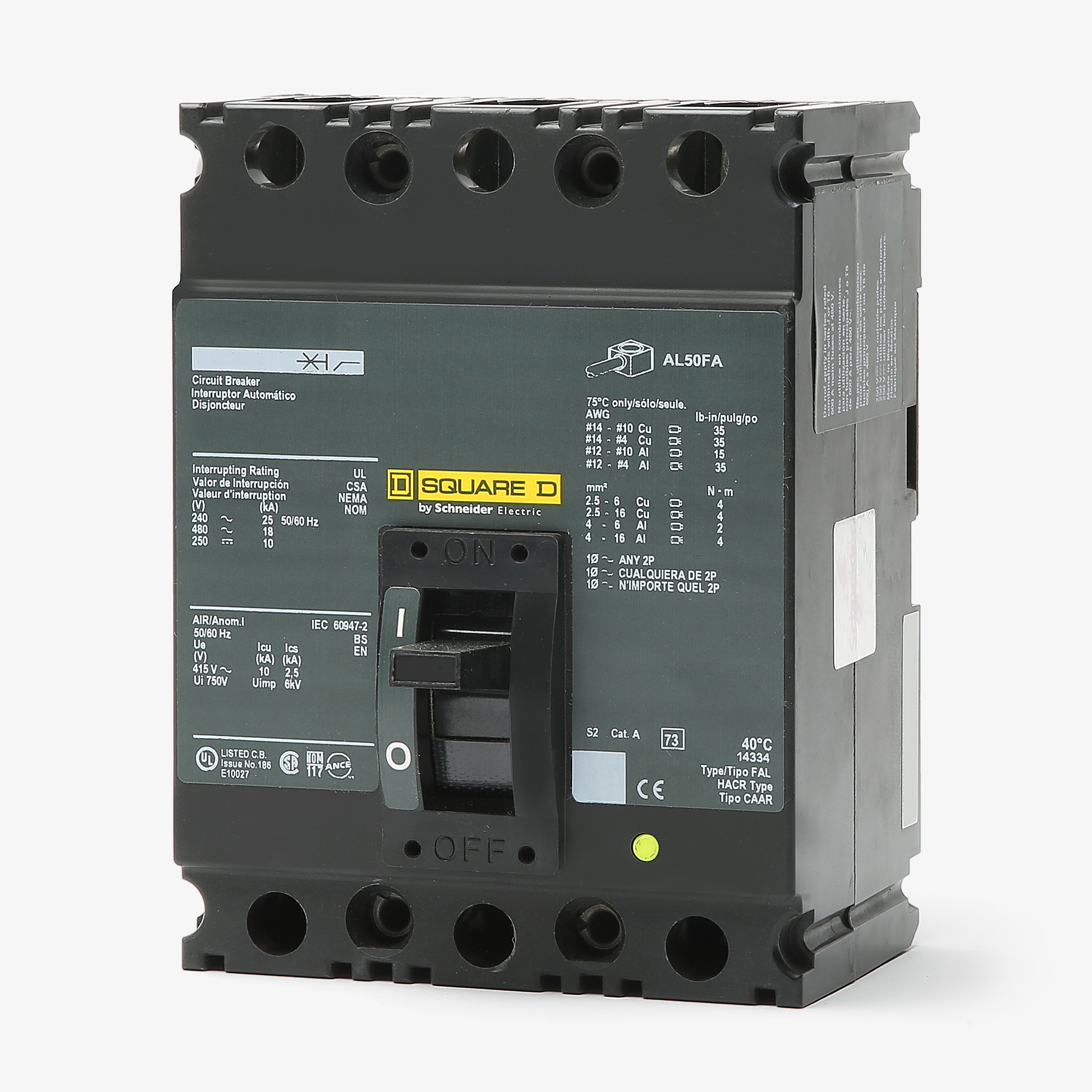

Square D FAL34035 - 35A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU FAL34035
5.0
Rated 5.0 out of 5 stars
33 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D FAL34035 - 35A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU FAL34035
5.0
Rated 5.0 out of 5 stars
33 Reviews
Select Item Condition
Earn 435 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D FAL34035 - 35A 3 Pole Molded Case Circuit Breaker

Re-Certified

$435.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for commercial and industrial applications, the FAL34035 is a 3-pole, 35A molded case circuit breaker from Square D. This unit-mount breaker installs into compatible Square D enclosures and switchboards. As part of the legacy F-Frame family, it is replaced by the modern PowerPact BDL36035. Rated at 18 kAIC at 480VAC, it features fixed thermal and magnetic trip settings. The breaker includes AL100FA mechanical lugs and carries a HACR rating for HVAC equipment.

Specifications

Brand Square D
Series FAL
Amperage 35A
Voltage 240VAC, 480VAC, 250VDC
Poles 3
Phase 3
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D Enclosures, Switchboards, Panelboards (Unit Mount)
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-1/0 AWG (Cu), 12-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 14 AWG (Cu) / 12 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment

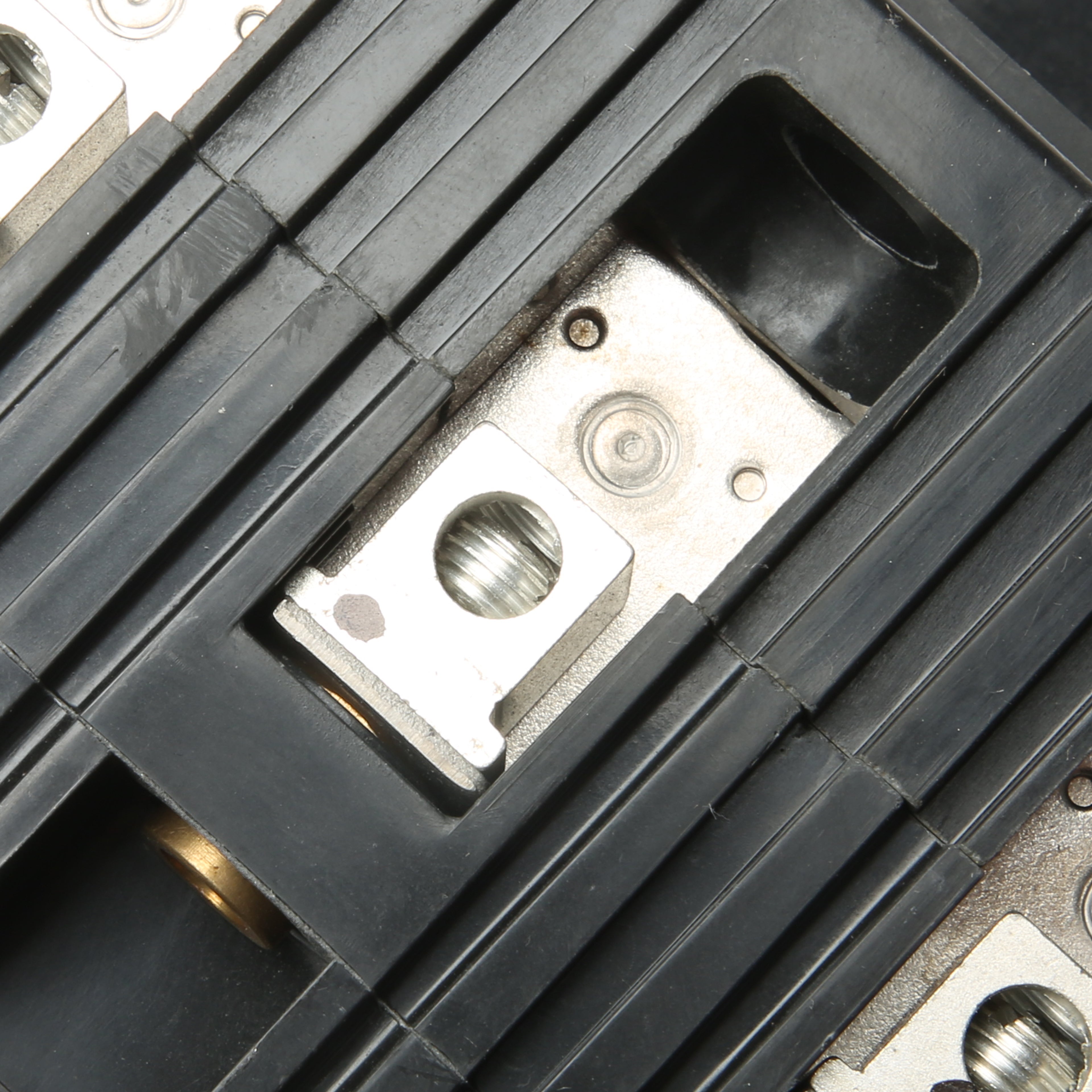

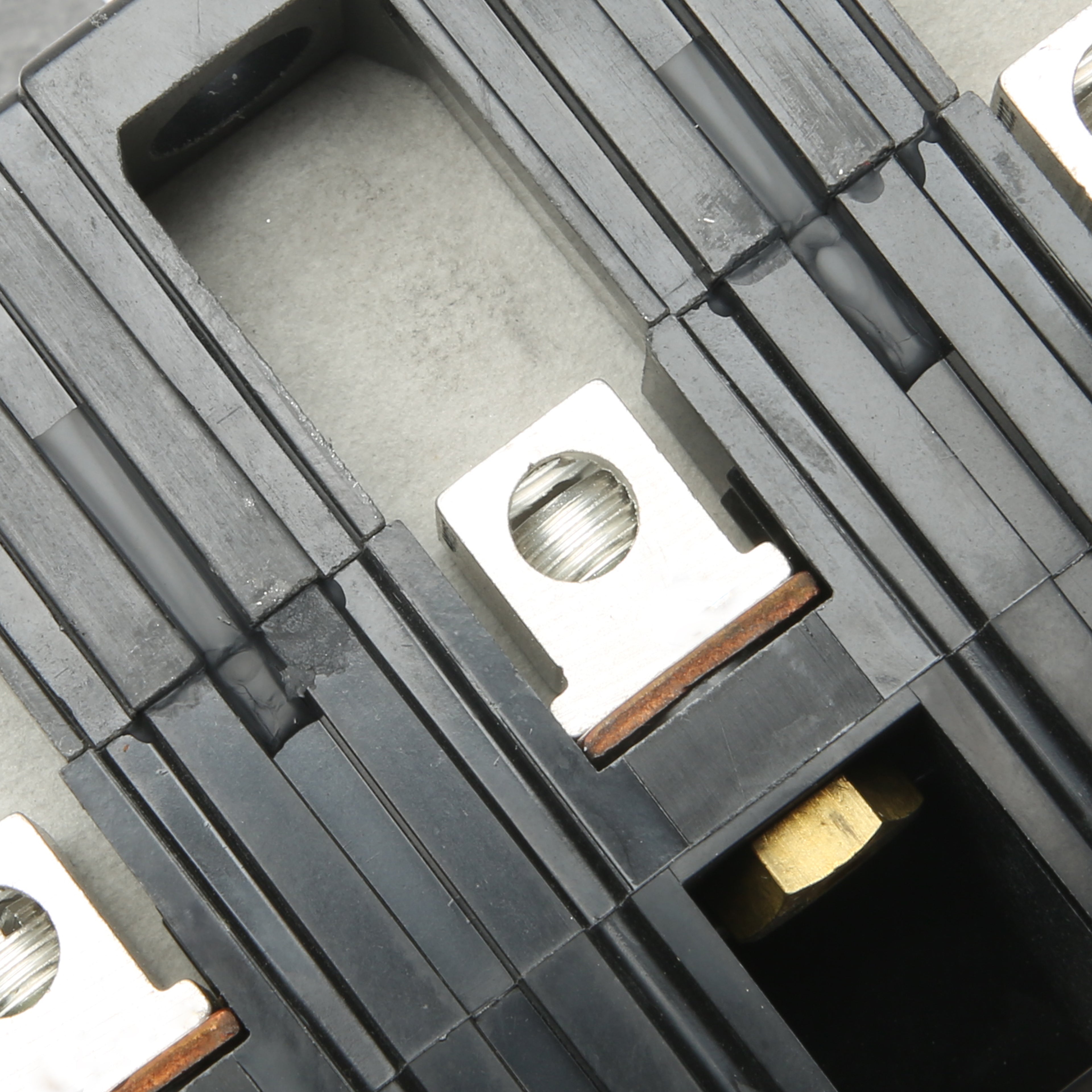

Accessories Includes AL100FA Mechanical Lug Kit
Standards CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Visual Trip Indicator
