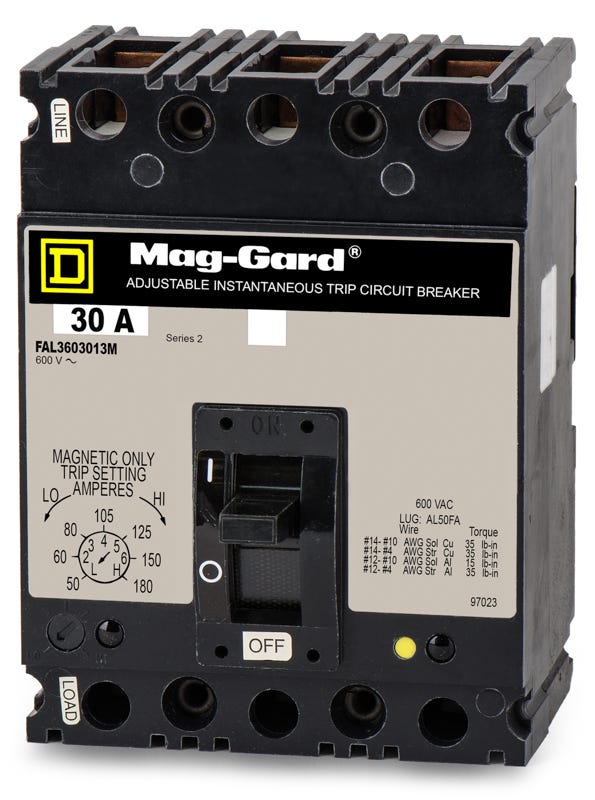

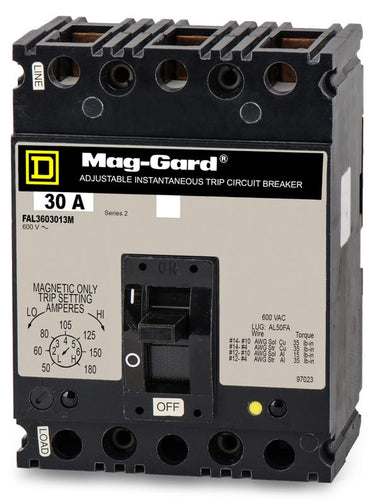

Square D FAL3603013M 3 Pole Circuit Breaker
Free Shipping Over $99

Square D FAL3603013M Motor Circuit Protector

  • 30A
  • 3 Pole
  • Unit Mount
Square D FAL3603013M
Motor Circuit Protector
Brand Square D
SKU FAL3603013M
Select Item Condition
Earn 2030 SuperPoints
  • 30A
  • 3 Pole
  • Unit Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D FAL3603013M 3 Pole Circuit Breaker

Square D FAL3603013M - 30A 3 Pole Motor Circuit Protector

New

$2,030.00 In Stock

Quantity

Similar Items

Description Specifications SuperClub Warranties Shipping Reviews 5.0 (39)

Description

Rated for 30 amps, the Square D FAL3603013M is a 3-pole magnetic-only motor circuit protector. It safeguards industrial motor branch circuits against short circuits when paired with overload protection. This unit-mount MCCB installs into Square D motor control centers and combination starters. It is replaced by the HJL36030M71 for system upgrades. An adjustable 50-180A magnetic trip accommodates various motor inrush demands. It delivers reliable performance and an 18kAIC rating at 480VAC.

Specifications

Key specifications
Brand Square D
Part Number FAL3603013M
Series FAL
Amperage 30A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 600VAC
Phase 3
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC
Electrical ratings
Amperage Range 50-180A
Fit and installation
Frame Type FAL
Terminal Type Lugs
For Use With Motor Control Centers, Combination Starters
Wire Gauge 14-4 AWG (Cu), 12-4 AWG (Al)
Max Wire 4 AWG
Min Wire 14 AWG
Protection and operation
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Standards and features
Available Options Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch
Accessories Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features Motor Circuit Protector, Visual Trip Indicator
