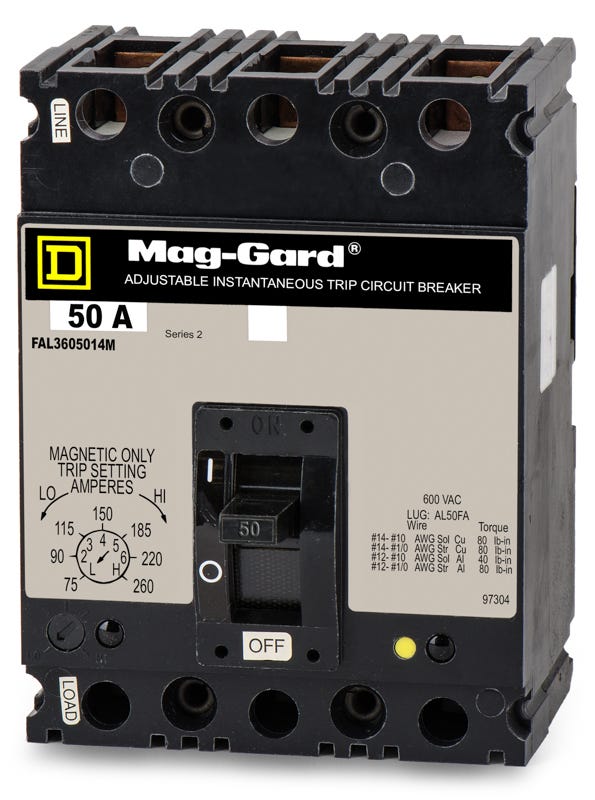

Square D FAL3605014M 3 Pole Circuit Breaker
Free Shipping Over $99

Square D FAL3605014M Motor Circuit Protector

  • 50A
  • 3 Pole
  • Unit Mount
Square D FAL3605014M
Motor Circuit Protector
Brand Square D
SKU FAL3605014M
Select Item Condition
Earn 1811 SuperPoints
  • 50A
  • 3 Pole
  • Unit Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D FAL3605014M 3 Pole Circuit Breaker

Square D FAL3605014M - 50A 3 Pole Motor Circuit Protector

New

$1,811.57 In Stock

Quantity

Similar Items

Description Specifications SuperClub Warranties Shipping Reviews 5.0 (39)

Description

Built specifically for motor control, the Square D FAL3605014M delivers robust magnetic-only protection. This Mag-Gard device isolates short circuits rapidly, working with separate overload relays for complete safety. The 3-pole, 50A unit-mount protector fits standard industrial enclosures. For facilities updating infrastructure, this model is officially replaced by the HJL36050M72 series. Equipped with a 75-260A adjustable trip, it provides an 18kAIC rating at 480VAC.

Specifications

Key specifications
Brand Square D
Part Number FAL3605014M
Series FAL
Amperage 50A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 600VAC
Phase 3
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC
Electrical ratings
Amperage Range 75-260A
Fit and installation
Frame Type FAL
Terminal Type Lugs
For Use With Motor Control Centers, Motor Starters
Wire Gauge 14-1/0 AWG (Cu), 12-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Protection and operation
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release
Accessories Factory-set Magnetic Trip Range: 75-260A (Suffix 14M)
Standards CSA C22.2 No. 5, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Motor Circuit Protector, Visual Trip Indicator
