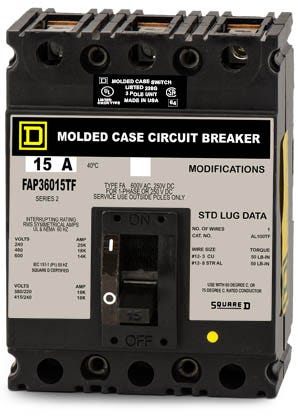

Square D FAP36015TF Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
FAP36015TF
Molded Case Circuit Breaker
Brand
Square D
SKU
FAP36015TF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAP36015TF - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Utilizing a secure bolt-on mounting style, this 15A F-frame circuit breaker is engineered for heavy-duty 600VAC industrial distribution. It fastens into Square D panelboards and motor control centers, ensuring a vibration-resistant connection. The TF suffix designates a top-feed lug arrangement, accommodating specialized wiring layouts in commercial facilities. It delivers reliable thermal-magnetic LI protection with a 14kAIC rating at 600VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAP36015TF |
| Series | FAP |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Motor Control Centers, Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Top Feed |
Product FAQs
6 answersWhat does the TF suffix indicate on the FAP36015TF?
The TF suffix designates a top-feed lug arrangement. This configuration accommodates specialized wiring layouts in commercial facilities and industrial panels.
Can I install the FAP36015TF in a Square D I-Line panelboard?
No, the FAP36015TF is a bolt-on circuit breaker designed for standard panelboards and motor control centers. For I-Line distribution panels, you need the FA series equivalent, which features a plug-on jaw connection.
What is the difference between the FAP and FA series breakers?
Both are Square D F-frame circuit breakers, but they use different mounting methods. The FAP series is designed for bolt-on installations, while the FA series is designed with plug-on jaws specifically for I-Line distribution panels.
Is the Square D F-frame series still the current standard for new installations?
The F-frame is considered a legacy MCCB. For new installations or upgrades, Square D often recommends the PowerPact H-frame series, though F-frame breakers remain available for direct replacements in existing equipment.
Can I adjust the trip settings on the FAP36015TF?
No, this breaker features fixed thermal and fixed magnetic trip settings. It does not offer field-adjustable trip dials.
What does the LI trip function code mean on this breaker?
The LI code indicates that the thermal magnetic trip unit provides Long-Time protection against overloads and Instantaneous protection against short circuits.
