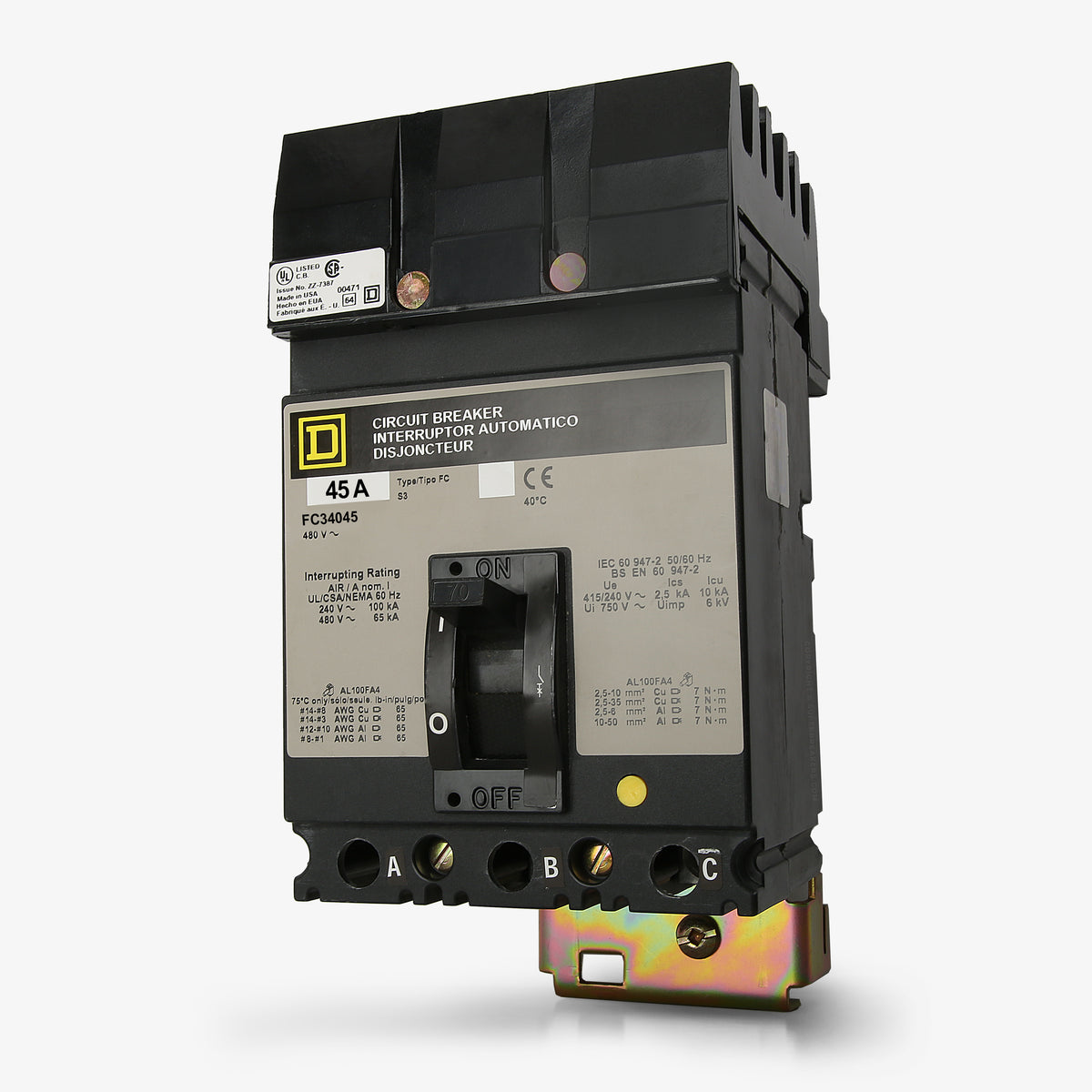

Square D FC34045 Molded Case Circuit Breaker
- 45A
- 3 Pole
- I-Line
Square D
FC34045
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34045 - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D FC34045 - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34045 |
| Series | FC |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Sold out
Quantity
Square D FC34045 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | FC |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Delivering 65kAIC at 480VAC, this 45-amp molded case circuit breaker provides essential thermal-magnetic protection for demanding electrical networks. It secures into Square D I-Line panelboards, utilizing the proven plug-on phase connection system for rapid deployment. The F-frame design includes a Visi-Trip indicator for quick fault identification. When migrating to modern PowerPact architecture, this component is replaced by the HJA36045 model.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34045 |
| Series | FC |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the FC34045?

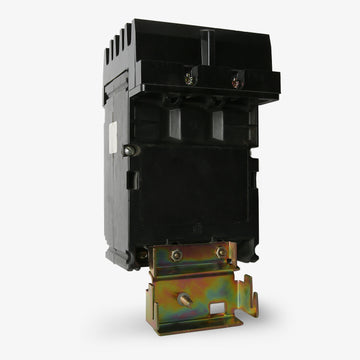

This breaker mounts directly onto Square D I-Line busways and panelboards. The line side features a plug-on jaw connection designed specifically for the I-Line bus system.
How much mounting space does this breaker require on an I-Line bus?
The FC34045 is a legacy F-frame breaker that requires 4.5 inches of mounting space on the I-Line bus. Each of the three poles is 1.5 inches wide.
Does this breaker come with both line and load side lugs?

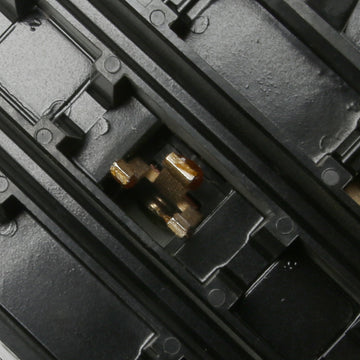

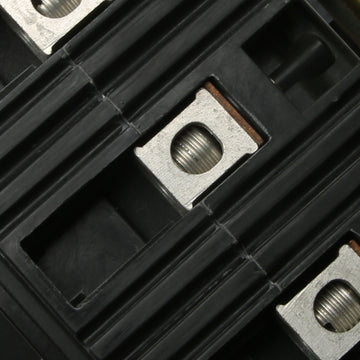

No. Because it is an I-Line style plug-in breaker, the line side uses jaw connectors that attach directly to the panel bus. The load side includes standard mechanical lugs for wire termination.
What is the difference between an FC frame and a standard FA frame breaker?
The FC frame provides a higher interrupting capacity than the standard FA frame. While standard FA breakers typically cap at 18kA at 480VAC, the FC frame is rated for 65kA at 480VAC to support systems with higher available fault currents.
Are the thermal and magnetic trip thresholds adjustable on the FC34045?
No, this breaker features fixed thermal and fixed magnetic trip settings. It does not have adjustable dials for long-time pickup or instantaneous trip points.
Can this circuit breaker be reverse fed?
No. I-Line breakers have a specific plug-on jaw for the line side and mechanical lugs for the load side, making them physically unsuitable for reverse feeding applications.
