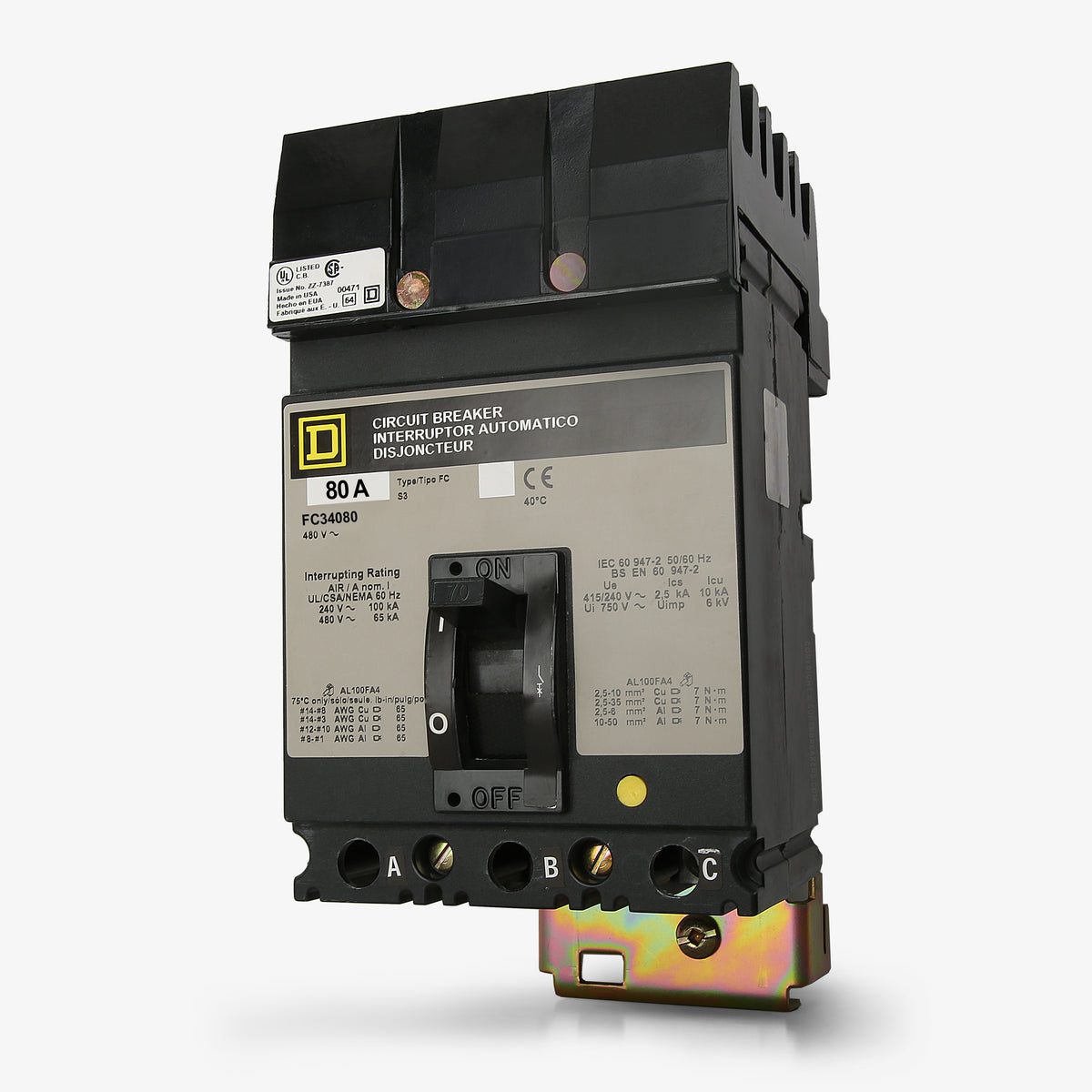

Square D FC34080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- I-Line
Square D
FC34080
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FC34080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34080 |
| Series | FC |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (AL100FA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Quantity
Square D FC34080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34080-R |
| Series | FC |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (AL100FA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Part of Square D's F-Frame series, the FC34080 is an 80A, 3-pole MCCB designed for commercial and industrial applications. It provides dependable long-time and instantaneous (LI) thermal-magnetic protection. The breaker features an I-Line plug-in connection, mounting into Square D I-Line panelboards. For modern upgrades, it is replaced by the PowerPact HJA36080. Rated for 65kAIC at 480VAC, it delivers extra-high interrupting capacity and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34080-R |
| Series | FC |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (AL100FA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Product FAQs
7 answersWhat panelboards are compatible with the Square D FC34080?
This breaker is built with an I-Line plug-on connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It will not fit in standard NF, NQ, or QO load centers.
How does the FC34080 differ from the FA34080 or FH34080?
The "FC" prefix indicates an extra-high interrupting capacity within the legacy F-frame series. While standard FA and FH frames offer lower AIC ratings, the FC34080 is rated for up to 65kAIC at 480VAC and 100kAIC at 240VAC.
Is the FC34080 still actively manufactured?
The Square D legacy F-frame series has been discontinued and replaced by the PowerPact H-frame series. For a modern equivalent that fits the same I-Line panelboards, an H-frame breaker such as the HJA36080 is the direct replacement.
Do I need to purchase lugs for both the line and load sides of this breaker?

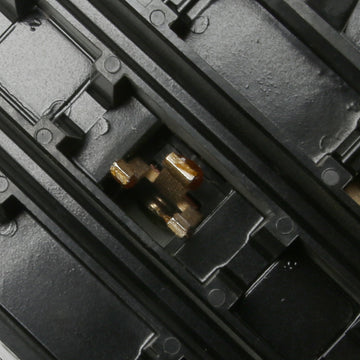

No. Because this is an I-Line breaker, the line side features a factory-installed plug-on jaw that grips the panelboard busbar. Standard wire lugs, such as the AL100FA, are only required on the load side.
What is the recommended tightening torque for the load lugs on the FC34080?
The standard AL100FA load lugs used on this 80-amp breaker are typically torqued to 50 lb-in (5.6 N.m) for 14 to 1/0 AWG copper or aluminum conductors. Always verify the exact torque requirement printed on the physical breaker label before terminating.
Is the FC34080 circuit breaker HACR rated?
Yes, this thermal-magnetic breaker carries an HACR rating, making it approved for protecting heating, air conditioning, and refrigeration equipment motor loads.
Can I reverse-feed the FC34080 breaker?
No. I-Line breakers feature a specialized plug-on jaw designed specifically for line-side busbar connections and cannot be reverse-fed. Applications requiring reverse feeding must use a unit-mount circuit breaker with lugs on both ends.
