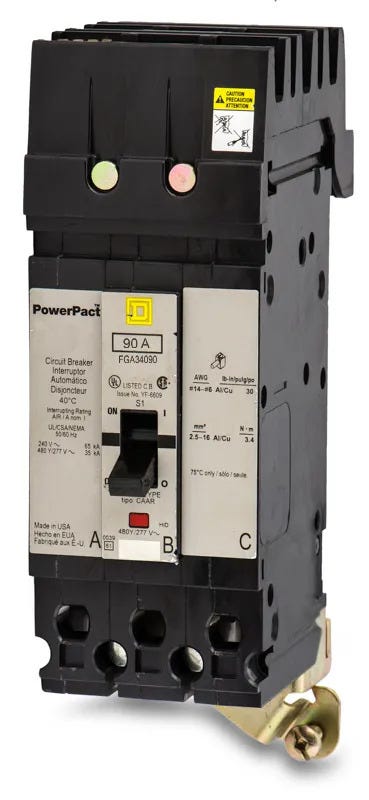

Square D FGA34090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- I-Line
Square D
FGA34090
Molded Case Circuit Breaker
Brand
Square D
SKU
FGA34090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FGA34090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, this 90A F-frame circuit breaker provides essential long-time and instantaneous trip functions. The device mounts into legacy Square D I-Line panelboards and switchboards. Because it only requires 3 inches of mounting space, it acts as the preferred replacement over the newer HGA36090, which demands a wider 4.5-inch slot. Capable of interrupting 35kA at 480Y/277V, the breaker includes standard load lugs and is fully HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | FGA34090-R |
| Series | FGA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | FGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the FGA34090 circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side and standard lugs on the load side.
Can I replace an FGA34090 with a newer PowerPact H-frame breaker?
While the PowerPact H-frame (such as the HGA36090) is the modern replacement for legacy F-frame breakers, it requires 4.5 inches of mounting space. The FGA34090 only requires 3 inches of mounting space. If your existing panel configuration is tight, you must use the legacy F-frame to fit the 3-inch slot.
What wire sizes do the load lugs on the FGA34090 accept?
The factory-installed load lugs accept copper or aluminum wire ranging from 14 AWG to 1/0 AWG.
What does the G in the FGA frame designation indicate?
The G denotes the interrupting rating tier for this specific F-frame breaker. It provides a 65kAIC rating at 240VAC and a 35kAIC rating at 480VAC.
How does the I-Line connection mount into the panel?
The breaker features plug-in jaws on the line side that press directly onto the I-Line panelboard bus assembly. The load side uses standard mechanical lugs for wire termination.
Is the trip unit on the FGA34090 adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard Long-Time and Instantaneous (LI) protection functions that cannot be field-adjusted.
