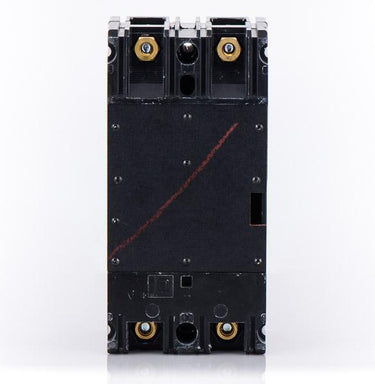

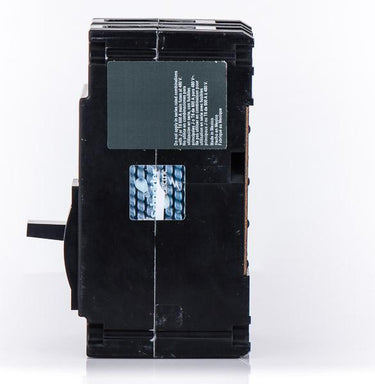

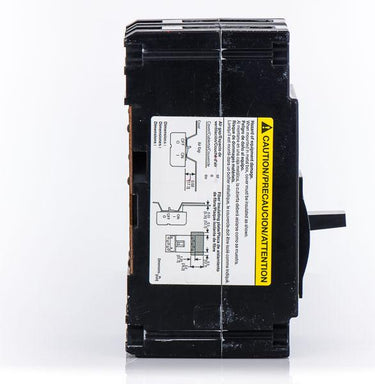

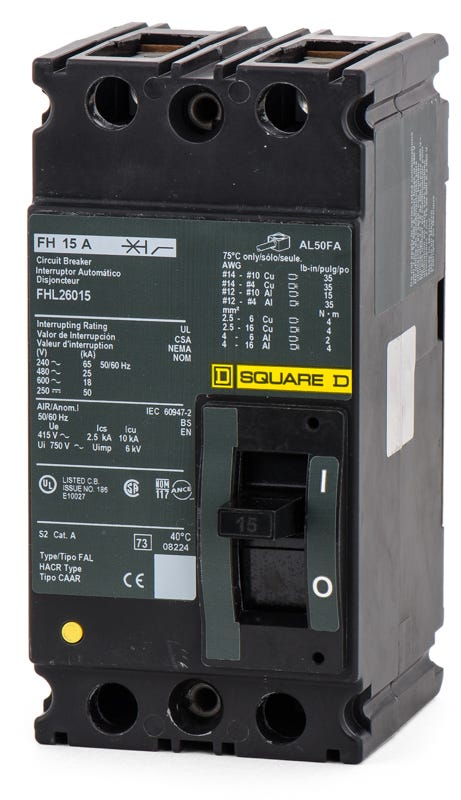

Square D FHL26015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Square D
FHL26015
Molded Case Circuit Breaker
Brand
Square D
SKU
FHL26015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHL26015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FHL26015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Amperage | 15A |
|---|---|
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Functions | LI - Long-Time and Instantaneous Trip |
| Protection | Standard |
| Poles | 2 |
|---|---|
| Phase | 1 |
| Interrupting Rating | 25kAIC at 480V |
| Mounting Type | Unit |
|---|---|
| Frame Type | FHL |
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 4.13 |
| Width (in) | 3 |
| Height (in) | 6.4 |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Configuration | Single |
| Approval | CSA, HACR, UL |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Temperature Rating | 40C |
| Series | FHL |
|---|---|
| Brand | Square D |
| MPN | FHL26015 |
| UPC | 785901368533 |
Quantity
Square D FHL26015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Amperage | 15A |
|---|---|
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Functions | LI - Long-Time and Instantaneous Trip |
| Protection | Standard |
| Poles | 2 |
|---|---|
| Phase | 1 |
| Interrupting Rating | 25kAIC at 480V |
| Mounting Type | Unit |
|---|---|
| Frame Type | FHL |
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 4.13 |
| Width (in) | 3 |
| Height (in) | 6.4 |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Configuration | Single |
| Approval | CSA, HACR, UL |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Temperature Rating | 40C |
| Series | FHL |
|---|---|
| Brand | Square D |
Similar Items
35A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Constructed for heavy-duty applications, this 15-amp, two-pole MCCB delivers essential long-time and instantaneous protection. This unit-mount device fits into compatible Square D switchboards and enclosures. The PowerPact H-Frame HGL26015 serves as its modern substitute. Capable of interrupting 65kA at 240VAC and 18kA at 600VAC, it provides robust defense against severe electrical faults.Specifications
| Amperage | 15A |
|---|---|
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Functions | LI - Long-Time and Instantaneous Trip |
| Protection | Standard |
| Poles | 2 |
|---|---|
| Phase | 1 |
| Interrupting Rating | 25kAIC at 480V |
| Mounting Type | Unit |
|---|---|
| Frame Type | FHL |
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 4.13 |
| Width (in) | 3 |
| Height (in) | 6.4 |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Configuration | Single |
| Approval | CSA, HACR, UL |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Temperature Rating | 40C |
| Series | FHL |
|---|---|
| Brand | Square D |
| MPN | FHL26015 |
| UPC | 785901368533 |
Product FAQs
6 answersWhat is the modern replacement for the legacy FHL26015?
The FHL26015 is a legacy F-Frame breaker. Schneider Electric has replaced this series with the PowerPact H-Frame. The direct modern equivalent for this 15A, 600VAC unit is the HGL26015.
Will the FHL26015 fit into an I-Line panelboard?
No. This is a unit-mount, feed-thru circuit breaker with line and load lugs. It does not have the plug-on jaw connections required for Square D I-Line panelboards.
Is this breaker suitable for DC control circuits?
Yes, the FHL26015 is rated for DC applications up to 250VDC, providing a 10kA interrupting capacity for direct current systems.
What wire gauge and material are supported by the standard lugs?
The factory lugs are dual-rated for both copper and aluminum (Cu/Al) conductors, accepting wire sizes from 14 AWG up to 1/0 AWG.
Can this breaker be used for HVAC equipment protection?
Yes, the FHL26015 is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration motor loads.
Are the trip settings adjustable on the FHL26015?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (thermal) and instantaneous (magnetic) trip thresholds are factory set and cannot be adjusted in the field.
