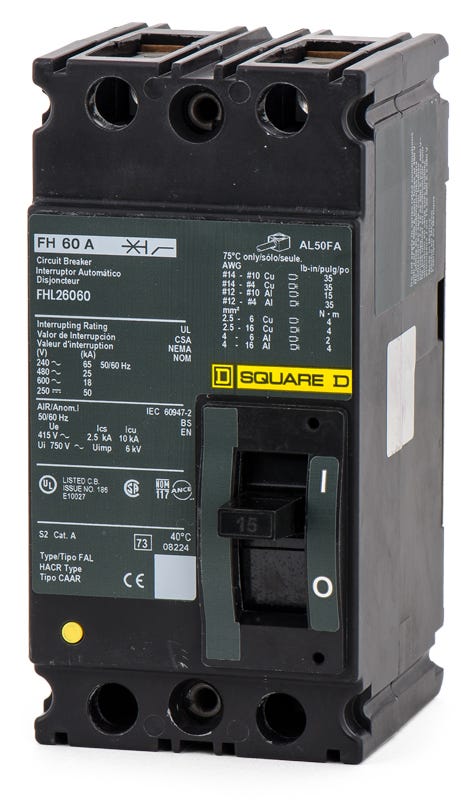

Square D FHL26060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Square D
FHL26060
Molded Case Circuit Breaker
Brand
Square D
SKU
FHL26060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHL26060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FHL26060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHL26060 |
| Series | FHL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Sold out
Quantity
Square D FHL26060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | FHL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial and industrial environments, the Square D FHL26060 is a 60A, 2-pole molded case circuit breaker. It utilizes proven thermal-magnetic trip technology for consistent performance. Designed as a unit-mount device, it fits seamlessly into Square D panelboards and switchboards. For modernizations, this legacy F-frame component crosses over to the HGL26060 replacement. The breaker handles up to 600VAC and features a 65kAIC rating at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHL26060 |
| Series | FHL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures and panels accept the FHL26060 breaker?
This unit mount breaker is designed for installation in compatible Square D enclosures, switchboards, and panelboards configured for legacy F-frame feed-thru breakers.
What is the modern replacement for the legacy FHL26060?
The PowerPacT H-frame series is the modern replacement for legacy F-frame breakers. The Square D HGL26060 is the direct crossover for this specific model.
How is this breaker mounted in a panel?
This is a unit mount, feed-thru circuit breaker. It fastens directly to the mounting surface or backpan and uses wire lugs for both line and load connections, distinguishing it from plug-on I-Line variants.
What wire sizes are compatible with the lugs on this breaker?
The factory terminals on this breaker accept copper or aluminum conductors ranging from 14 AWG to 1/0 AWG.
How does the FHL series differ from the standard FAL series?
The FHL series is built with a higher interrupting capacity than the standard FAL series. This allows the FHL26060 to be safely installed in commercial and industrial electrical systems with higher available fault currents.
What are the primary safety considerations when installing this F-frame breaker?
Installation must be performed by a qualified electrician with the power completely de-energized. Ensure the available fault current at the installation point does not exceed the breaker's interrupting ratings, such as 25kA at 480V, to prevent catastrophic failure during a short circuit.
