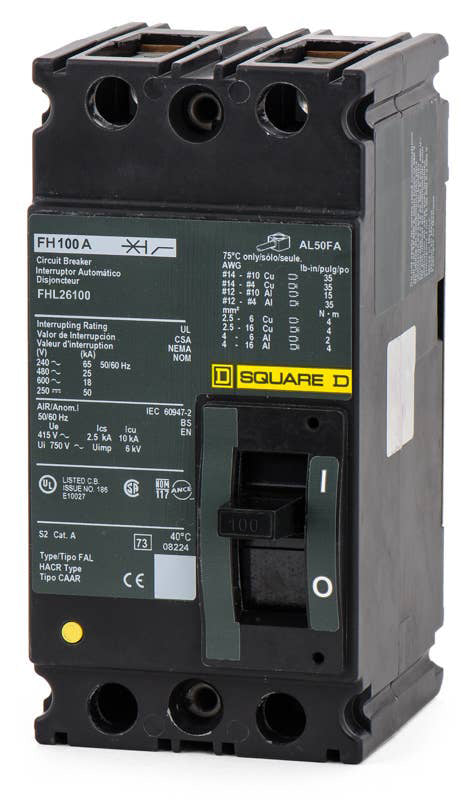

Square D FHL26100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Square D
FHL26100
Molded Case Circuit Breaker
Brand
Square D
SKU
FHL26100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHL26100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
The FHL26100 is a 2-pole, 100A molded case circuit breaker from Square D's legacy F-Frame series. Built for industrial applications, it provides reliable long-time and instantaneous (LI) thermal-magnetic protection. This unit-mount breaker features line and load lugs (denoted by the 'L' prefix) for installation into Square D switchboards. It is replaced by the modern HGL26100. With a high interrupting capacity of 25 kAIC at 480V, it safely clears severe electrical faults.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHL26100 |
| Series | FHL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, IEC 60947-2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhat types of equipment is the FHL26100 designed to fit?
This unit-mount breaker is designed for installation in Square D panelboards, switchboards, and individual enclosures that accept legacy F-frame circuit breakers.
Is the FHL26100 still manufactured, or is there a modern replacement?
The FHL26100 is part of the legacy Square D F-frame series. For new installations or upgrades, it is typically replaced by the modern PowerPact H-frame series, such as the HGL26100, which offers similar or higher interrupting ratings.
Does the FHL26100 come with lugs, and what wire sizes do they accept?
Yes, this breaker includes mechanical lugs on both the line and load sides. The lugs accept 14 to 1/0 AWG copper wire or 12 to 1/0 AWG aluminum wire.
Can I adjust the trip settings on the FHL26100?
No. This breaker features a thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions. The trip settings are factory-calibrated and cannot be adjusted in the field.
How does the FHL26100 mount into a panel?
This is a unit-mount, feed-thru circuit breaker. It secures directly to the backpan or mounting surface using screws, rather than plugging onto a busbar like I-Line breakers.
