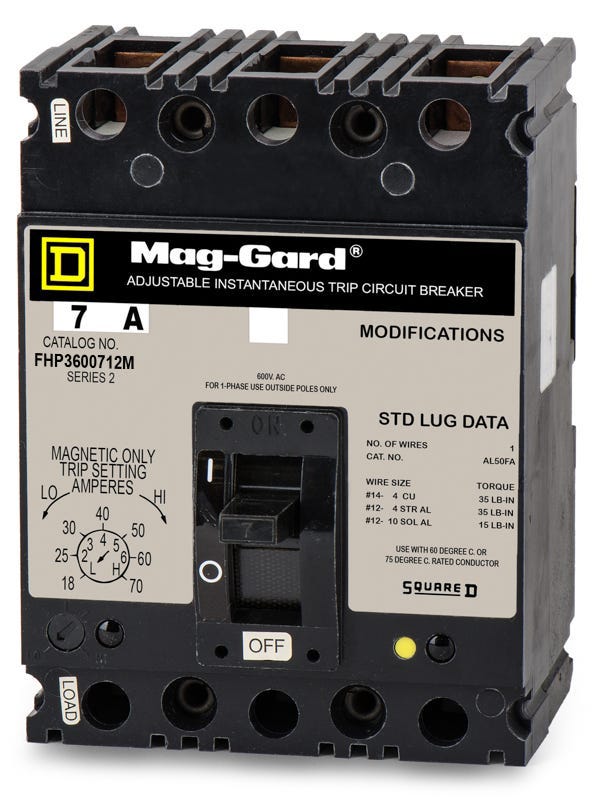

Square D FHP3600712M - 7A 3 Pole Motor Circuit Protector

Brand Square D
SKU FHP3600712M
Square D FHP3600712M 3 Pole Circuit Breaker
Free Shipping Over $99

Square D FHP3600712M - 7A 3 Pole Motor Circuit Protector

Brand Square D
SKU FHP3600712M
Select Item Condition
Earn 476 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D FHP3600712M 3 Pole Circuit Breaker

Square D FHP3600712M - 7A 3 Pole Motor Circuit Protector

Re-Certified

$476.59 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for industrial motor applications, this 7A motor circuit protector delivers reliable instantaneous-only protection. It coordinates seamlessly with Square D motor control centers and combination starters. Mounting via a secure bolt-on connection, this 3-pole unit serves as an exact replacement for older installations. For modern upgrades, it is replaced by the HJL36030M71. Featuring Mag-Gard technology, it offers an adjustable magnetic trip range of 18-70A to precisely match motor inrush.

Specifications

Brand Square D
Series FHP
Part Number FHP3600712M
Amperage 7A
Amperage Range 18-70A
Voltage 600VAC
Poles 3
Phase 3
AIC Rating 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Square D Motor Control Centers, Combination Starters
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14-4 AWG (Cu/Al)
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Motor Circuit Protector
