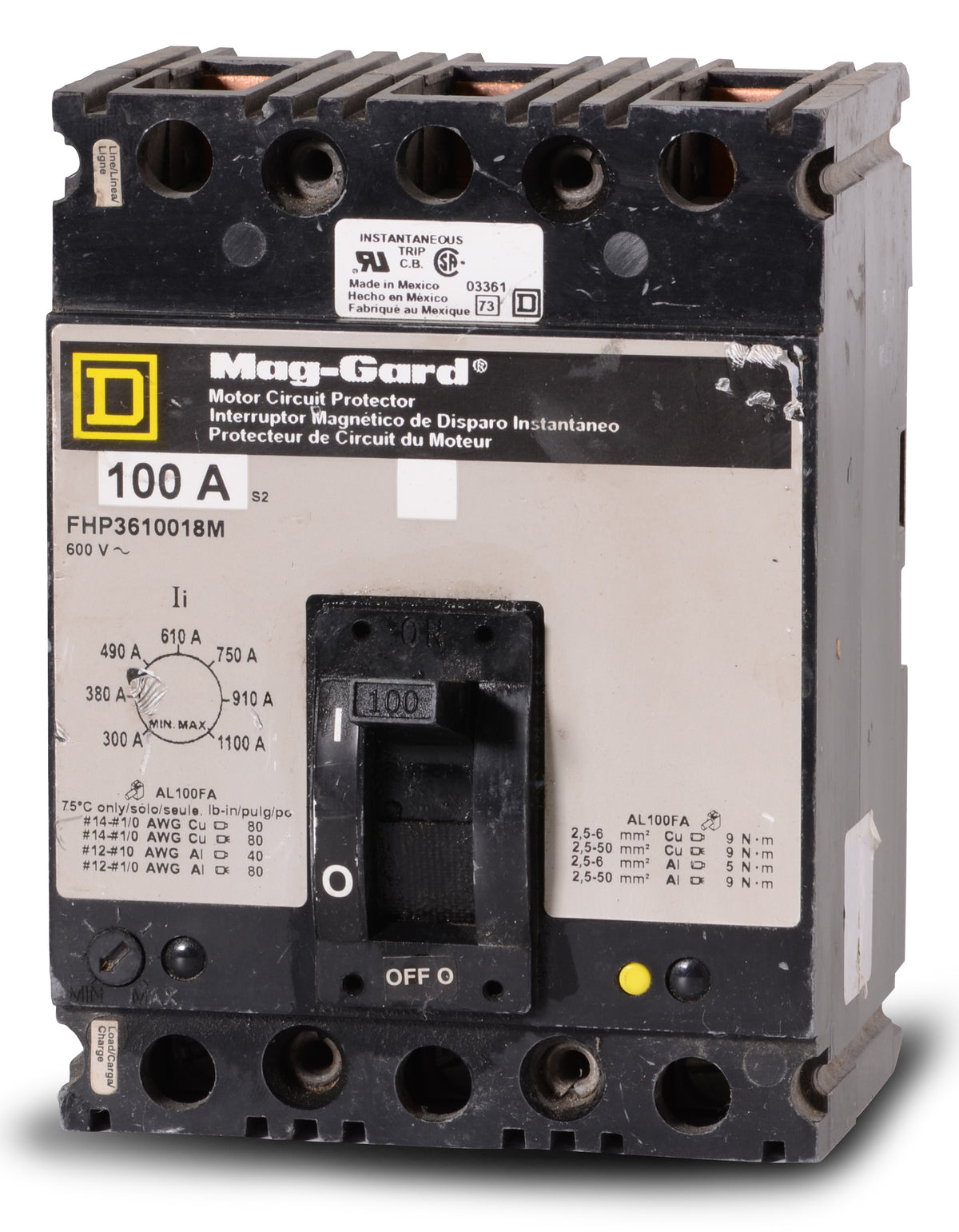

Square D FHP3610018M Motor Circuit Protector
- 100A
- 3 Pole
- Bolt-On
Square D
FHP3610018M
Motor Circuit Protector
Brand
Square D
SKU
FHP3610018M
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHP3610018M - 100A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Sold out
Quantity
Square D FHP3610018M - 100A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHP3610018M |
| Series | FHP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 300-1100A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Square D FHP3610018M - 100A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | FHP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 300-1100A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
50A 3 Pole Motor Circuit Protector
7A 3 Pole Motor Circuit Protector
100A 3 Pole Motor Circuit Protector
Description
Part of the legacy F-Frame series, this 100-amp motor circuit protector is designed specifically for short-circuit defense in industrial environments. It installs easily into Square D motor control centers and serves as a reliable replacement for FAL3610018M or FHL3610018M units. While replaced by the HJL36100M73 in modern catalogs, this bolt-on device remains essential for maintaining older systems. Users can tune the magnetic trip from 300 to 1100 amps to match specific motor profiles.Specifications
| Brand | Square D |
|---|---|
| Series | FHP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 300-1100A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
