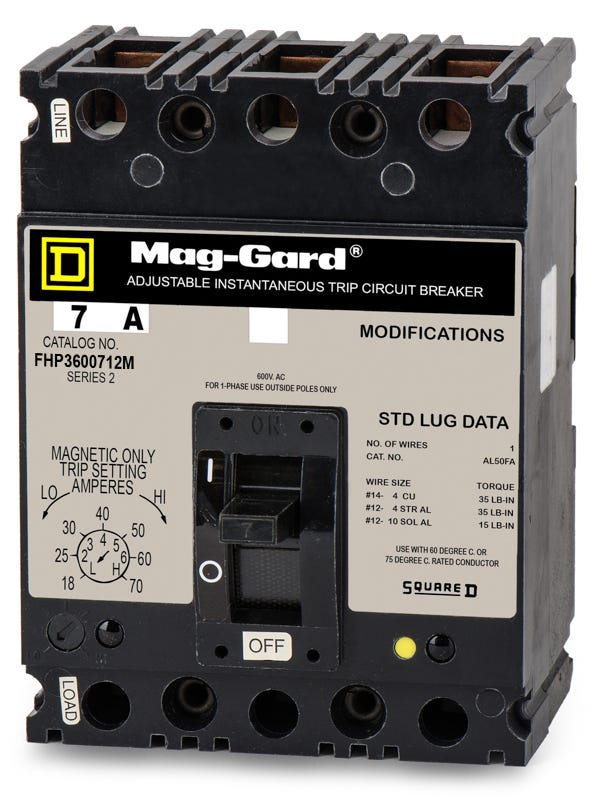

Square D FHP3600712M Motor Circuit Protector
- 7A
- 3 Pole
- Bolt-On
Square D
FHP3600712M
Motor Circuit Protector
Brand
Square D
SKU
FHP3600712M
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHP3600712M - 7A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Sold out
Quantity
Square D FHP3600712M - 7A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHP3600712M |
| Series | FHP |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 18-70A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
Quantity
Square D FHP3600712M - 7A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHP3600712M |
| Series | FHP |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 18-70A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
Similar Items
50A 3 Pole Motor Circuit Protector
100A 3 Pole Motor Circuit Protector
Description
Built for industrial motor applications, this 7A motor circuit protector delivers reliable instantaneous-only protection. It coordinates seamlessly with Square D motor control centers and combination starters. Mounting via a secure bolt-on connection, this 3-pole unit serves as an exact replacement for older installations. For modern upgrades, it is replaced by the HJL36030M71. Featuring Mag-Gard technology, it offers an adjustable magnetic trip range of 18-70A to precisely match motor inrush.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHP3600712M |
| Series | FHP |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 18-70A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
