Square D GJL36003M01 - 3A 3 Pole Motor Circuit Protector

Brand Square D
SKU GJL36003M01

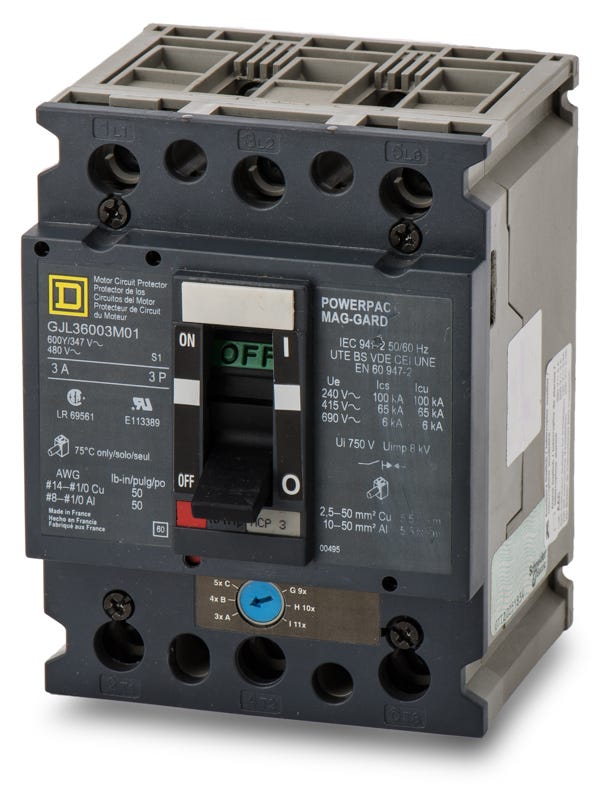

Square D GJL36003M01 3 Pole Circuit Breaker
Free Shipping Over $99

Square D GJL36003M01 - 3A 3 Pole Motor Circuit Protector

Brand Square D
SKU GJL36003M01
Select Item Condition
Earn 435 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D GJL36003M01 3 Pole Circuit Breaker

Square D GJL36003M01 - 3A 3 Pole Motor Circuit Protector

Re-Certified

$435.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the PowerPacT G-Frame series, this 3-pole motor circuit protector delivers reliable short-circuit defense for industrial applications. It installs into Square D motor control centers and combination starters to safeguard dedicated motor branches. Featuring a 3A continuous current rating and an adjustable magnetic trip range of 9-33A, it allows precise coordination with motor inrush characteristics. Note that this unit is replaced by the HJL36003M01 for future upgrades.

Specifications

Brand Square D
Series GJL
Part Number GJL36003M01-R
Amperage 3A
Amperage Range 9-33A
Voltage 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC
Poles 3
Phase 3
AIC Rating 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D Motor Control Centers, Combination Motor Starters
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14-1/0 AWG (Cu), 8-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 14 AWG (Cu), 8 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs (Line & Load)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, IEC, UL
Temp Rating 40C
Construction Features Motor Circuit Protector, High Interrupting Capacity
