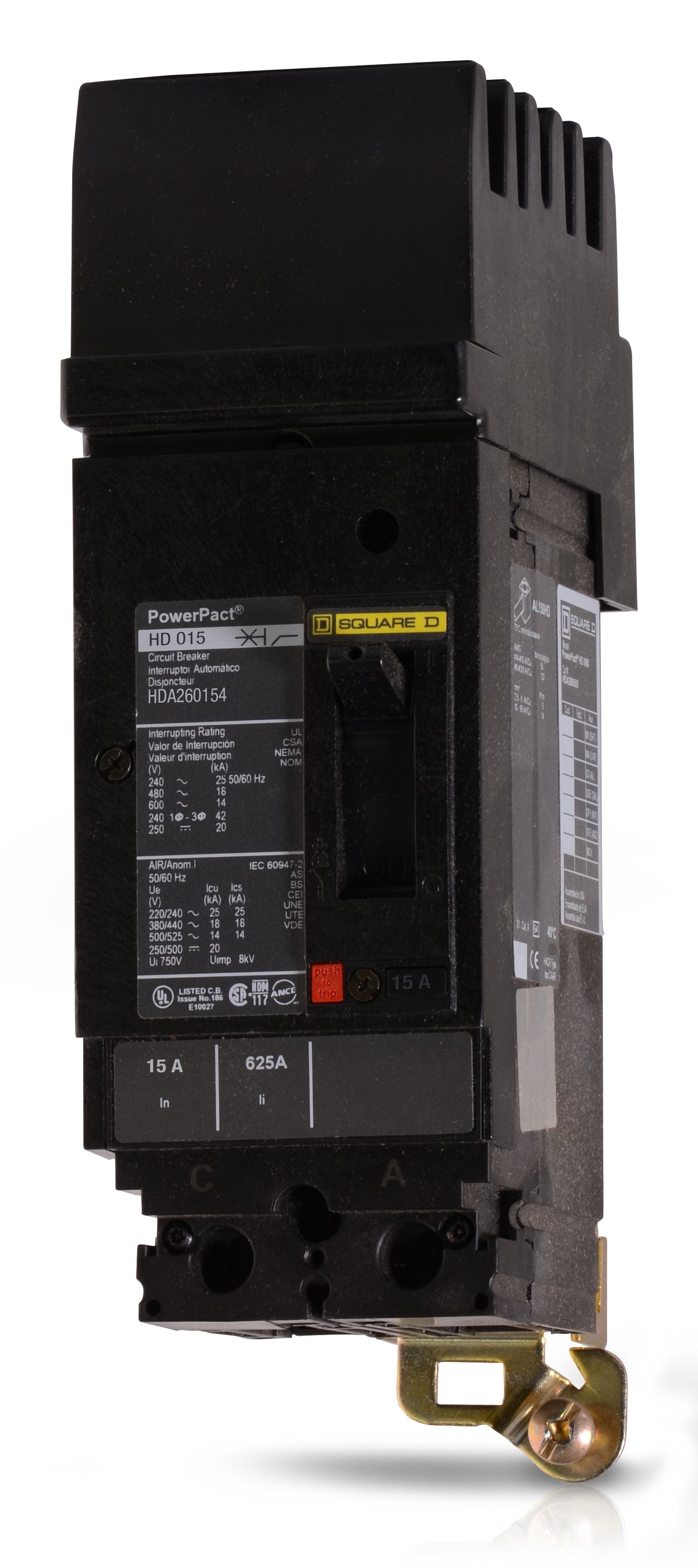

Square D HDA260154 Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
HDA260154
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA260154
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDA260154 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
Description
Offering dependable circuit protection, the Square D HDA260154 is a 15A, 2-pole molded case circuit breaker from the PowerPacT H-Frame lineup. It utilizes thermal-magnetic trip technology with long-time and instantaneous (LI) functions for industrial applications. Designed for Square D I-Line panelboards and switchboards, this unit easily replaces legacy FA26015BC breakers. It features a BC phase connection, an 18 kAIC rating at 480V, and is fully HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDA260154 |
| Series | HDA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat panelboards are compatible with the HDA260154?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It will not fit standard QO, Homeline, or NQ and NF series panels.
What does the 4 at the end of the HDA260154 catalog number indicate?
The 4 signifies a BC phase connection for the I-Line bus.
What wire sizes are accepted by the standard lugs on this breaker?
The factory-installed AL150HD mechanical lugs accept 14 AWG to 3/0 AWG aluminum or copper wire.
Can the HDA260154 replace older Square D circuit breakers?
Yes, this PowerPacT H-frame breaker is the direct replacement for legacy F-frame FA26015 I-Line circuit breakers, specifically those with a BC phase connection.
What does the D in the HDA260154 part number signify?
The D indicates the interrupting rating tier for this PowerPacT breaker, which provides 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600VAC.
How does the I-Line connection work on the HDA260154?
The breaker features a plug-on line-side connection that mounts directly onto the I-Line bus, while the load side uses traditional mechanical lugs for wire termination.
Is the HDA260154 rated for DC voltage applications?
Yes, this thermal magnetic breaker is rated for up to 250VDC with a 20kA interrupting capacity.
Does this breaker include adjustable trip settings?
No, the HDA260154 uses fixed thermal magnetic trip technology with preset long-time and instantaneous (LI) protection. It does not have adjustable electronic trip functions.
