Square D HDA261501 Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
HDA261501
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA261501
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

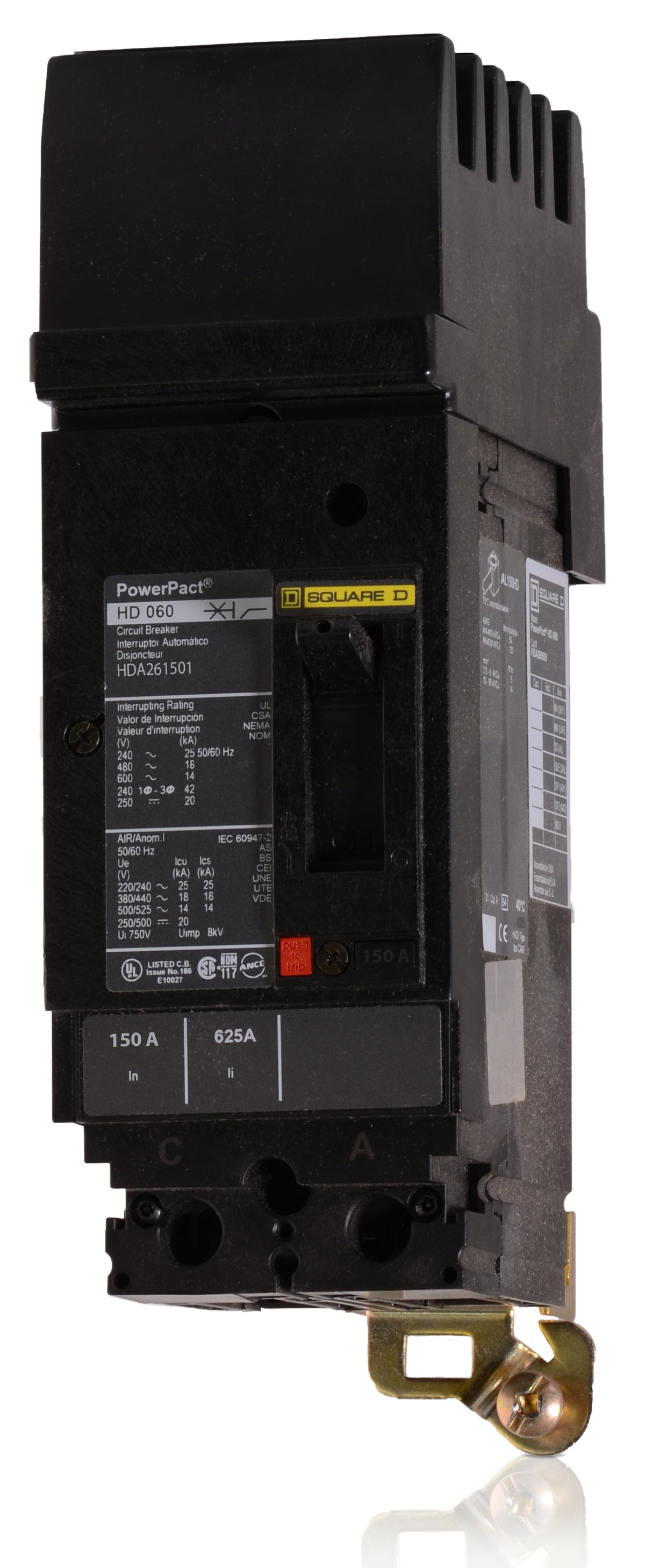

Square D HDA261501 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HDA261501 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HDA261501 |
| Series | HDA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Phase Connection AB |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Phase Connection AB, 80% Rated |
Quantity
Square D HDA261501 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HDA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Phase Connection AB |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Phase Connection AB, 80% Rated |
Similar Items
125A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Part of the Square D PowerPacT family, the HDA261501 is a 2-pole, 150A molded case circuit breaker built for commercial and industrial applications. It handles up to 600VAC and 250VDC. Featuring an I-Line plug-on design, it mounts into compatible Square D panelboards and switchboards. This unit acts as a reliable upgrade for discontinued KA26150 and KA26150AB breakers. The breaker utilizes a thermal-magnetic trip unit with an AB phase connection, delivering an 18kAIC rating at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDA261501 |
| Series | HDA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Phase Connection AB |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Phase Connection AB, 80% Rated |
Product FAQs
6 answersWhat panelboards are compatible with the HDA261501?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It will not fit in standard QO, NQ, or NF series panels.
Can I use this PowerPacT H-frame breaker in an older I-Line panel?
Yes. Schneider Electric has confirmed that PowerPacT H-frame I-Line breakers are backward compatible with existing and older Square D I-Line panelboards and switchboards, provided the voltage and AIC ratings meet your system requirements.
Which legacy Square D breakers does the HDA261501 replace?
The HDA261501 is the direct PowerPacT replacement for discontinued 150A, 2-pole FA, FH, and KA series I-Line breakers, including catalog numbers like KA26150 and KA26150AB.
What does the 1 at the end of the HDA261501 catalog number signify?
The 1 indicates an AB phase connection for the I-Line bus. The breaker will draw power from the A and B phases of the panelboard.
What is the recommended tightening torque for the load side lugs?
The standard AL150HD mechanical lugs require a tightening torque of 44.25 lb-in (5 N.m) for 14 AWG to 3/0 AWG aluminum or copper wire.
How does the I-Line connection work on this breaker?
The breaker features plug-on I-Line jaws on the line side that snap directly onto the panelboard bus, while the load side uses standard mechanical lugs for wire termination.
