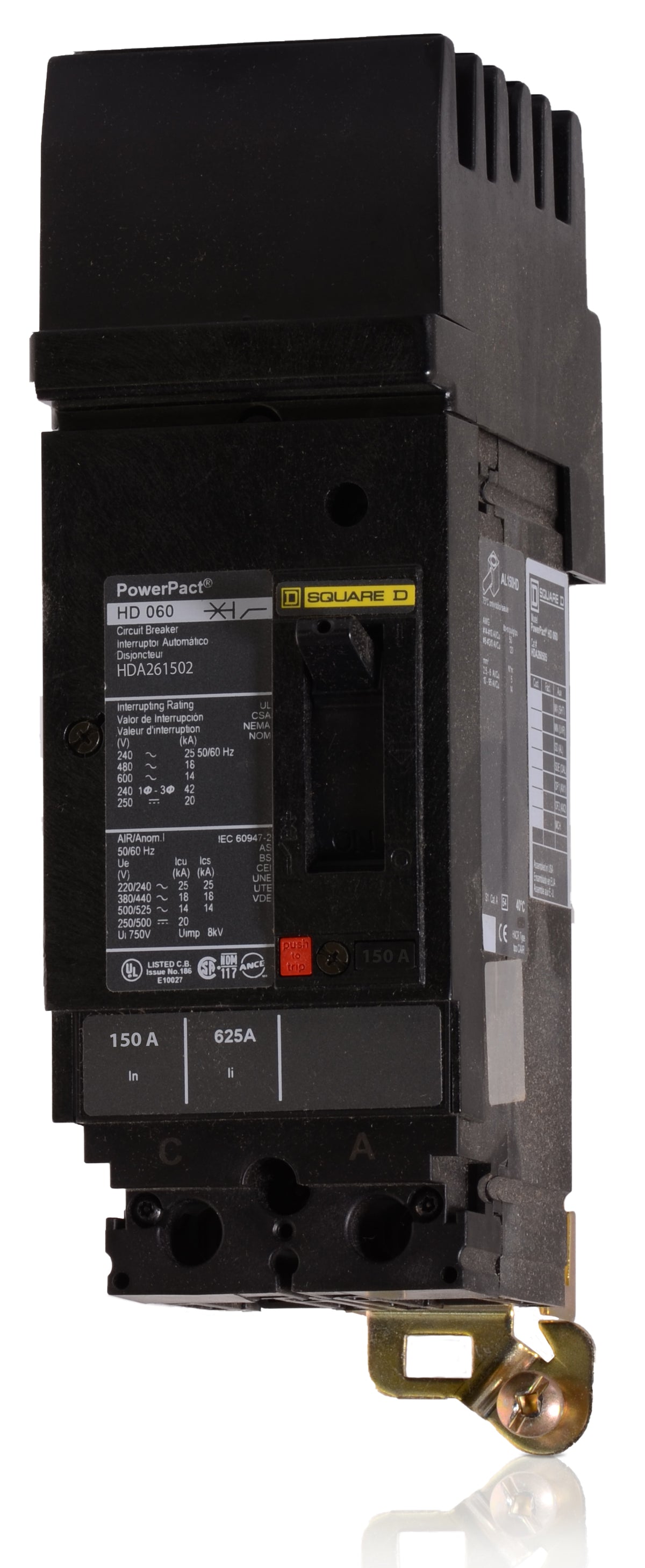

Square D HDA261502 Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
HDA261502
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA261502
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDA261502 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the PowerPacT H-Frame family, this 150A molded case circuit breaker delivers robust thermal-magnetic protection for industrial facilities. It features an AC phase connection for balanced load distribution. Installation into Square D I-Line panelboards and switchboards is streamlined via the plug-on mounting design. Rated to interrupt 18 kAIC at 480VAC, it includes Visi-Trip visual indication for rapid fault identification and current-limiting capabilities.Specifications
| Brand | Square D |
|---|---|
| Series | HDA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat type of panelboards are compatible with the HDA261502 circuit breaker?
This breaker is designed for use in Square D I-Line panelboards and switchboards. It features an I-Line plug-on connection for the line side and lugs for the load side.
What is the phase connection for the HDA261502?
The 2 at the end of the HDA261502 catalog number indicates an AC phase connection on the I-Line bus.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the HDA261502 features a factory-sealed, fixed thermal-magnetic trip unit. The thermal protection is fixed at 150A, and the magnetic protection is fixed with a 900A hold current and a 1700A trip current.
Is the HDA261502 rated for 100 percent continuous current?
No, this breaker has a standard 80 percent continuous current rating.
What does the D in the HDA261502 catalog number signify?
The D indicates the breaking capacity code, which provides an interrupting rating of 18kA at 480V AC. Higher interrupting ratings are available in the HGA or HJA series.
Can the HDA261502 be reverse fed?
Yes, this PowerPact H-frame circuit breaker is suitable for reverse fed applications.
Does the HDA261502 have an interchangeable trip unit?
No, this specific breaker comes with a factory-sealed, non-interchangeable thermal-magnetic trip unit.
What is the standard load-side lug kit for the HDA261502?
The standard mechanical lug kit for this 150A H-frame breaker is the AL150HD, which accepts 14 AWG to 3/0 AWG aluminum or copper wire.
