Square D HDA36150U31X Circuit Breaker
- 150
- 3 Pole
- I-Line
Square D
HDA36150U31X
Circuit Breaker
Brand
Square D
SKU
HDA36150U31X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

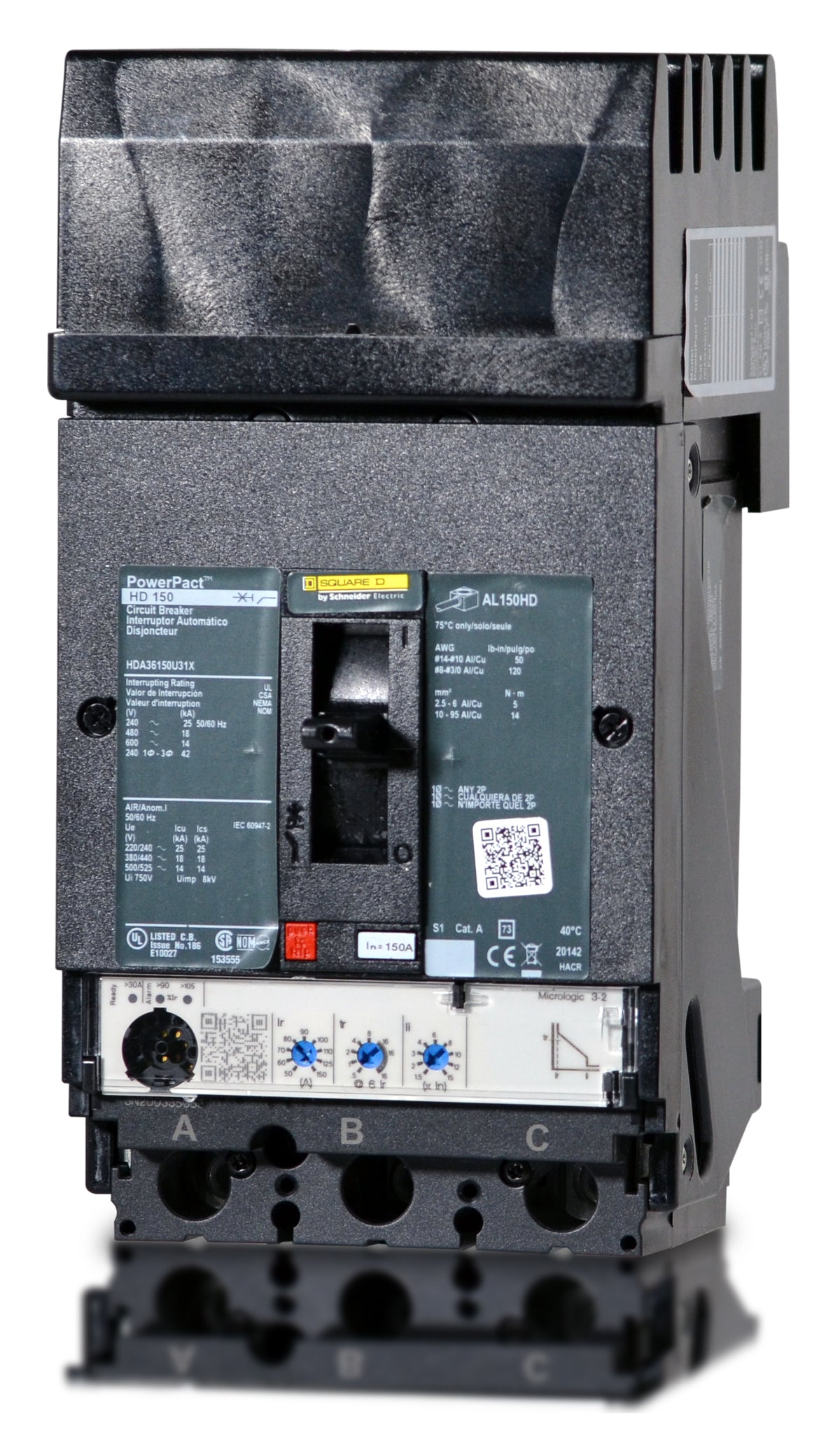

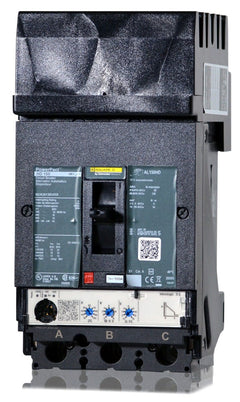

Square D HDA36150U31X 3 Pole Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D HDA36150U31X 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HDA36150U31X |
| Series | PowerPacT H |
| Amperage | 150 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 60-150A |
|---|
| Frame Type | HDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | AWG 14 to AWG 3/0, Aluminum/Copper |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, True RMS Sensing, Phase Connection ABC |
Quantity
Square D HDA36150U31X 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | PowerPacT H |
| Amperage | 150 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 60-150A |
|---|
| Frame Type | HDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | AWG 14 to AWG 3/0, Aluminum/Copper |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, True RMS Sensing, Phase Connection ABC |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Square D HDA36150U31X 3 Pole Circuit Breaker
The Square D HDA36150U31X is a 3 Pole solid state molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600VAC. It has an interrupting rating of 18kAIC at 480VAC. The HDA36150U31X has an I-Line style plug-in connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Series | PowerPacT H |
| Amperage | 150 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 60-150A |
|---|
| Frame Type | HDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | AWG 14 to AWG 3/0, Aluminum/Copper |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, True RMS Sensing, Phase Connection ABC |
Product FAQs
5 answersWhat type of panels accept the HDA36150U31X circuit breaker?
This breaker is specifically designed for Square D I-Line panelboards and switchboards. It utilizes a plug-on line connection that mounts directly to the interior bus system, eliminating the need for separate line-side wiring.
What does the U31X suffix mean on the HDA36150U31X?
The U31X designates that the breaker is equipped with a Micrologic 3.2 electronic trip unit. This solid-state unit provides adjustable Long-Time and Instantaneous (LI) trip functions for precise circuit protection.
What wire sizes are supported by the load lugs on this 150A breaker?
The factory-installed load lugs accept either aluminum or copper conductors ranging from 14 AWG to 3/0 AWG. Ensure proper torque specifications are followed during installation.
How do the I-Line connectors on the HDA36150U31X react during a fault?
Square D I-Line breakers feature unique blow-on type line-side connectors. In the event of a short circuit, the increased magnetic flux forces the plug-on connectors to grip the panelboard busbars tighter, maintaining a secure connection when it matters most.
Can the I-Line mounting bracket be removed to use this breaker as a unit-mount?
No. The I-Line connectors and mounting bracket are integral, factory-assembled parts of the HDA36150U31X and cannot be removed or converted for unit-mount applications.
