Square D HDP36020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Square D
HDP36020
Molded Case Circuit Breaker
Brand
Square D
SKU
HDP36020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

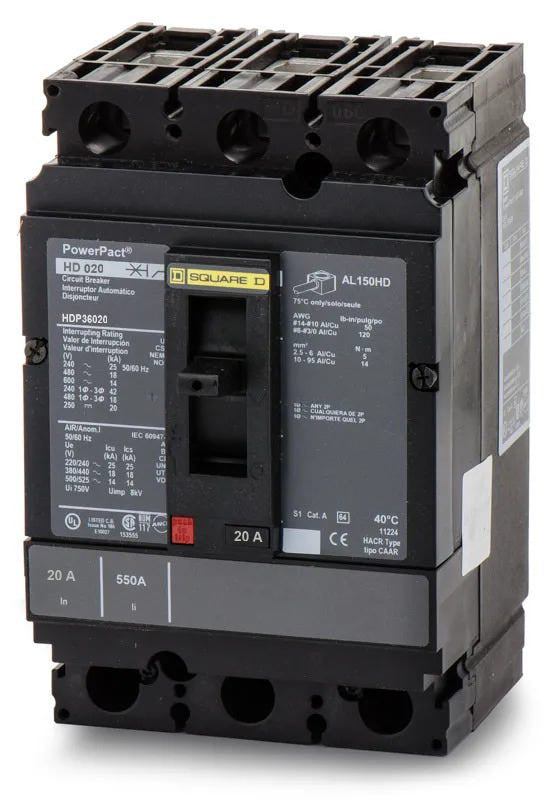

Square D HDP36020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
3 Pole Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the robust PowerPacT H-Frame family, this 20-amp, three-pole molded case circuit breaker provides essential long-time and instantaneous (LI) protection. It is specifically designed for commercial and industrial applications requiring dependable power distribution. The unit-mount configuration installs seamlessly into standard industrial control panels and switchboards. With a D-interrupting rating of 18kA at 480VAC, it ensures robust fault clearing capabilities across diverse loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDP36020 |
| Series | HDP |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None (Standard Configuration) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated, Reverse Feed |
Product FAQs
8 answersWhat does the "D" in the HDP36020 catalog number signify?
The "D" indicates the interrupting rating of the breaker, which provides 18kA of fault clearing capacity at 480VAC.
Can the HDP36020 be installed in a Square D I-Line panelboard?
No. The HDP36020 is a unit-mount, bolt-on circuit breaker. For I-Line panelboard installations, an HDA or similar I-Line configured breaker is required.
What replacement lug kit is compatible with the HDP36020?
This breaker uses the AL150HD mechanical lug kit, which accepts 14 to 3/0 AWG aluminum or copper conductors.
What does the "LI" trip function code mean on this breaker?
The "LI" designation means the thermal-magnetic trip unit provides Long-Time (L) protection for overloads and Instantaneous (I) protection for short circuits.
How can I manually test the mechanical trip linkage on this breaker?
PowerPacT H-Frame breakers feature an integral push-to-trip button on the front cover. Pressing this button manually trips the breaker to verify the internal operating mechanism is functioning correctly.
How do I properly reset the HDP36020 after a fault trip?
When the breaker trips, the handle moves to a center position to provide visual indication. To reset the breaker, push the handle to the extreme "OFF" position to re-latch the mechanism, then push it to the "ON" position.
What type of equipment is the HDP36020 designed for?
The unit-mount design and 600VAC rating make the HDP36020 suitable for industrial control panels, switchboards, and custom power distribution equipment that accommodate H-Frame breakers.
How does the HDP36020 limit peak current during a short circuit?
PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts. This design rapidly repels the contacts during a fault, extinguishing the arc early and reducing the amount of peak let-through current.
