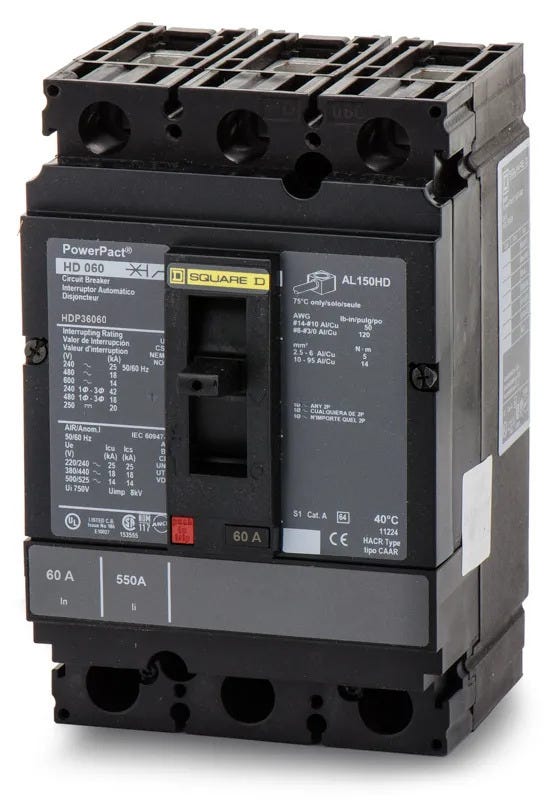

Square D HDP36060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Square D
HDP36060
Molded Case Circuit Breaker
Brand
Square D
SKU
HDP36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDP36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HDP36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HDP36060 |
| Series | HDP |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated, Reverse Feed |
Quantity
Square D HDP36060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HDP |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated, Reverse Feed |
Similar Items
3 Pole Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the HDP36060 is a 60A, 3-pole molded case circuit breaker designed by Square D. It provides robust thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This unit mount breaker installs into industrial control panels and switchboards. It features standard line and load side lugs, accepting 14-3/0 AWG wire. Rated for 14kAIC at 600VAC, it is HACR rated, current limiting, and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDP36060 |
| Series | HDP |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated, Reverse Feed |
Product FAQs
7 answersWhat type of mounting does the Square D HDP36060 require?
The HDP36060 is a unit-mount, bolt-on circuit breaker. It features lugs on both the line and load sides, making it suitable for industrial control panels, switchboards, and standalone enclosures. It cannot be used in I-Line panelboards.
What replacement lug kit is used for the HDP36060 breaker?
The standard replacement mechanical lug kit is catalog number AL150HD. These lugs accept 14 AWG to 3/0 AWG aluminum or copper wire.
Are copper-only lugs available for this 60A H-Frame breaker?
Yes. If your installation requires copper-only connections, you can use the CU150HD mechanical lug kit. The CU150HD accommodates 14 AWG to 2/0 AWG copper wire.
What do the letters in the HDP36060 catalog number mean?
"HD" indicates a PowerPacT H-Frame breaker with a D-class interrupting rating. The "P" designates it as a unit-mount breaker with lugs on both ends. The "36060" specifies a 3-pole, 600VAC maximum, 60A breaker.
Can the HDP36060 be used in DC control circuits?
Yes, this breaker is rated for use in direct current applications up to 250VDC, where it provides a 20kA interrupting rating.
How does the HDP36060 differ from the HDA36060?
The HDP36060 is a unit-mount breaker with lugs on both the line and load sides. The HDA36060 is an I-Line breaker that features a plug-on bracket on the line side for use exclusively in Square D I-Line panelboards and switchboards.
Does the HDP36060 include a push-to-trip feature?
Yes, all PowerPacT H-Frame circuit breakers include an integral push-to-trip button on the front cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the trip mechanism.
