Square D HDP36125 Circuit Breaker
- 125
- 3 Pole
- Unit
Square D
HDP36125
Circuit Breaker
Brand
Square D
SKU
HDP36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDP36125 3 Pole Circuit Breaker
New
Quantity
Sold out
Quantity
Square D HDP36125 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HDP36125 |
| Series | PowerPacT H |
| Amperage | 125 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 25kAIC at 240VAC |
| Frame Type | HDP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | AWG 14 to AWG 3/0, Al/Cu |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None included |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated, Reverse Feed |
Quantity
Square D HDP36125 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | PowerPacT H |
| Amperage | 125 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 25kAIC at 240VAC |
| Frame Type | HDP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | AWG 14 to AWG 3/0, Al/Cu |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None included |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated, Reverse Feed |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description

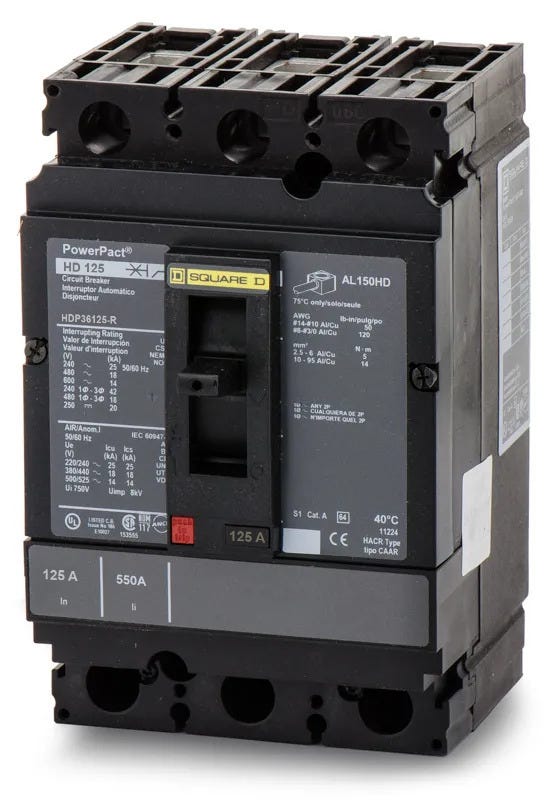

Square D HDP36125 3 Pole Circuit Breaker
The Square D HDP36125 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 600VAC. It has an interrupting rating of 25kAIC at 240VAC. The HDP36125 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Series | PowerPacT H |
| Amperage | 125 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 25kAIC at 240VAC |
| Frame Type | HDP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | AWG 14 to AWG 3/0, Al/Cu |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None included |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated, Reverse Feed |
Product FAQs
6 answersWhat are the interrupting ratings for the HDP36125 circuit breaker at 480V and 600V?
The HDP36125 features a D-class interrupting rating. It provides 25 kAIC at 240V AC, 18 kAIC at 480V AC, and 14 kAIC at 600V AC.
What wire sizes and torque specifications apply to the standard lugs on the HDP36125?
The factory-installed AL150HD mechanical lugs accept 14 AWG to 3/0 AWG aluminum or copper conductors. Torque the terminals to 44.3 lb-in (5 N.m) for 14 to 10 AWG wire, and 124 lb-in (14 N.m) for 8 to 3/0 AWG wire.
How is the Square D HDP36125 mounted in an electrical enclosure?
This is a unit-mount, bolt-on circuit breaker. It is designed to be bolted directly to the backplate or mounting pan of industrial control panels and switchboards, unlike I-Line variants which plug directly onto a busbar.
What is the replacement lug kit catalog number for this breaker?
The standard replacement mechanical lug kit for the HDP36125 is catalog number AL150HD. This kit includes three lugs and can be used on either the line or load side of the breaker.
What type of trip unit is equipped on the HDP36125?
This breaker is equipped with a thermal-magnetic trip unit. It features a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection.
What accessories are compatible with the HDP36125?
As a PowerPacT H-frame circuit breaker, it accepts standard H-frame internal and external accessories, including shunt trips, auxiliary switches, undervoltage releases, and rotary handle mechanisms.
