Square D HEPD80 Surge Protection Device

Brand Square D
SKU HEPD80
Square D HEPD80 Surge Protection Device
Free Shipping Over $99
Square D HEPD80 Surge Protection Device

Square D HEPD80 Surge Protection Device

Brand Square D
SKU HEPD80
Select Item Condition
Earn 170 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D HEPD80 Surge Protection Device

Square D HEPD80 Surge Protection Device

New

$170.80 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

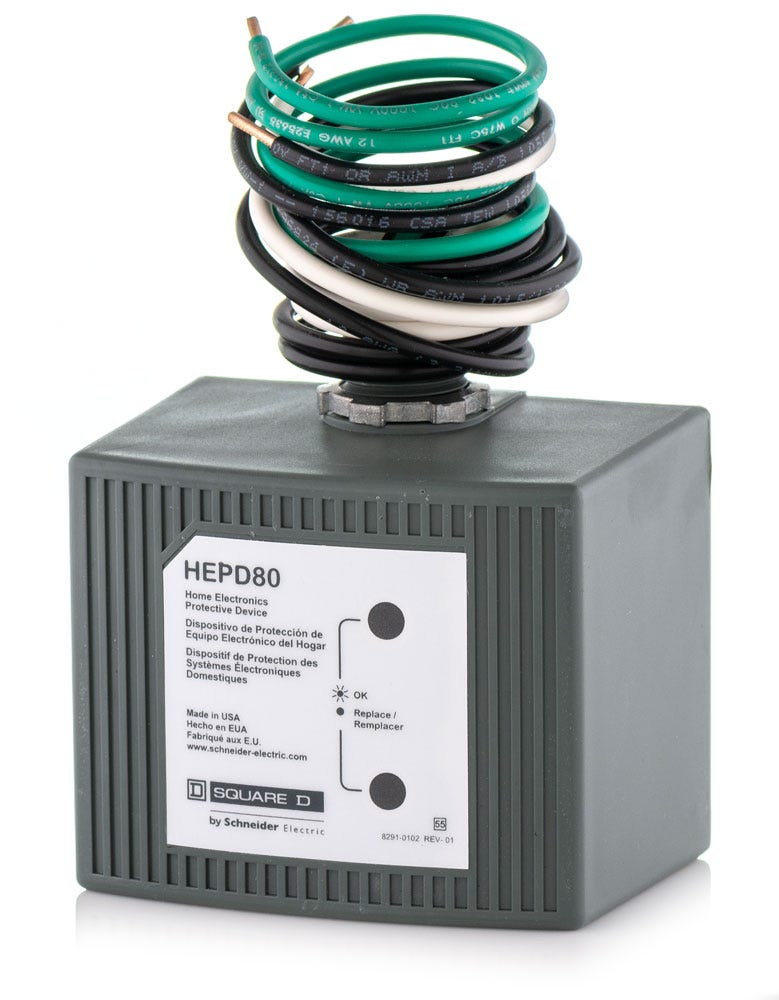

Square D HEPD80 Surge Protection Device

The Square D HEPD80 2 Pole Surge Protector is designed for industrial applications and can be used for suppressing the unexpected surge from exposed panels. It manages thermal effects from deteriorating Mechanism Operated Cell (MOC) and keeps appliances safe from damaging surges. In case the suppressor integrated into this device needs to be replaced an audible alarm is provided for signaling the need for a change. It comes with the mounting hardware and has a plastic enclosure that offers insulation for added safety. This surge protector can be used with or without an OPCD (Overcurrent Protection Device). The HEPD80 has a voltage rating of 120/240 VAC. It has the following dimensions: Length 3.60" Width 3.00" and Depth 3.75".

Specifications

Brand Square D
Voltage 120/240 VAC
Poles 2
Phase 1
Mounting Type Panelboard
Length (in) 3.6
Width (in) 3
Height (in) 3.75
Wire Gauge 12 AWG
Standards cULus Listed per UL 1449 3rd Edition, CSAC22.2 No. 8-M1986, C233.1-87
Voltage Protection Rating 600V (L-N), 700V (L-G), 1000V (L-L, N-G)
Enclosure Material Plastic
Upc 785901008729
Gtin 785901008729
