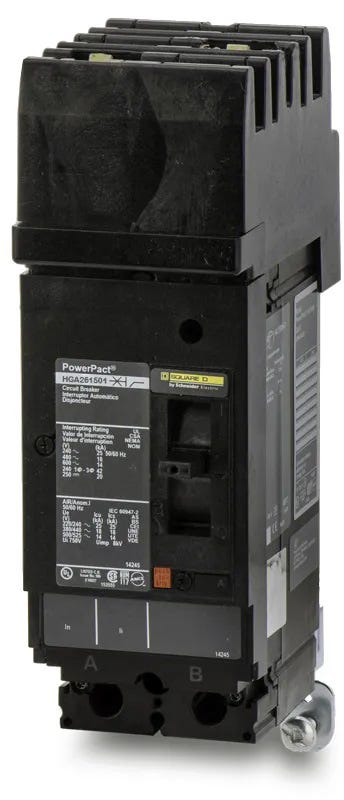

Square D HGA261501 Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
HGA261501
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA261501
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA261501 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D HGA261501 is a 2-pole, 150A PowerPacT H-Frame MCCB. It delivers reliable overcurrent protection with a thermal-magnetic trip unit featuring long-time and instantaneous (LI) functions. This unit mounts into Square D I-Line panelboards. The "1" suffix indicates a dedicated AB phase connection. It replaces legacy KA26150AB and KH26150AB breakers. Rated for 35kA at 480VAC, it includes load-side lugs and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA261501 |
| Series | HGA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, 80% Rated |
Product FAQs
6 answersWhat phase connection does the HGA261501 use in I-Line panelboards?
The "1" suffix in the catalog number indicates a dedicated AB phase connection. It is designed exclusively for plug-in mounting on the A and B phases of Square D I-Line panelboards and switchboards.
Which legacy Square D breaker does the HGA261501 replace?
This PowerPacT H-frame breaker serves as a direct replacement for the older KA26150AB 2-pole, 150A I-Line circuit breaker.
How is the HGA261501 wired and mounted?
The line side features a plug-in jaw connection that mounts directly onto the I-Line bus. The load side includes factory-installed lugs that accept 14 AWG to 3/0 AWG copper or aluminum wire.
Can this breaker be used in DC power systems?
Yes, the HGA261501 is rated for DC applications up to 250VDC, delivering a 20kA interrupting rating for DC circuits.
What does the LI trip function indicate on the HGA261501?
The LI code means the breaker provides Long-Time (L) and Instantaneous (I) protection. It uses a thermal-magnetic trip unit with a fixed thermal element for overloads and an adjustable magnetic element for short circuits.
Does this breaker require a separate mounting bracket for installation?
No, the HGA261501 features an integrated I-Line plug-in design. It mounts directly to the busbars of a Square D I-Line panelboard or switchboard without the need for additional mounting hardware.
