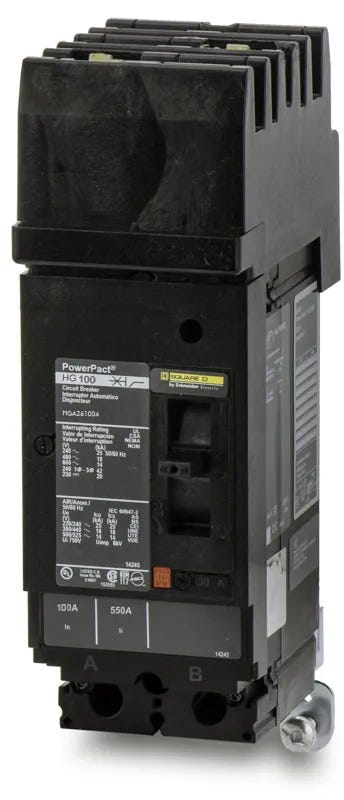

Square D HGA261004 Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
HGA261004
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA261004
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA261004 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker

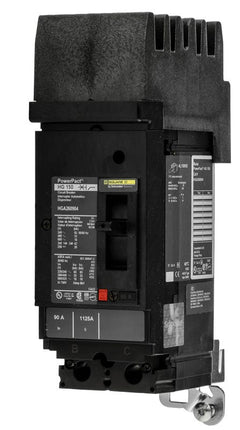

90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent defense, the Square D HGA261004 is a 100A, 2-pole molded case circuit breaker. It is part of the widely used PowerPacT H-Frame family, tailored for demanding commercial and industrial environments. Configured with a BC phase connection, this unit plugs into Square D I-Line panelboards and switchboards. Facility managers can use it to seamlessly replace discontinued FA26100BC and FH26100BC models.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA261004 |
| Series | HGA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Visual Trip Indicator |
Product FAQs
9 answersWhat does the 4 at the end of the HGA261004 catalog number indicate?
The 4 suffix indicates a factory-configured BC phase connection. This 2-pole breaker is designed to plug specifically into the B and C phases on the busbar of a Square D I-Line panelboard.
Why does the HGA261004 specify a BC phase connection?
In a 3-phase I-Line panelboard, a 2-pole breaker only connects to two of the three busbars. The BC configuration ensures the breaker draws power specifically from the B and C phases, which is critical for balancing electrical loads across the panel.
Which panelboards are compatible with the HGA261004 circuit breaker?
This PowerPacT H-frame breaker features an I-Line plug-on design, making it compatible exclusively with Square D I-Line panelboards and switchboards. It cannot be installed in standard NQ or NF load centers.
What does the G in the HGA261004 part number represent?
The G indicates the interrupting rating tier for this PowerPacT H-frame breaker. It signifies a short-circuit current rating of 65kAIC at 240VAC, 35kAIC at 480VAC, and 18kAIC at 600VAC.
Can the HGA261004 be used in DC voltage applications?
Yes, this thermal-magnetic breaker is rated for use in DC systems up to 250VDC, where it provides a 20kA interrupting capacity for industrial control and battery circuits.
How does the HGA261004 mount into the panel?
It utilizes the Square D I-Line plug-on mounting system. The line side plugs directly into the panelboard bus assembly, while the load side uses traditional mechanical lugs for wire termination.
What wire sizes are accepted by the load-side lugs on the HGA261004?
The factory-installed AL150HD lugs accept aluminum or copper conductors ranging from 14 AWG to 3/0 AWG.
Can the HGA261004 replace older Square D FA or FH series breakers?
Yes, the PowerPacT H-frame I-Line breakers are the direct modern replacements for discontinued 100A FA and FH series I-Line breakers, such as the FA26100BC or FH26100BC. They fit into the exact same panelboard space without requiring busbar modifications.
Is the trip unit on the HGA261004 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit with Long-Time and Instantaneous functions. The instantaneous magnetic trip is factory-set with a hold current of 900A and a trip current of 1700A.
