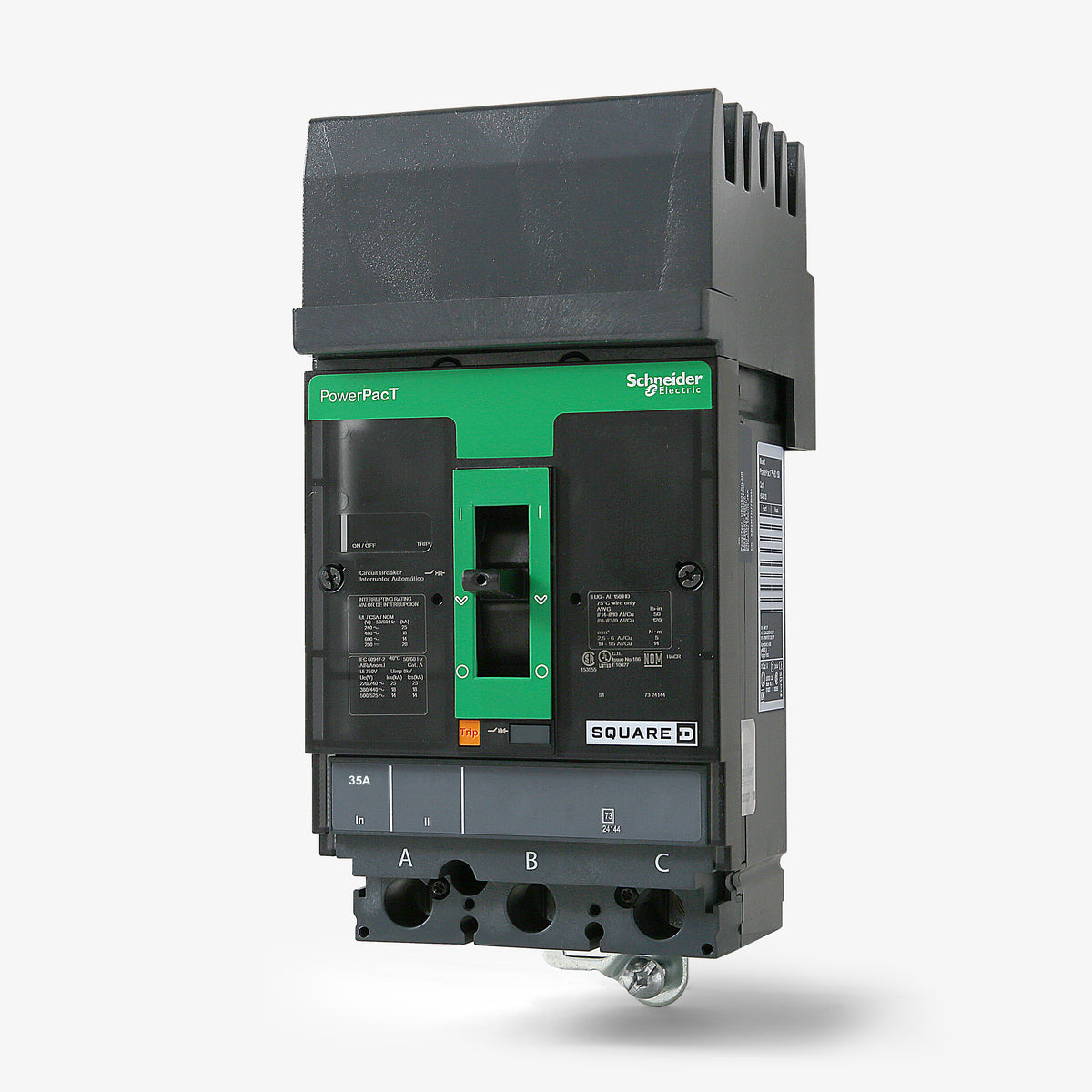

Square D HGA36035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- I-Line
Square D
HGA36035
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA36035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA36035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA36035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36035 |
| Series | HGA |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, Non-Interchangeable Trip |
Quantity
Square D HGA36035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36035 |
| Series | HGA |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for precise electrical safety, this 35A molded case circuit breaker incorporates fixed thermal and adjustable magnetic trip functions. It is a core component of the PowerPacT H-Frame lineup for commercial use. Installation is streamlined thanks to the I-Line mounting configuration, which fits perfectly into Square D panelboards. It acts as an upgrade path for aging FA36035 and FH36035 breakers. Boasting a 65kAIC rating at 240V, the unit provides excellent fault current limitation.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36035 |
| Series | HGA |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, Non-Interchangeable Trip |
Product FAQs
8 answersWhat panels are compatible with the HGA36035?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It utilizes a specialized plug-in mounting style that connects directly to the I-Line bus stack.
Can I install the HGA36035 in a standard NQ or NF panelboard?
No, the HGA36035 features an I-Line plug-in connection and will not fit in NQ, NF, or QO series panelboards. It must be installed in an I-Line specific enclosure.
How does the I-Line mounting system work for this breaker?
The I-Line design allows the breaker to snap directly onto the panel's bus stack using plug-in jaws. This eliminates the need to manually bolt the breaker to the busbars, significantly speeding up installation and replacement.
Is the trip unit on the HGA36035 adjustable?
Yes, partially. It features a thermal-magnetic trip unit with fixed thermal protection for long-time overloads, and an adjustable magnetic protection setting to fine-tune the instantaneous short-circuit response.
What does the "G" in the HGA36035 part number indicate?
In the Square D PowerPacT H-frame nomenclature, the "G" indicates the interrupting rating tier. For this specific breaker, the G-rating signifies an interrupting capacity of 35kA at 480VAC and 65kA at 240VAC.
What is the difference between the HGA36035 and the HDA36035?
The difference lies in the interrupting capacity. The HGA36035 has a "G" rating (35kA at 480V), while the HDA36035 has a lower "D" rating (18kA at 480V). Both share the same 35A rating, 3-pole configuration, and I-Line mounting.

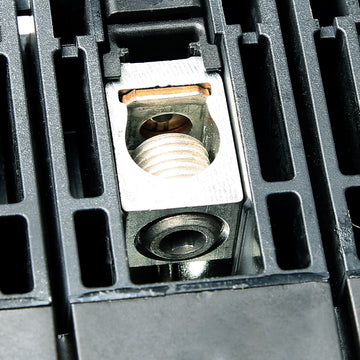

What wire sizes are accepted by the standard lugs on this breaker?
The factory-installed lugs on the HGA36035 accept wire gauges ranging from 14 AWG up to 3/0 AWG. The terminals are rated for use with both aluminum and copper conductors.
Can the HGA36035 be used in direct current (DC) systems?
Yes, this breaker is rated for DC applications. It provides an interrupting capacity of 20kA at both 250VDC and 500VDC.
