Square D HGA36150SA Molded Case Circuit Breaker
- 150A
- 3 Pole
- I-Line
Square D
HGA36150SA
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA36150SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

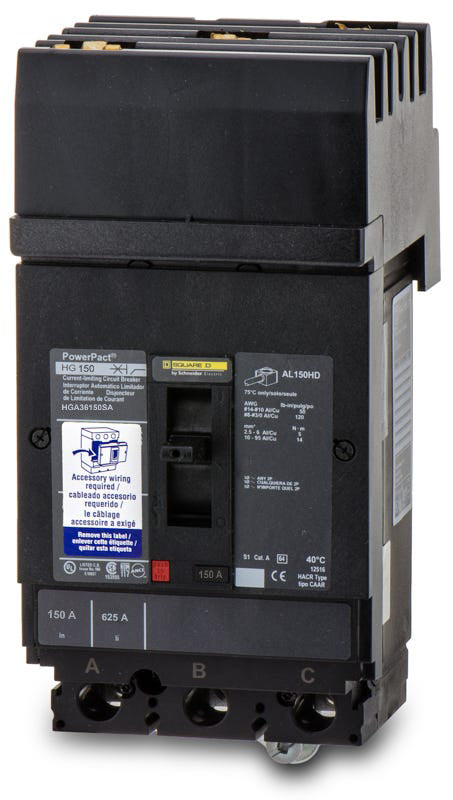

Square D HGA36150SA - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D HGA36150SA is a 3-pole, 150A molded case circuit breaker from the PowerPacT H-Frame family. It provides reliable thermal-magnetic protection for heavy-duty electrical systems. This plug-on breaker installs into Square D I-Line panelboards and switchboards. It serves as a direct replacement for legacy KA36150 breakers when a shunt trip is required. Rated at 35kAIC at 480VAC, it includes a factory-installed shunt trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36150SA |
| Series | HGA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included, I-Line Bracket (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersWhat does the "SA" suffix indicate on the HGA36150SA catalog number?
The "SA" suffix designates that this PowerPacT H-frame breaker comes with a factory-installed 120VAC shunt trip, allowing the breaker to be tripped remotely.
Which legacy Square D breakers does the HGA36150SA replace?
This breaker serves as the modern, direct replacement for legacy KA-frame breakers, specifically the KA36150, in applications that require a 120VAC shunt trip. It uses the same I-Line plug-on mounting footprint.
Can I adjust the trip settings on the HGA36150SA?
Yes, while the thermal (long-time) protection is fixed at 150 amps, the magnetic (instantaneous) trip function is adjustable to help coordinate with other protective devices in your system.
What type of panelboard is required for the HGA36150SA?
This breaker features an I-Line style plug-in connection, meaning it is exclusively compatible with Square D I-Line panelboards and switchboards. It cannot be used in standard load centers or unit-mount applications.
What does the "LI" trip function code mean on this breaker?
The "LI" designation indicates that the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection.
Are the lugs on the HGA36150SA rated for both copper and aluminum wire?
Yes, the factory-installed lugs are dual-rated for both aluminum and copper conductors, accepting wire sizes from 14 AWG up to 3/0 AWG.
